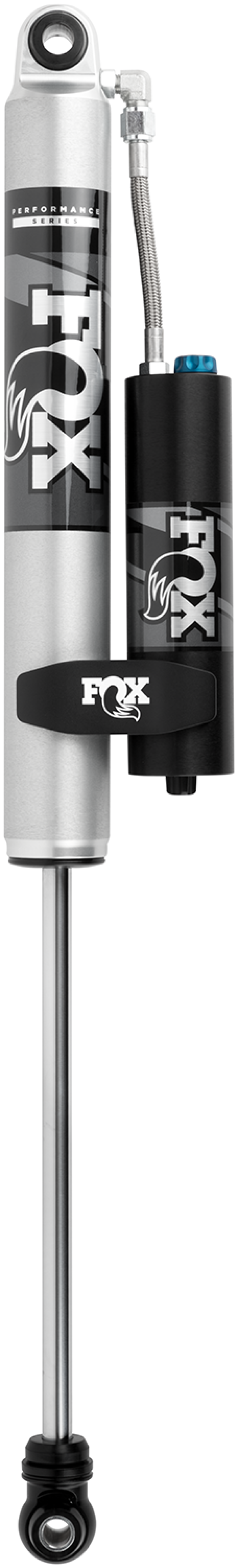

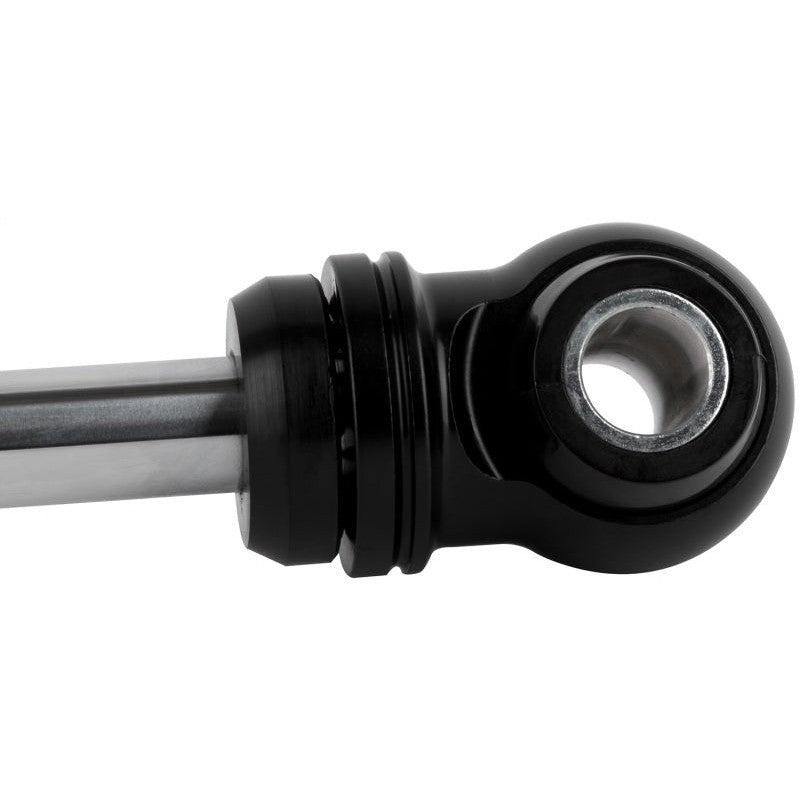

Fox 2.0 Performance Series Smooth Body IFP Rear Shock for Select Ford 2017-2025 (0-1" Lift, 12.1in Travel, CD Adj)

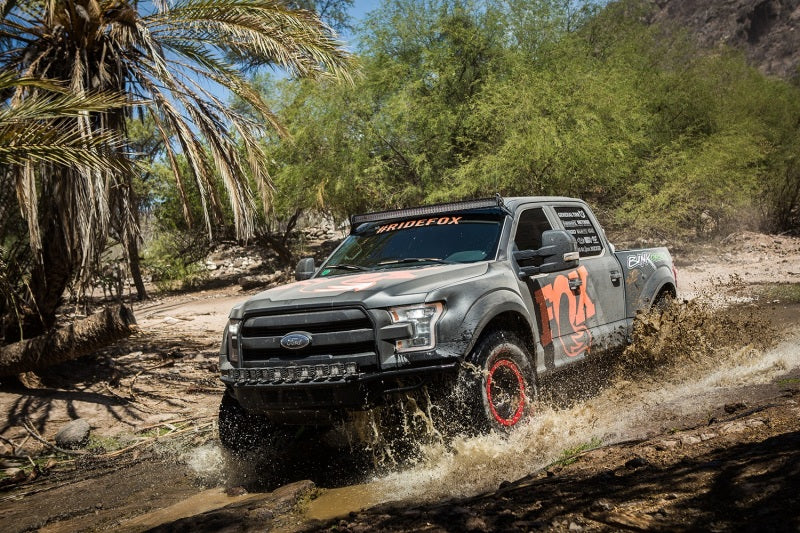

Fits select 2017-2025 Ford F-150, F-250/F-350 Super Duty, F-150 Lightning, Maverick, and Ranger.

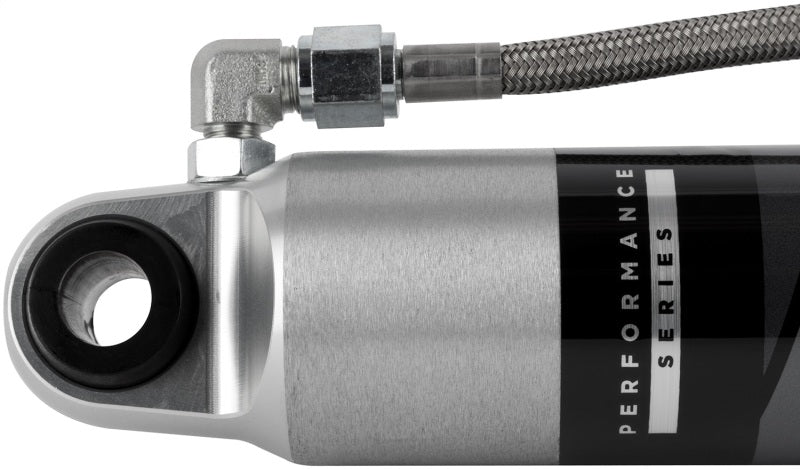

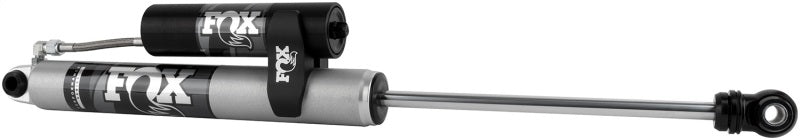

The Fox 2.0 Performance Series Smooth Body IFP (Internal Floating Piston) rear shock provides improved ride quality and control for both on-road comfort and off-road capability. This shock features an external reservoir system to dissipate heat quickly, supported by a 6061-T6 aluminum body that sheds heat four times faster than conventional steel shocks. The Internal Floating Piston design separates the shock oil from the high-pressure, nitrogen-charged gas chamber, eliminating oil aeration to ensure fade-resistant performance in demanding conditions.

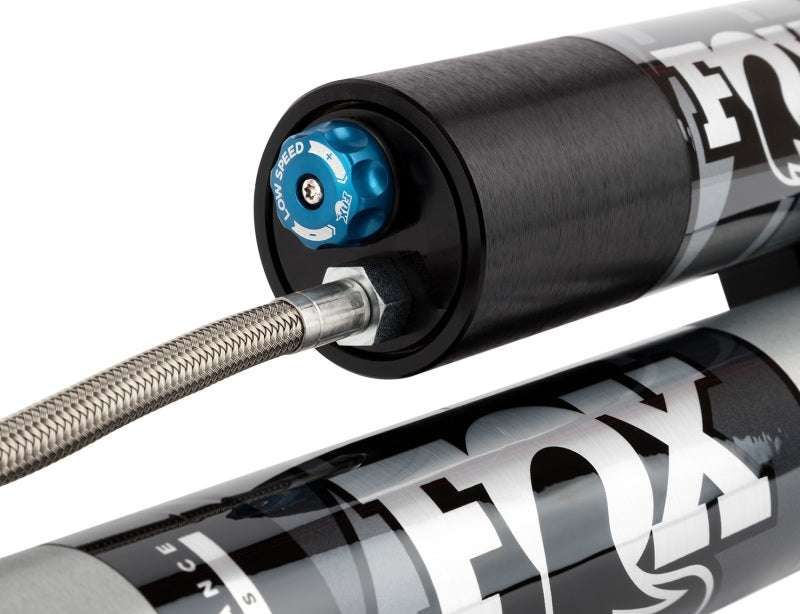

Equipped with a Compression Damping (CD) adjuster, this shock allows for precise fine-tuning with 8 clicks of adjustment, ranging from soft to firm. The race-developed high-flow piston and application-specific valving are designed to reduce vehicle sway and provide a connected feel throughout the suspension cycle. All Fox 2.0 Performance Series shocks are fully serviceable and built with clear-anodized finishes for long-term corrosion resistance.

• Manufacturer Part Number: 985-26-174
• Travel: 12.1 in.
• Lift Height: 0-1 in.
• Body Material: 2.0" Metal impacted 6061-T6 aluminum
• Damping Type: IFP (Internal Floating Piston) with CD Adjuster
• Adjustability: 8 clicks of compression damping adjustment

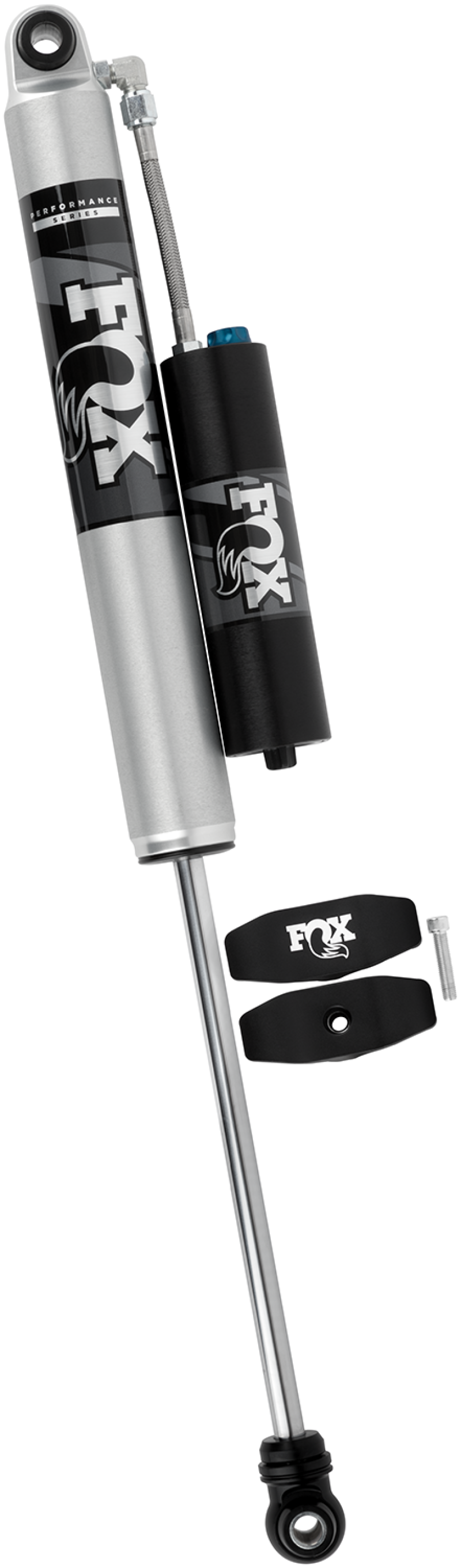

• Included Hardware: Aluminum reservoir clamp
• Maintenance: Fully serviceable and rebuildable
