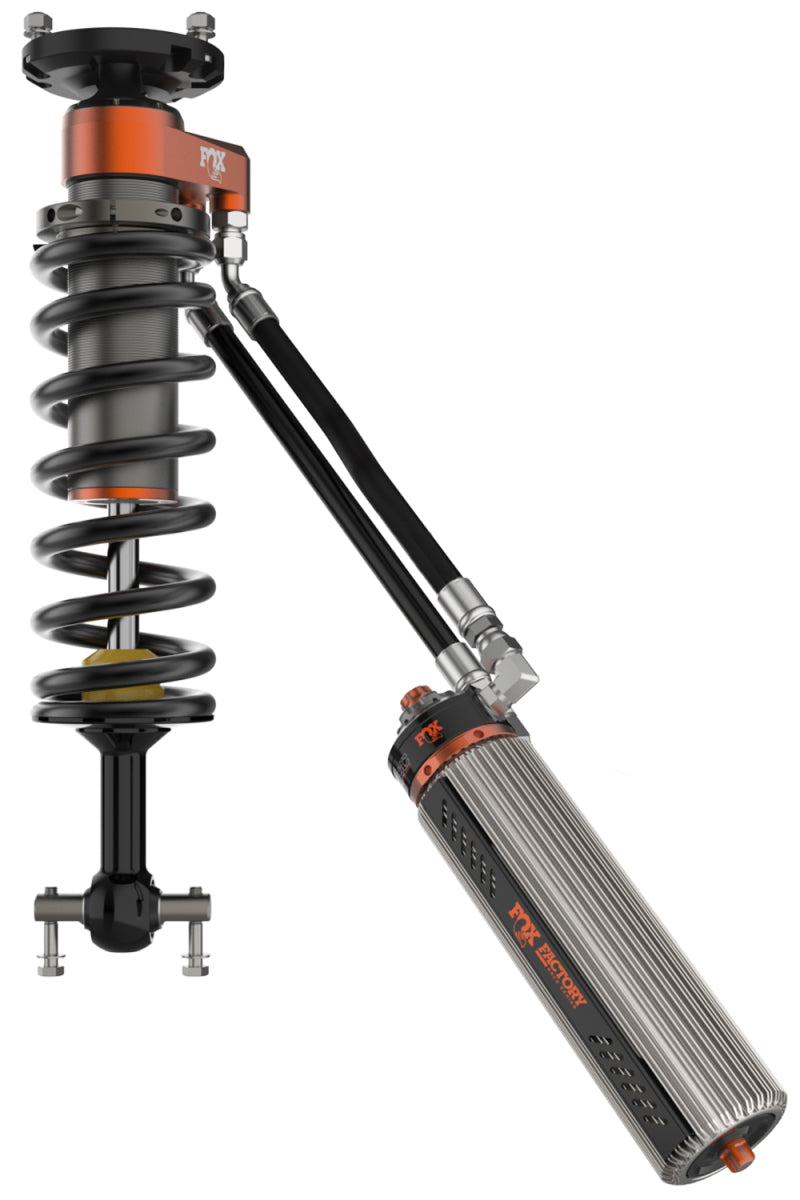

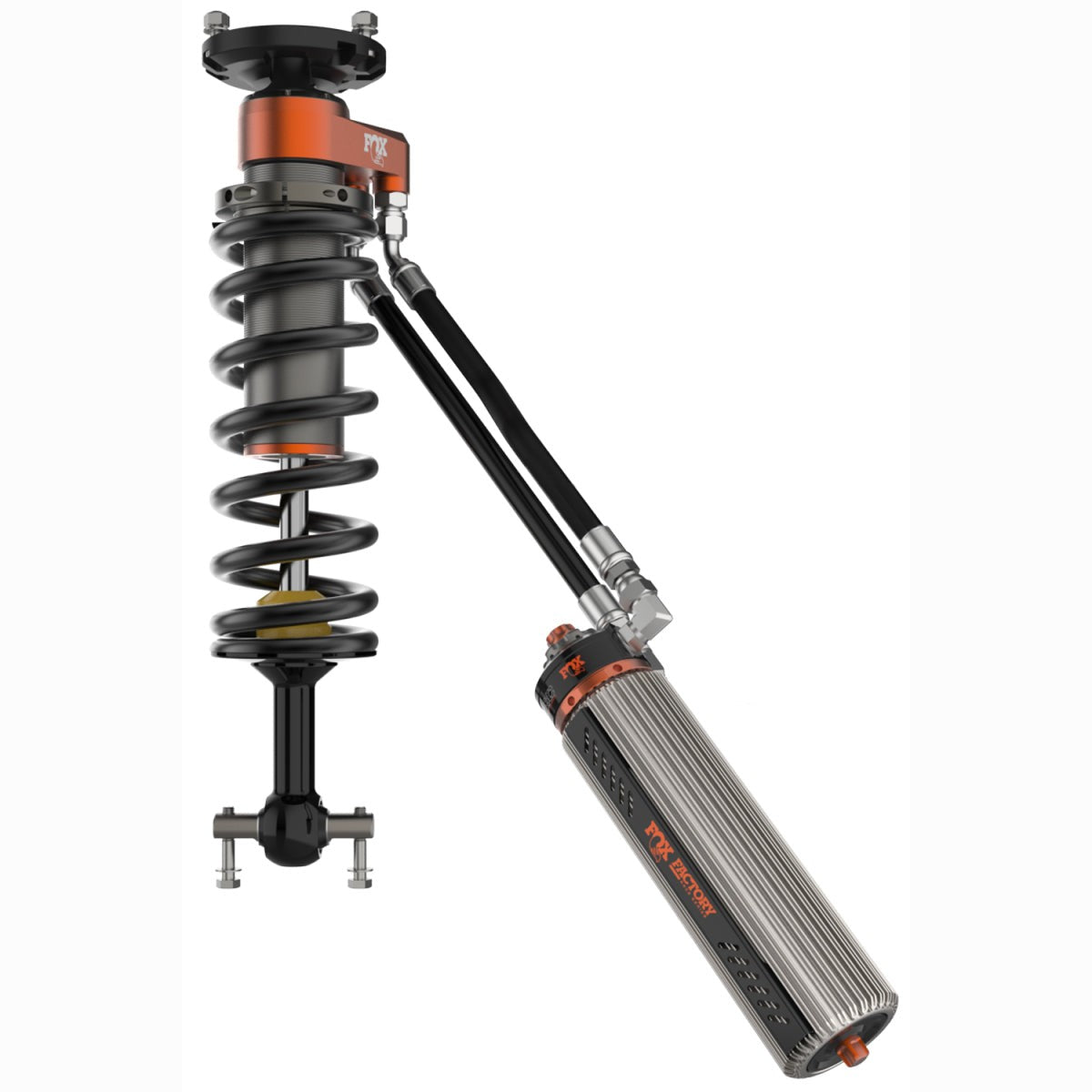

FOX Factory Race Series 3.0 Internal Bypass Front Coilovers; 3.5 in. Lift - Select 2019-2026 Chevy Silverado / GMC Sierra 1500

Fits select 2019-2026 Chevrolet Silverado 1500 and GMC Sierra 1500 models (including LTD and Limited variants).

The FOX Factory Race Series 3.0 Internal Bypass coilovers deliver race-proven suspension technology in a bolt-on package. Featuring FOX's patented internal bypass design, these shocks provide multiple zones of compression and rebound damping. This allows for a plush, controlled ride during normal travel while generating massive damping force at the ends of the stroke to prevent bottoming out. The integrated Dual Speed Compression (DSC) adjusters allow you to fine-tune high-speed and low-speed compression with a simple turn of a knob, adapting the vehicle for varying loads, terrains, or speeds.

• Internal Bypass Technology: Position-sensitive damping allows fluid to bypass the piston for a smooth ride in the ride zone and maximum control in the bump zone.
• Advanced Cooling: 3-inch and 2.5-inch aluminum bodies paired with "Cactus Cooler" finned external reservoirs dissipate heat rapidly to prevent fade.
• Robust Construction: 7/8-inch hard chrome plated heat-treated alloy steel shafts with redundant sealing systems for long-term durability.
• Precision Hardware: Black anodized, CNC-machined 6061-T6 aluminum components.
• Adjustability: Quick Switch Dual Speed Compression (DSC) adjusters for immediate tuning.
• Specifications: 3.5-inch front lift height; Manufacturer Part Number: 883-06-175.
