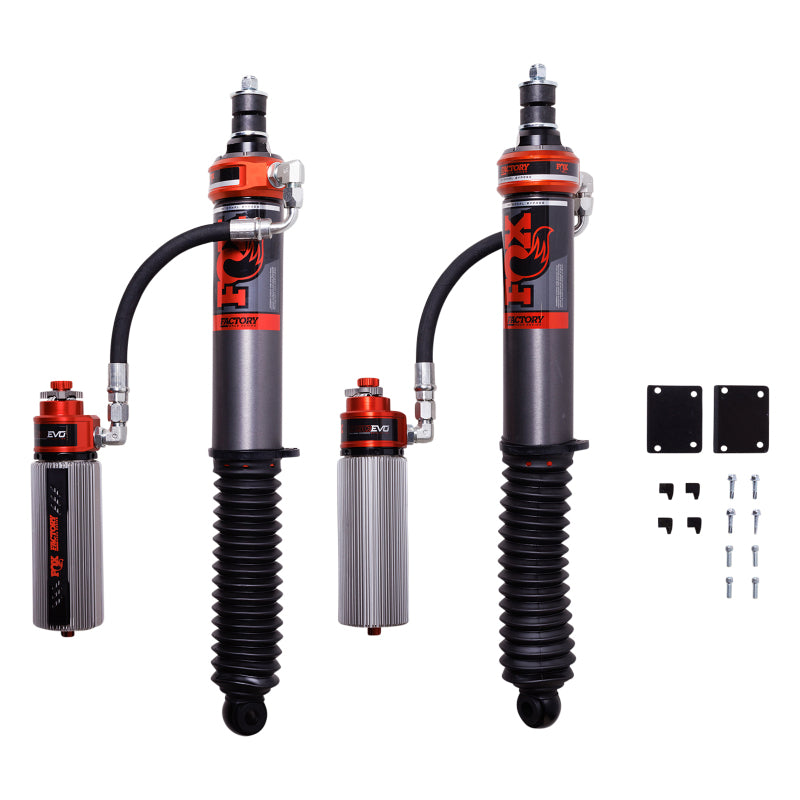

Fox Factory Race Series 3.2 Internal Bypass Rear Shock, 0-1.5" Lift, 2024-2026 Toyota & Lexus (883-26-169)

Fits select 2024-2026 Toyota Land Cruiser, 2025-2026 4Runner, and 2024-2026 Lexus GX550.

FOX Factory Race Series 3.2 Internal Bypass shocks deliver professional-grade damping for the LC250, GX550, and 4Runner chassis. Utilizing patented Internal Bypass technology, these shocks provide position-sensitive damping that remains plush through the ride zone while progressively increasing force to control bottom-outs and harsh top-outs. The 3.2-inch diameter impact-extruded 6061-T6 aluminum bodies are Type II anodized for superior heat dissipation and corrosion resistance.

These shocks feature finned remote reservoirs equipped with the Dual Speed Compression Evolution (DSC EVO) adjuster. DSC EVO employs Variable Valve Control (VVC) on the high-speed circuit, allowing you to increase damping for big hits without adding preload to the shim stack or compromising small-bump sensitivity. Designed as a bolt-on solution for vehicles with 0 to 1.5 inches of rear lift, this kit includes vehicle-specific tuning to maximize off-road control and on-road comfort.

• Manufacturer Part Number: 883-26-169
• 3.2-inch impact-extruded and CNC-machined 6061-T6 aluminum bodies
• Patented Internal Bypass technology for position-sensitive damping

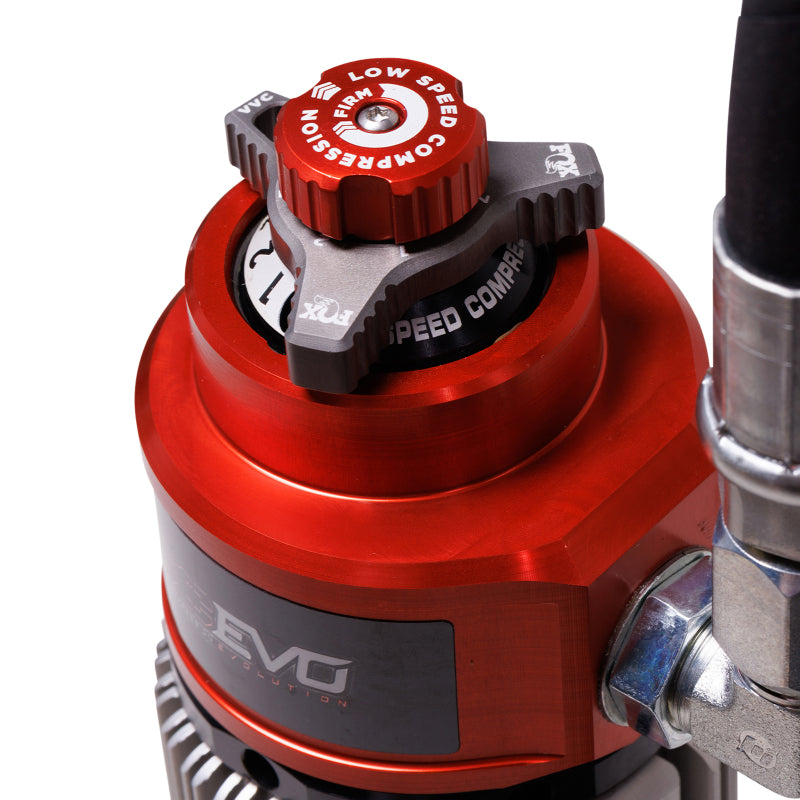

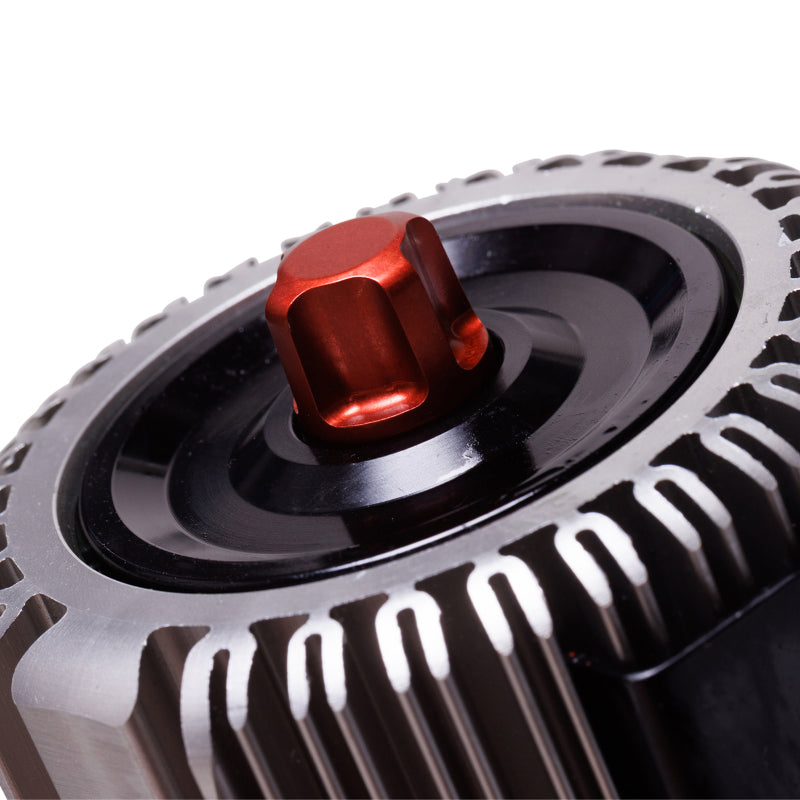

• Finned remote reservoir with DSC EVO (Dual Speed Compression Evolution) adjuster
• 7/8-inch hard chromed steel shafts for high-strength durability
• Redundant sealing pack system: main seal, wiper seal, and scraper seal
• Application-specific springs and tuning
