ICON Vehicle Dynamics Stage 3 2.5 Series Coilover Suspension Kit for 2021-2023 Ford Bronco K40013TX

Fits 2021-2023 Ford Bronco (all submodels including Sasquatch Package 4-door). This ICON Vehicle Dynamics Stage 3 suspension system provides a complete performance overhaul for your Bronco, engineered to maximize wheel travel and improve ride quality across technical off-road terrain and highway driving.

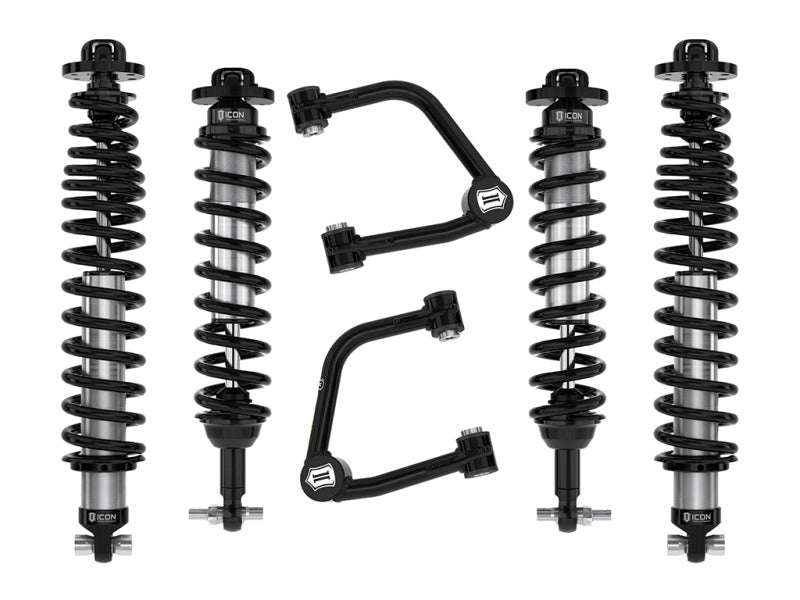

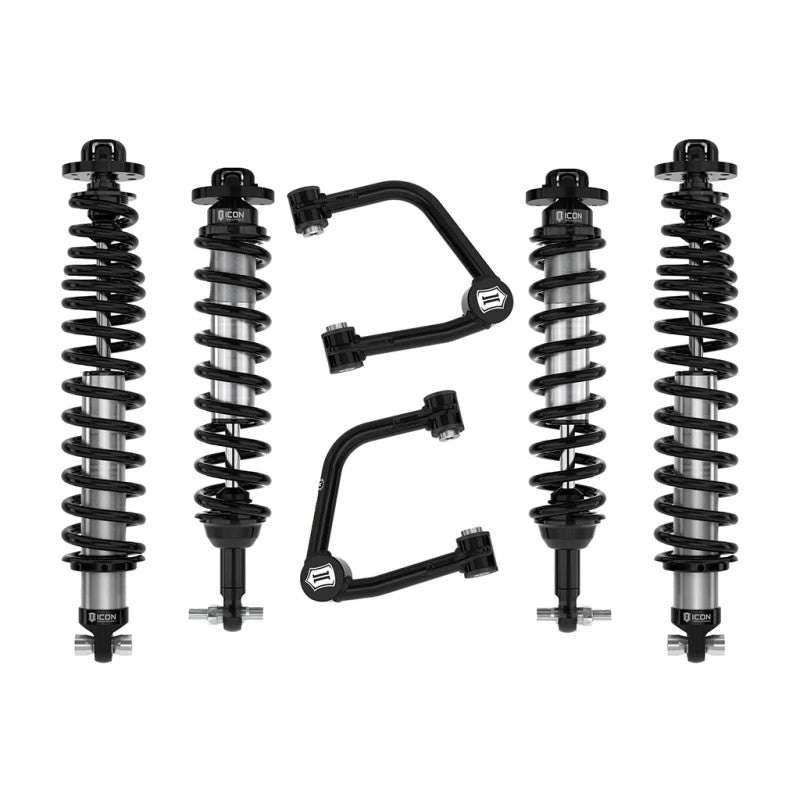

This comprehensive kit features ICON 2.5 Series internal reservoir coilover shocks, custom-valved for the Bronco platform. These coilovers are height-adjustable, offering 2-3” of front lift and 1.25-2.25” of rear lift on Sasquatch-equipped 4-door models. To support the increased travel, the kit includes tubular upper control arms (UCAs) featuring the patented Delta Joint PRO, which provides up to 90 degrees of articulation and corrects caster for proper alignment.

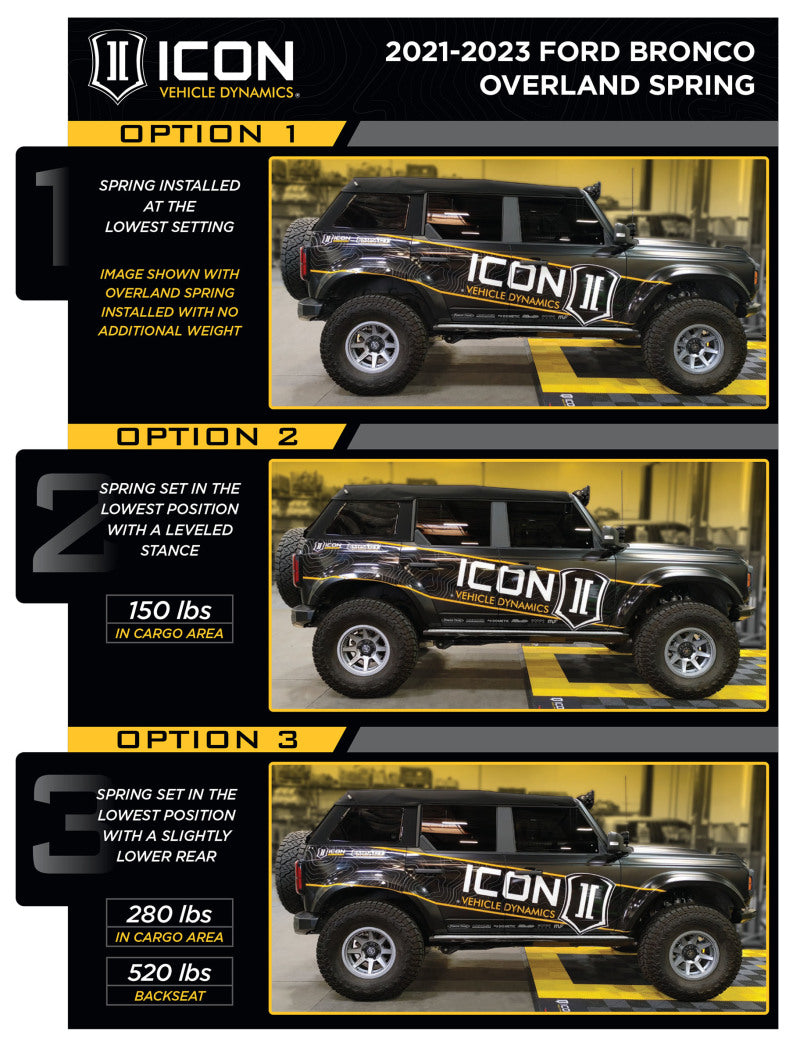

The rear suspension utilizes a shaft-up orientation and progressive dual-rate coil springs, specifically designed to handle additional gear and equipment weight without sacrificing damping performance. The system is 100% bolt-on, utilizing 6061 aircraft-grade aluminum and CAD-plated shock bodies for maximum durability.

• Adjustable lift height: 2-3” front / 1.25-2.25” rear
• Suspension travel: 11.5” front / 14” rear (with 35” tires)
• Patented Delta Joint PRO UCAs for 90-degree articulation and caster correction
• 2.5 Series internal reservoir shocks with 7/8” diameter shafts
• Corrosion-resistant CAD-plated coilover bodies
• CNC-machined 6061 aluminum components and alloy lower bar pins
• PTFE-lined spherical bearings for long-term reliability
• 100% bolt-on installation; no cutting or welding required
• Manufacturer Part Number: K40013TX
