ICON Stage 3 2.5 Series Coilover Suspension System for 2024-2025 Toyota Tacoma (1.25-3" Lift) K53293T
$3,129.75
This product will be available for sale in 2 weeks, but you can pre-order now to receive 10% discount!
Fits 2024-2025 Toyota Tacoma (Limited, SR5, TRD Off-Road, TRD Sport).

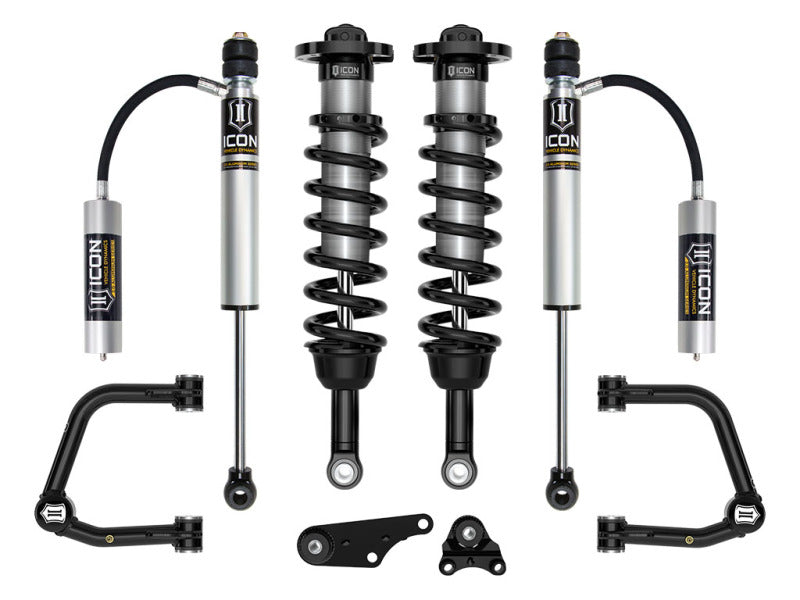

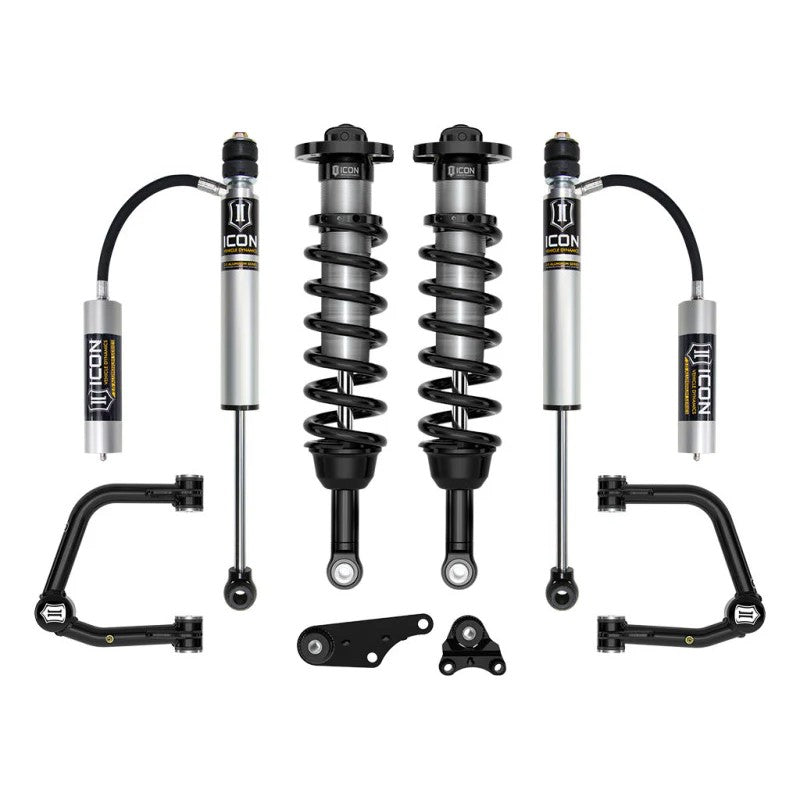

The ICON Vehicle Dynamics Stage 3 suspension system is engineered for the 2024-2025 Toyota Tacoma, prioritizing increased wheel travel and superior damping for high-speed off-road performance and refined street handling. This system features vehicle-specific tuned 2.5 Series front coilover shocks with internal reservoirs for high heat dissipation and ICON-engineered coil springs. These coilovers provide 1.25–3 inches of front lift height, allowing clearance for larger wheel and tire packages.
To maintain drivetrain reliability, this kit includes front differential drop brackets and polyurethane mounting bushings to optimize CV angles and minimize movement under load. The included tubular upper control arms (UCAs) feature the patented Delta Joint PRO, providing 90 degrees of articulation to eliminate binding during full suspension cycle. Rear damping is handled by ICON 2.0 Aluminum Series remote reservoir shocks, valved specifically for the Tacoma's chassis to ensure a balanced, controlled ride.
- Adjustable 2.5 Series front coilovers provide 1.25-3" of lift
- Corrosion-resistant CAD plated shock bodies with 7/8" hardened shafts
- Tubular UCAs with Delta Joint PRO (U.S. Pat. 10,731,700) for 90-degree articulation
- Front differential drop kit improves CV angles and maximizes travel
- 2.0 Aluminum Series remote reservoir rear shocks with 5/8" shafts
- FK Rod End bearings for durability and reduced deflection
- 6061 aircraft-grade CNC machined aluminum components
- Manufacturer Part Number: K53293T
📘 Guides & Manuals
🔧 Fitment & Compatibility
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2024 | Toyota | Tacoma | Limited |
| 2024-2025 | Toyota | Tacoma | SR5 |
| 2024-2025 | Toyota | Tacoma | TRD Off-Road |
| 2024-2025 | Toyota | Tacoma | TRD Sport |
