ICON Stage 3 0-3.5" Suspension System with Billet UCAs for 2003-2009 Lexus GX470

Fits 2003-2009 Lexus GX470 Base models.

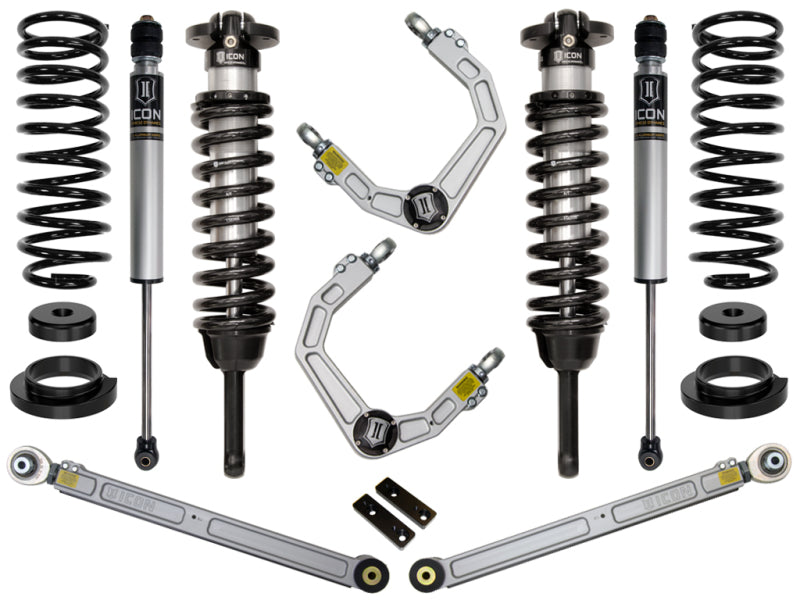

The ICON Stage 3 suspension system is a comprehensive performance upgrade engineered to increase wheel travel, improve ride quality, and provide 0-3.5 inches of adjustable lift height. This system is specifically designed to address the unique needs of the GX470 platform, including a rear coil spring conversion kit to eliminate the factory rear air bags in favor of reliable 2-inch lift coil springs.

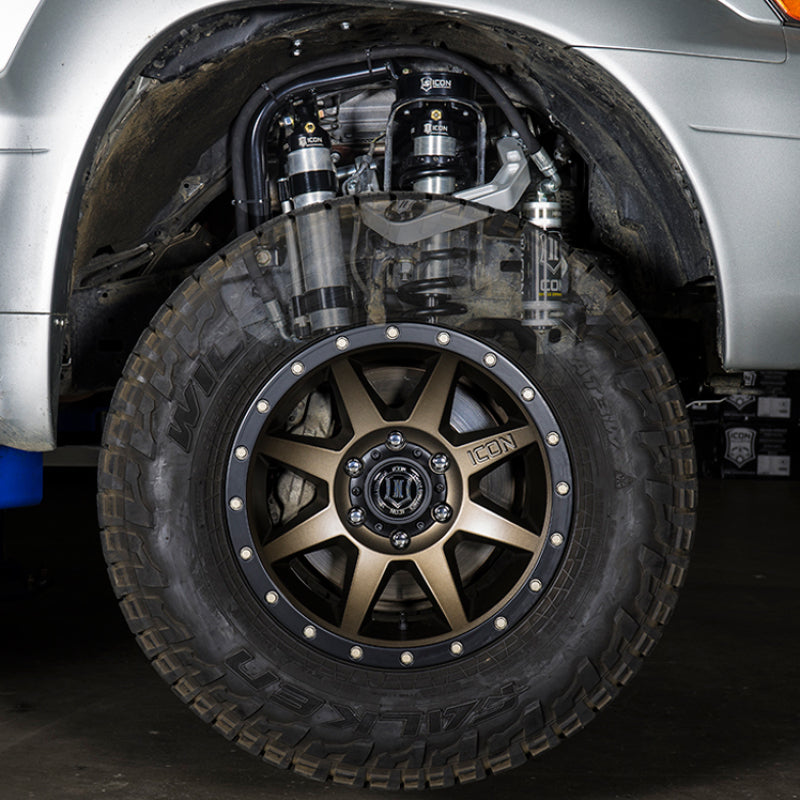

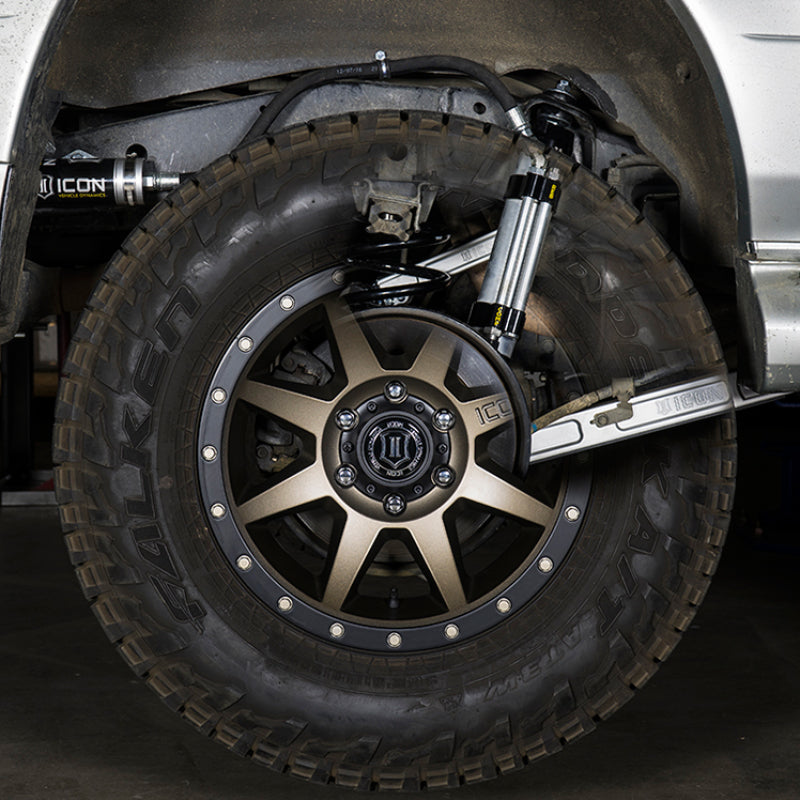

The front suspension features vehicle-specific tuned 2.5-inch extended travel coilover shocks with internal reservoirs and corrosion-resistant CAD-plated bodies. These are paired with 6061 billet aluminum upper control arms (UCAs) featuring ICON’s patented Delta Joint. This combination provides the durability of a sealed ball joint with the high-angle performance of a uniball, allowing for precise front-end alignment and increased articulation. In the rear, 2.0 Aluminum Series IFP shocks balance the damping, while billet aluminum lower links allow for on-vehicle pinion angle adjustment and improved roll steer geometry.

• Adjustable 0-3.5" front lift height for larger wheel and tire fitment
• 2.5" diameter front coilovers with 7/8" shafts and internal reservoirs
• 2.0 Aluminum Series rear IFP shocks with 5/8" shafts
• Patented Delta Joint (U.S. Pat. 10,731,700) for superior durability and articulation
• 6061 aircraft-grade CNC machined aluminum UCAs and rear lower links
• FK Rod End bearings for minimal deflection and extended service life
• Complete rear air-to-coil conversion kit included
• 100% bolt-on installation with no cutting or welding required
• Manufacturer Part Number: K53173
