ICON 2003-2009 Lexus GX470 0-3.5in Stage 5 Suspension System with Billet UCAs & Rear Links (K53175)

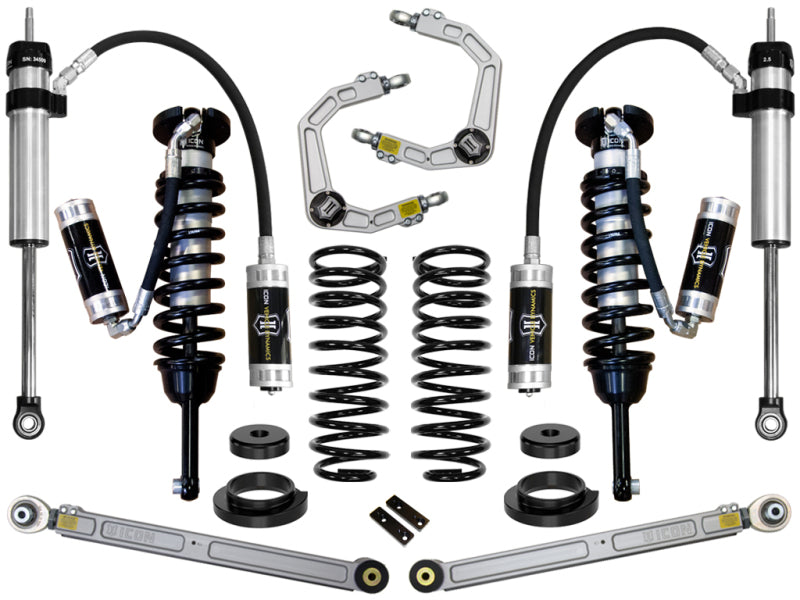

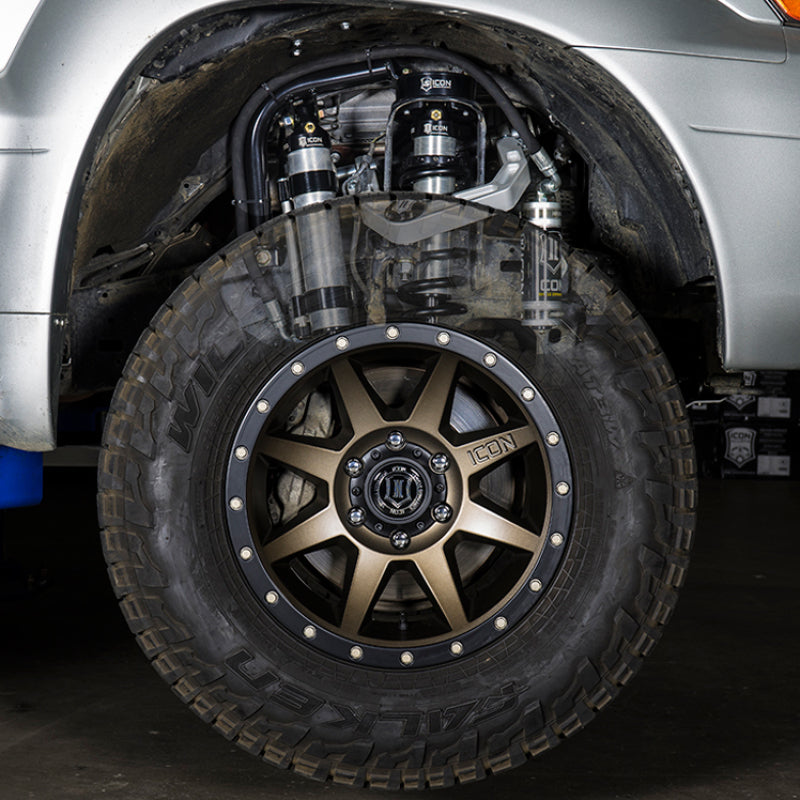

The ICON Stage 5 suspension system for the 2003-2009 Lexus GX470 Base is a comprehensive performance upgrade designed to improve off-road articulation, heat dissipation, and front-end alignment. This system is centered around vehicle-specific tuned 2.5-inch coilover shocks featuring remote reservoirs and adjustable ride height from 0 to 3.5 inches of lift. To optimize geometry at these heights, ICON includes billet aluminum upper control arms equipped with the patented Delta Joint, combining the durability of a sealed ball joint with the performance of a uniball.

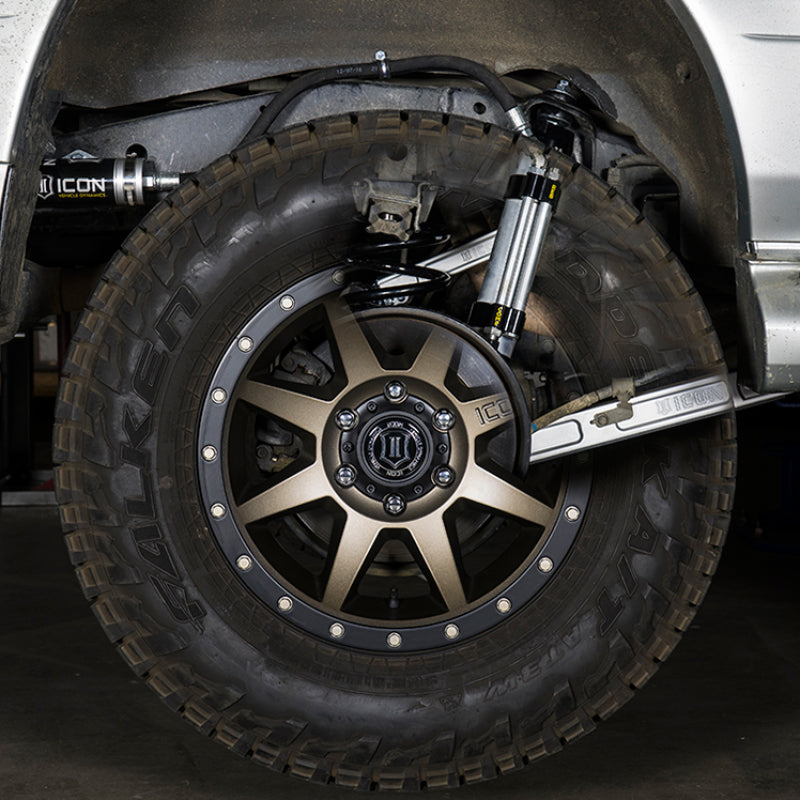

Addressing the common failure point of the factory air suspension, this kit includes a rear coil spring conversion. The rear is supported by 2-inch lift coil springs and 2.5 Aluminum Series remote reservoir shocks with 7/8-inch shafts. To maximize strength and adjustability, the Stage 5 system also features CNC-machined billet aluminum rear lower links, allowing for on-vehicle pinion angle adjustment and corrected roll steer geometry. This is a complete, bolt-on system that requires no cutting or welding for installation.

• Fits 2003-2009 Lexus GX470 Base.
• Adjustable 0-3.5" front lift height for larger tire clearance.
• 2.5" diameter remote reservoir front and rear shocks for superior cooling.
• Billet 6061 aircraft grade aluminum UCAs and rear lower links.
• Patented Delta Joint (U.S. Pat. 10,731,700) for high-angle, low-friction performance.
• Rear coil spring conversion kit replaces factory air bag system.
• Corrosion-resistant CAD-plated shock bodies with 7/8" shafts.
• FK Rod End bearings for maximum longevity and minimal deflection.
• Manufacturer Part Number: K53175
