ICON Stage 9 Suspension System for 2005-2023 Toyota Tacoma with Billet UCAs & CDCV Shocks (K53009)

Fits 2005-2023 Toyota Tacoma models including Base, PreRunner, SR, SR5, TRD Off-Road, TRD Sport, TRD Pro, and X-Runner.

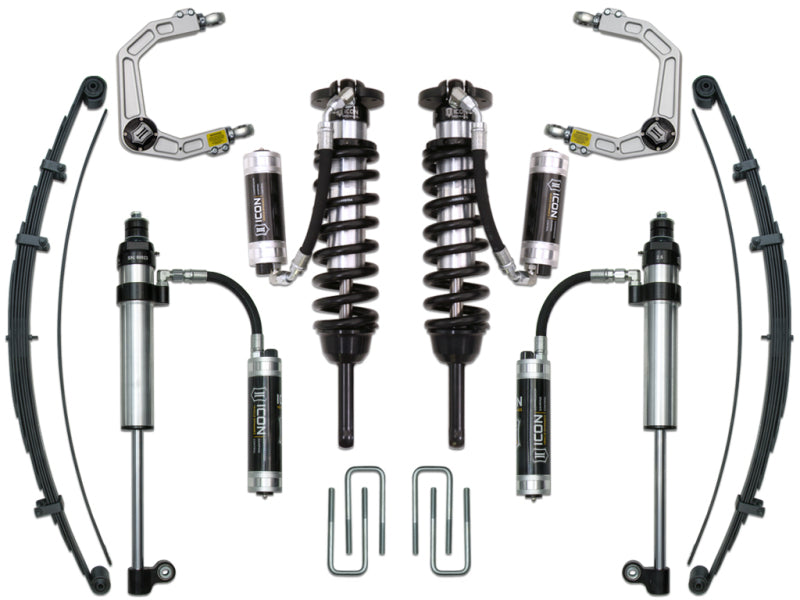

The ICON Stage 9 suspension system is the ultimate performance upgrade for the 2005-2023 Toyota Tacoma, engineered for drivers who demand maximum damping control and suspension travel. This system features 2.5 Series Extended Travel remote reservoir front coilovers and 2.5 Aluminum Series remote reservoir rear shocks, both equipped with ICON’s Compression Damping Control Valve (CDCV). This allows for 10 precise settings of damping adjustment to tune your ride for any terrain or cargo load.

Up front, the coilovers provide 0-3.5" of lift (2005-2015 models) or 0-2.75" (2016-2023 models) while working in tandem with ICON billet aluminum upper control arms. These UCAs feature the patented Delta Joint, corrected geometry for improved caster and camber, and on-vehicle adjustability. In the rear, the RXT multi-rate leaf springs offer three user-adjustable spring rates to handle everything from unloaded daily driving to fully outfitted overland builds with heavy bed racks and tents.

• MPN: K53009
• Front Lift Height: 0-3.5" (2005-2015) / 0-2.75" (2016-2023)
• Shocks: 2.5 Series Remote Reservoir with CDCV (10 levels of damping adjustment)
• Upper Control Arms: CNC-machined 6061 billet aluminum with patented Delta Joint

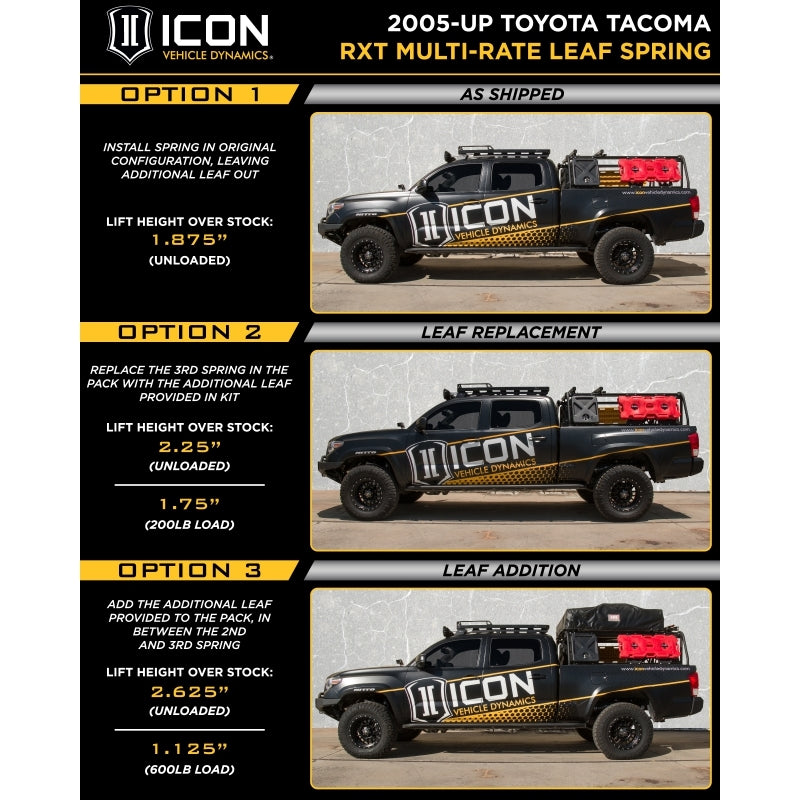

• Rear Springs: RXT Multi-Rate Leaf Springs with 3 adjustable rate configurations
• Shock Construction: CAD plated coilover bodies and anodized aluminum rear bodies with 7/8" shafts
• Hardware: FK Rod End bearings and 6061 aircraft-grade aluminum components
• Installation: Bolt-on design fits factory mounting locations
