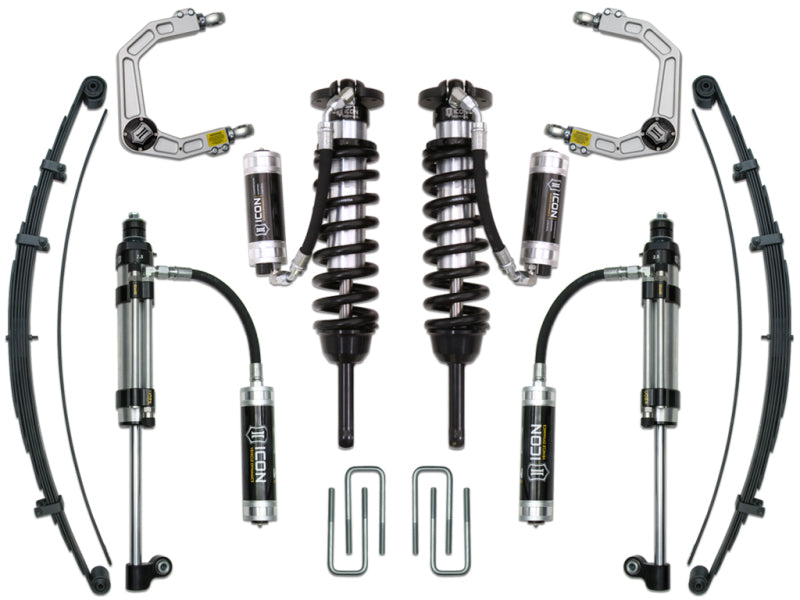

ICON Stage 10 Suspension System for 2005-2023 Toyota Tacoma (0-3.5" Lift) w/ Billet UCAs & RXT Shocks

Fits 2005-2023 Toyota Tacoma models including Base, SR5, TRD Off-Road, TRD Pro, and Limited.

The ICON Stage 10 Suspension System is a comprehensive performance upgrade designed for the 2005-2023 Toyota Tacoma. This system features vehicle-specific 2.5 Series Extended Travel remote reservoir coilovers equipped with ICON’s CDC Valve (Compression Damping Control), providing 10 distinct damping force settings. For geometry correction and improved front-end strength, the kit includes CNC-machined 6061 billet aluminum upper control arms (UCAs) featuring the patented Delta Joint. These UCAs allow for increased on-vehicle caster and camber adjustment while maintaining a high range of travel.

The rear suspension is enhanced with 2.5 Aluminum Series RXT Omega Bypass shocks, which offer independent, user-adjustable compression and rebound damping. To handle varying cargo loads, the RXT multi-rate leaf spring pack provides three adjustable spring rates, allowing owners to tune the suspension for either an unloaded bed or a fully equipped overlanding setup including bed racks and rooftop tents.

• Front Lift Height: 0-3.5" (2005-2015) or 0-2.75" (2016-2023)
• 2.5 Series Front Coilovers with CDCV Remote Reservoirs
• Billet Aluminum UCAs with Patented Delta Joint (U.S. Pat. 10,731,700)
• 2.5 Aluminum Series RXT Omega Bypass Rear Shocks with side-mounted eyelets

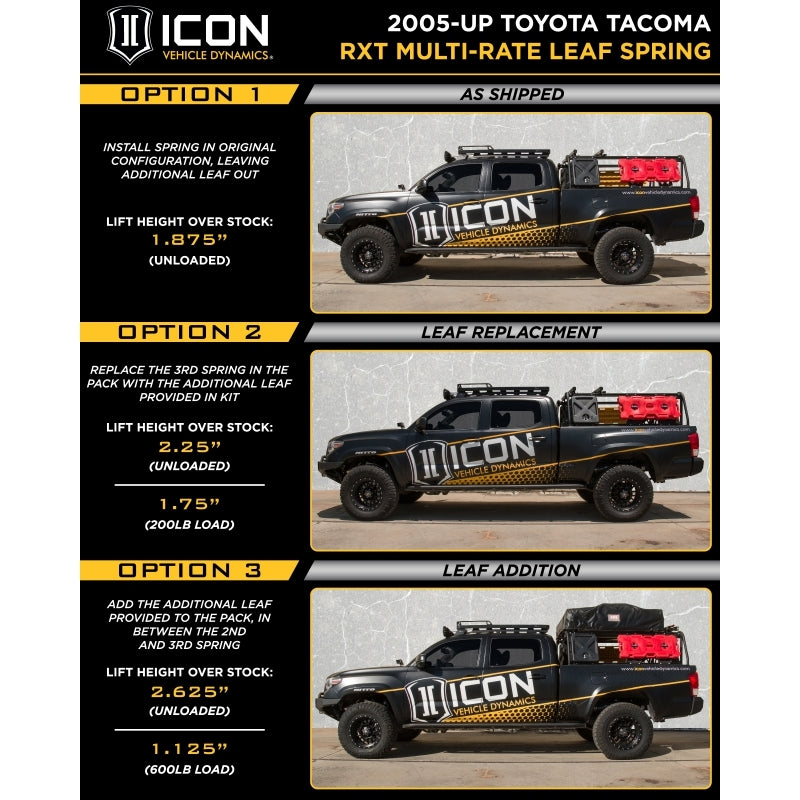

• RXT Multi-Rate Leaf Springs with 3 adjustable rates
• CAD-plated shock bodies with 7/8" shafts and FK Rod End bearings
• 6061 aircraft-grade aluminum CNC-machined components
• Manufacturer Part Number: K53010
