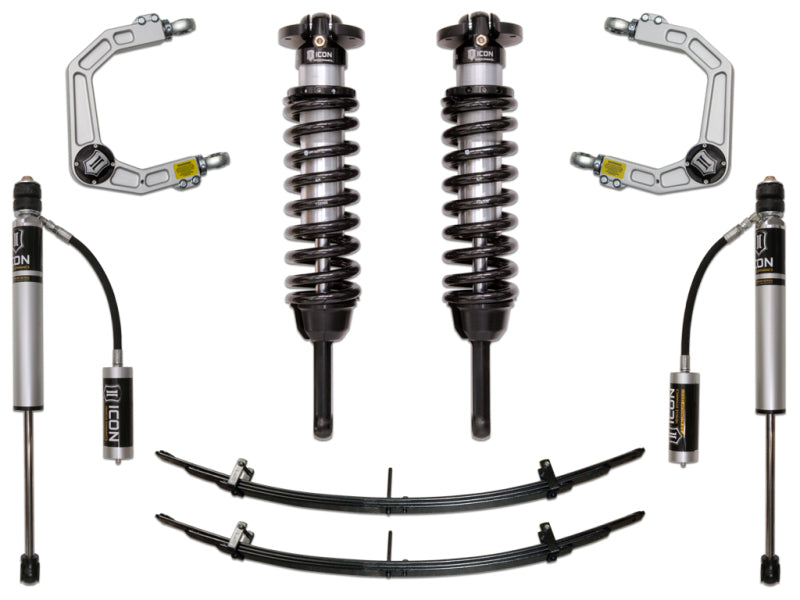

ICON Stage 3 Suspension System with Billet UCAs for 2005-2023 Toyota Tacoma (0-3.5" Lift)

Fits 2005-2023 Toyota Tacoma (Base, Pre Runner, X-Runner, SR, SR5, Limited, TRD Sport, TRD Off-Road, and TRD Pro). This comprehensive suspension upgrade is designed to improve wheel travel, damping performance, and vehicle control for both daily driving and off-road use.

The ICON Stage 3 system features 2.5-inch Extended Travel coilover shocks with vehicle-specific tuning and an internal reservoir for effective cooling. These coilovers allow for height adjustment from 0-3.5 inches of lift on 2005-2015 models and 0-2.75 inches on 2016-2023 models. To correct front-end geometry and increase droop travel, the kit includes CNC-machined 6061 aircraft-grade billet aluminum upper control arms (UCAs). These UCAs feature the patented Delta Joint, a serviceable high-angle joint that provides the durability of a uniball with the weather resistance of a ball joint. In the rear, a 1.5-inch Add-A-Leaf kit replaces the factory overload leaves to soften the spring rate by 10% for better compliance, while 2.0 Aluminum Series remote reservoir shocks provide balanced damping across the chassis.

• Manufacturer Part Number: K53003
• Adjustable front lift height: 0-3.5" (2005-2015) or 0-2.75" (2016-2023)
• Billet aluminum UCAs with caster/camber adjustment and Delta Joint
• 2.5" coilover shocks with CAD plated bodies and 7/8" shafts
• 2.0 Aluminum Series remote reservoir rear shocks with 5/8" shafts
• Rear 1.5" Add-A-Leaf kit for improved ride quality
• FK Rod End bearings for durability and reduced deflection
• 6061 aircraft-grade aluminum CNC-machined components
• 100% bolt-on installation; no cutting or welding required
