ICON Stage 3 Suspension System with Tubular UCAs for 2005-2023 Toyota Tacoma (0-3.5in / 0-2.75in Lift)

Fits 2005-2023 Toyota Tacoma (Base, Pre Runner, SR, SR5, TRD Off-Road, TRD Pro, TRD Sport, X-Runner, Trail, Limited).

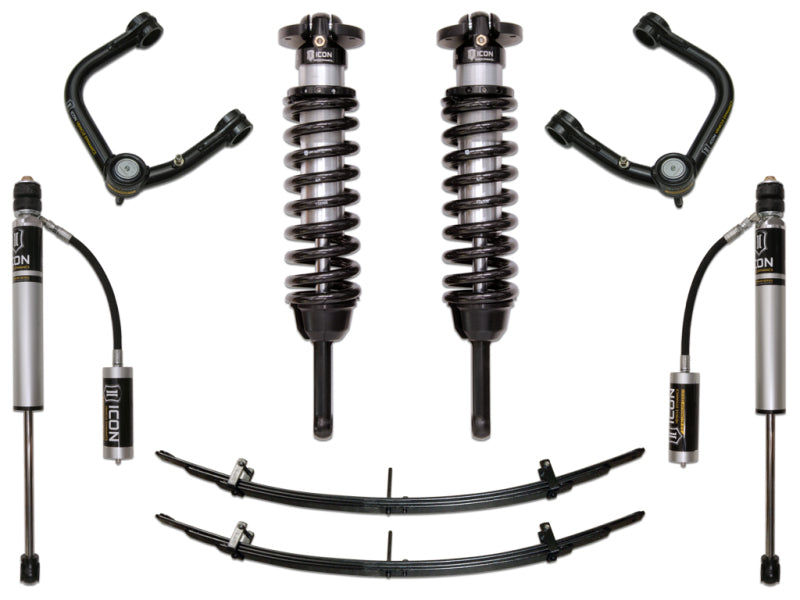

The ICON Vehicle Dynamics Stage 3 suspension system is engineered to provide superior ride quality and wheel travel for the serious off-road enthusiast. This system features vehicle-specific tuned 2.5-inch Extended Travel coilover shocks in the front, offering adjustable lift heights of 0-3.5" for 2005-2015 models and 0-2.75" for 2016-2023 models. These coilovers utilize CAD-plated shock bodies and 7/8-inch shafts for high-strength durability. To maximize the benefit of the extended travel coilovers, the included tubular upper control arms (UCAs) feature the patented Delta Joint, which provides the range of motion of a uniball with the weather resistance of a sealed ball joint, correcting front-end geometry and increasing caster.

For the rear, this system includes 2.0 Aluminum Series remote reservoir shocks with 5/8-inch shafts to provide consistent damping under heavy use. The rear Add-A-Leaf kit replaces the factory overload leaf, resulting in a 1.5-inch lift and a 10% lower spring rate for a more compliant, controlled ride. This bolt-on kit requires no cutting or welding for installation.

• Manufacturer Part Number: K53003T
• 2.5-inch Extended Travel coilover shocks with internal reservoirs
• Tubular UCAs with patented Delta Joint (U.S. Pat. 10,731,700)
• 2.0 Aluminum Series remote reservoir rear shocks with 5/8-inch shafts
• Rear Add-A-Leaf kit providing 1.5-inch lift over stock
• CNC machined 6061 aircraft-grade aluminum components
• FK Rod End bearings for minimal deflection and extended longevity
• Corrosion-resistant CAD plated coilover shock bodies with 7/8-inch shafts
