ICON Stage 4 Suspension System for 2005-2023 Toyota Tacoma with Billet UCAs (0-3.5" Lift) - K53004

Fits 2005-2023 Toyota Tacoma (Base, Limited, Pre Runner, SR, SR5, Trail, TRD Off-Road, TRD Pro, TRD Sport, and X-Runner).

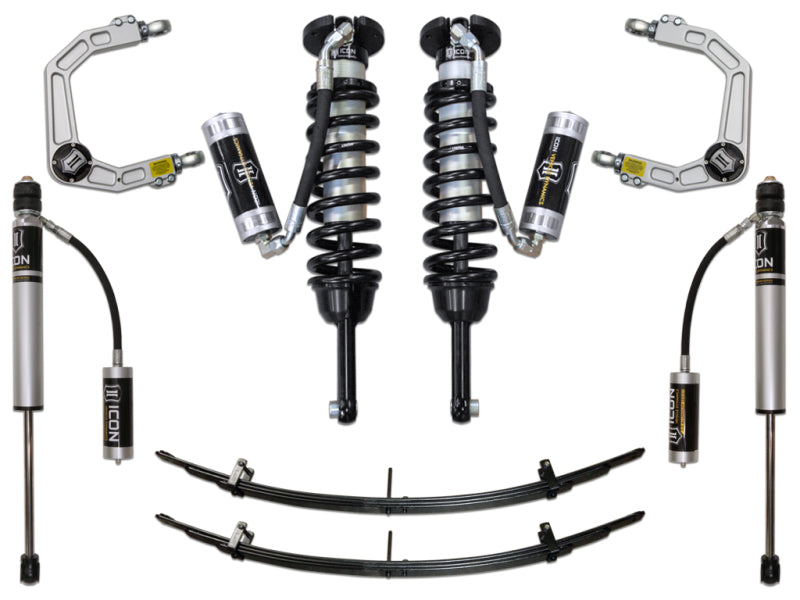

The ICON Vehicle Dynamics Stage 4 suspension system is engineered for the serious driver demanding maximum wheel travel and damping ability. This comprehensive bolt-on kit replaces the factory components with vehicle-specific tuned 2.5 Series front coilovers and 2.0 Aluminum Series rear shocks. The front coilovers feature remote reservoirs for superior cooling and are height adjustable, providing 0-3.5" of lift on 2005-2015 models and 0-2.75" of lift on 2016-2023 models. This extra clearance allows for more aggressive wheel and tire combinations while improving overall ride quality.

A centerpiece of the Stage 4 system is the ICON billet aluminum upper control arm (UCA) kit. These arms are CNC machined from 6061 aircraft-grade aluminum and feature the patented Delta Joint. This serviceable high-angle ball joint provides the durability of a standard ball joint with the performance of a uniball, allowing for full suspension cycling without binding. For the rear, an Add-A-Leaf kit replaces the factory overload leaves to lower the rear spring rate by 10%, delivering a more compliant ride and 1.5" of lift.

• ICON 2.5 Series front coilovers with remote reservoirs and 7/8" shafts
• ICON 2.0 Aluminum Series remote reservoir rear shocks with 5/8" shafts
• Billet aluminum UCAs with patented Delta Joint (U.S. Pat. 10,731,700)
• 6061 aircraft grade aluminum CNC machined components
• Corrosion-resistant CAD plated coilover shock bodies
• FK Rod End bearings for minimal deflection and longevity
• Rear Add-A-Leaf kit for 1.5" rear lift and improved compliance
• Manufacturer Part Number: K53004
