ICON 2010-2014 Ford F-150 SVT Raptor Rear Hydraulic Bump Stop Kit (95120)

Fits 2010-2014 Ford F-150 SVT Raptor.

Standard factory rubber bump stops have limited energy absorption and often result in a harsh "kick" when the rear suspension bottoms out. The ICON Rear Hydraulic Bump Stop Kit (95120) provides a robust hydro-pneumatic solution designed for extreme off-road use. Unlike static rubber stops, these air bumps use a nitrogen charge to act as a spring and an internal damping piston to manage energy return, significantly improving vehicle control during high-speed impacts.

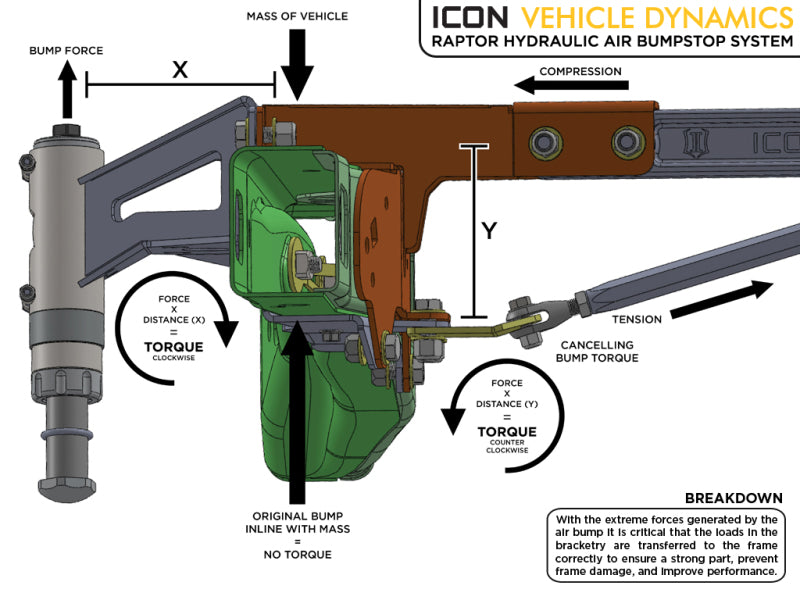

This kit features a velocity-sensitive, linear-digressive piston that provides soft initial contact and ramps up damping force as travel increases. To protect the chassis, ICON includes clamshell brackets and a 6061 solid billet aluminum cross bar to reinforce the frame rails and prevent twisting under heavy load. The system is fully adjustable, allowing users to tune the valve stack, oil volume, and nitrogen pressure to match their specific leaf spring and cargo setup.

• Linear-digressive piston design for superior damping compared to industry-standard linear pistons
• 6061 solid billet aluminum cross bar with a polished and anodized finish
• Clamshell brackets and tension rods strengthen the frame in critical stress areas
• Velocity-sensitive damping increases energy absorption as impact speed increases
• Cadmium-plated bodies and urethane seals for long-term corrosion resistance and service life
• Easy bolt-on installation does not require truck bed removal or leaf spring disassembly
• User-serviceable and tunable for custom performance requirements
• MPN: 95120
