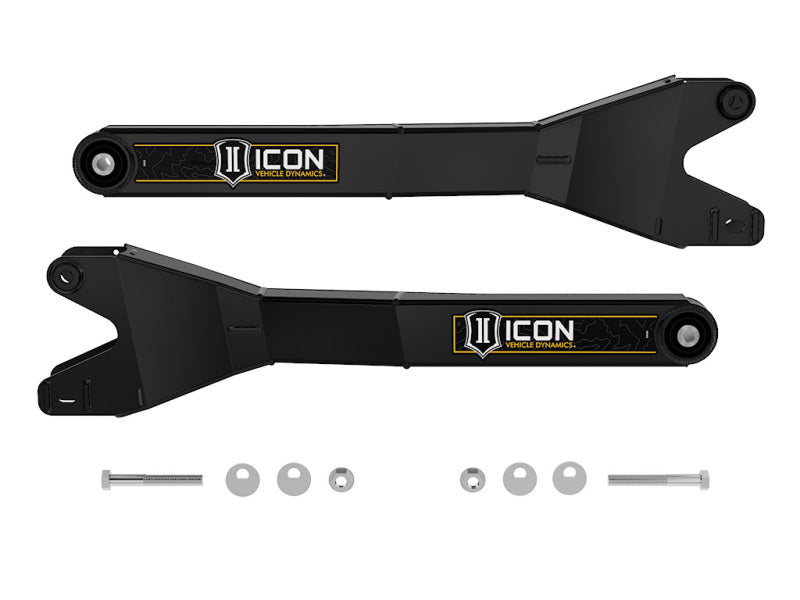

ICON Vehicle Dynamics Radius Arm System for Select 2005-2022 Ford F-250/F-350 Super Duty - 64041

Fits select 2005-2022 Ford F-250 and F-350 Super Duty trucks.

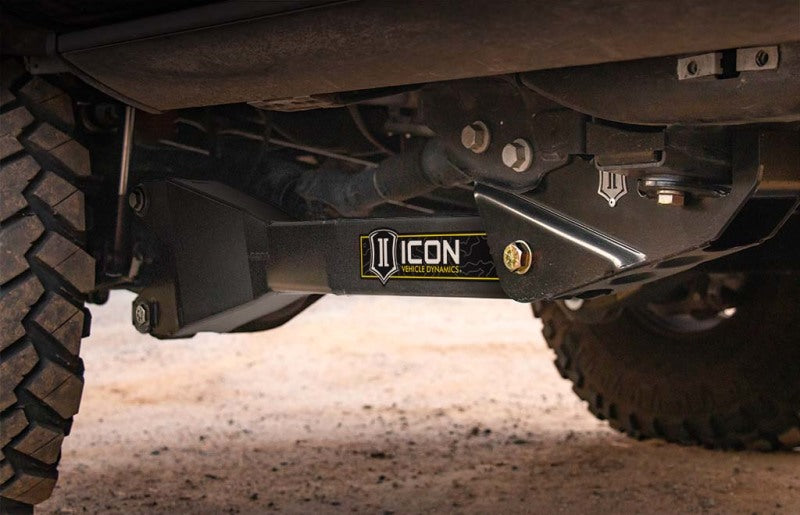

The ICON Vehicle Dynamics Radius Arm System is engineered to improve the suspension geometry, strength, and tire clearance of your Super Duty. These arms feature adjustable caster cams, allowing for precise alignment on trucks ranging from stock height up to 3 inches of front lift using the factory pivot points. When used with ICON radius arm drop brackets or coilover conversion systems, this system maintains proper caster for 4- to 7-inch lift heights.

Constructed from CNC machined and laser-cut steel, the fully boxed design offers significantly more strength than factory components. The arm profile is specifically optimized for maximum tire clearance, permitting the use of 37-inch tall tires on wheels with 5.5-inch backspacing without contact at full steering lock. A replaceable, sealed pivot bushing ensures quiet, maintenance-free operation while minimizing road feedback.

• Fits stock height to 3-inch lifts (up to 7-inch lifts with drop brackets)
• Integrated caster adjustment cams for optimized return-to-center and handling
• Fully boxed, laser-cut steel construction for maximum structural integrity
• Profiled design clears 37-inch tires at full steering lock with 5.5-inch backspacing
• Replaceable sealed pivot bushings provide quiet, maintenance-free performance
• Durable semi-gloss black powder coat finish
• Manufacturer Part Number: 64041
