ICON 2007-2021 Toyota Tundra 1-3" Stage 8 Suspension System with Tubular UCAs (K53028T)

Fits 2007-2021 Toyota Tundra (Base, SR, SR5, Limited, Platinum, 1794 Edition, TRD Pro, Trail, and Nightshade).

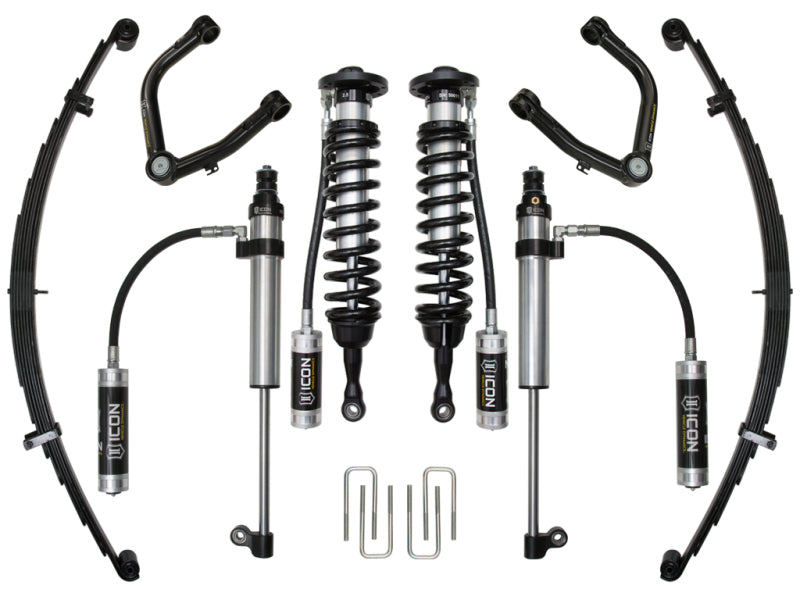

The ICON Stage 8 Suspension System is a complete handling overhaul for the 2007-2021 Toyota Tundra, engineered to provide 1-3 inches of front lift and significantly increased wheel travel. This system features vehicle-specific tuned 2.5 Series front coilovers with remote reservoirs for superior heat dissipation and Eibach coil springs for a refined ride. The included ICON tubular upper control arms (UCAs) allow for increased droop travel and corrected suspension geometry after lifting.

For the rear, this kit includes ICON RXT multi-rate leaf springs, which offer three user-adjustable spring rates to accommodate varying bed loads—from empty daily driving to fully equipped overland builds with racks and tents. These are paired with 2.5 Aluminum Series RXT remote reservoir shocks, utilizing a unique side-mount eyelet to maximize travel while bolting directly to factory mounting locations. The 10-inch reservoirs ensure consistent damping performance during aggressive off-road use by resisting shock fade.

• Adjustable front coilovers provide 1-3" of lift height
• 2.5 Series front and rear shocks with remote reservoirs for optimal cooling
• ICON tubular upper control arms for increased droop travel
• RXT multi-rate leaf springs with 3 user-adjustable rate configurations
• CAD plated coilover bodies with 7/8" shafts and FK Rod End bearings
• 6061 aircraft grade aluminum CNC machined components
• Impact extruded aluminum rear shock cylinders for corrosion resistance
• 100% Bolt-on installation; no cutting or welding required
• Fully rebuildable and revalveable shock internals
• Manufacturer Part Number: K53028T
