ICON Stage 2 0-3.5" Suspension System with Billet UCAs for 2010-2024 Toyota 4Runner, FJ Cruiser & Lexus GX460

Fits 2010-2024 Toyota 4Runner, 2010-2014 Toyota FJ Cruiser, and 2010-2023 Lexus GX460.

The ICON Stage 2 Suspension System (K53062) is engineered to significantly increase wheel travel and damping performance for drivers who demand superior control both on and off-road. This system features vehicle-specific tuned 2.5-inch front coilovers that are height-adjustable from 0 to 3.5 inches of lift. These extended travel coilovers are paired with ICON billet aluminum upper control arms to maximize front droop travel and maintain proper alignment geometry at increased ride heights.

The included billet 6061 aircraft-grade aluminum UCAs utilize ICON’s Delta Joint, providing the strength of a ball joint with the articulation of a uni-ball. They allow for on-vehicle caster and camber adjustment to ensure precise handling. The rear is supported by 2-inch lift coil springs and 2.0 Aluminum Series internal reservoir shocks, providing a balanced, level stance and heat-dissipating performance during sustained off-road use.

• Adjustable front coilovers provide 0-3.5 inches of lift height
• Billet 6061 aluminum CNC-machined UCAs with Delta Joints
• Corrosion-resistant CAD-plated coilover bodies with 7/8-inch shafts
• 2.0 Aluminum Series rear shocks with 5/8-inch shafts and internal reservoirs
• FK Rod End bearings for minimal deflection and extended service life
• 100% bolt-on installation; no cutting or welding required

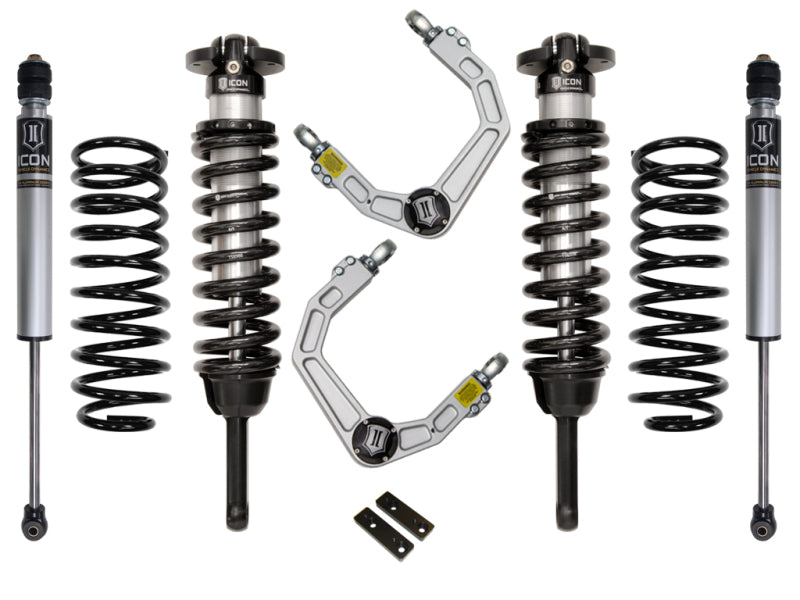

• Includes 2.5-inch coilovers, billet UCAs, rear 2-inch lift springs, and 2.0 rear shocks
• Manufacturer Part Number: K53062
