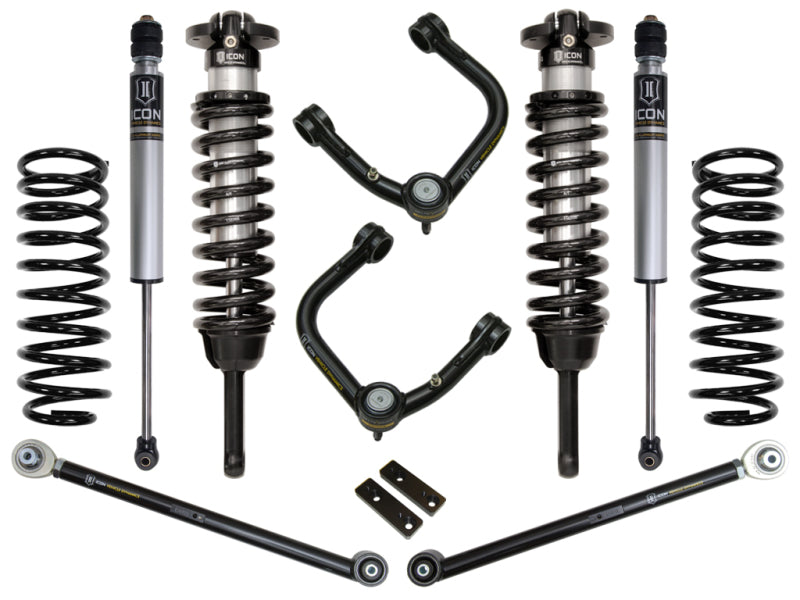

ICON Stage 3 0-3.5" Suspension System w/ Tubular UCAs for Select 2010-2024 Toyota 4Runner, FJ Cruiser & Lexus GX460

Fits select 2010-2024 Toyota 4Runner, 2010-2014 Toyota FJ Cruiser, and 2010-2023 Lexus GX460.

The ICON Vehicle Dynamics Stage 3 suspension system is engineered to significantly increase wheel travel and damping performance for serious off-road use while maintaining excellent on-road handling. This comprehensive kit features vehicle-specific tuned 2.5-inch coilover shocks with internal reservoirs and 7/8-inch shafts, providing 0-3.5 inches of adjustable front lift height to accommodate larger wheel and tire combinations. To correct suspension geometry at these increased lift heights, ICON includes tubular Delta Joint upper control arms that improve caster and durability over factory components.

The Stage 3 system also upgrades the rear suspension with 2-inch lift coil springs for a level stance and 2.0 Aluminum Series internal reservoir shocks. A key differentiator in this kit is the inclusion of ICON tubular steel rear lower links, which are significantly stronger than OE units and feature adjustable lengths for precise pinion angle alignment and multi-durometer bushings for low-maintenance operation.

• Adjustable front coilovers provide 0-3.5" of lift height
• Tubular Delta Joint upper control arms improve strength and alignment geometry
• Tubular rear lower links for increased strength and pinion angle adjustment
• 2.5" diameter front coilovers with corrosion-resistant CAD plated bodies and 7/8" shafts
• 2.0 Aluminum Series rear shocks with internal reservoirs and 5/8" shafts
• 6061 aircraft-grade aluminum CNC-machined components
• FK Rod End bearings for maximum longevity and minimal deflection
• 100% bolt-on installation; no cutting or welding required
• Manufacturer Part Number: K53063T
