ICON Stage 5 0-3.5" Suspension System for 2010-2024 Toyota 4Runner, FJ Cruiser & Lexus GX460 - K53065T

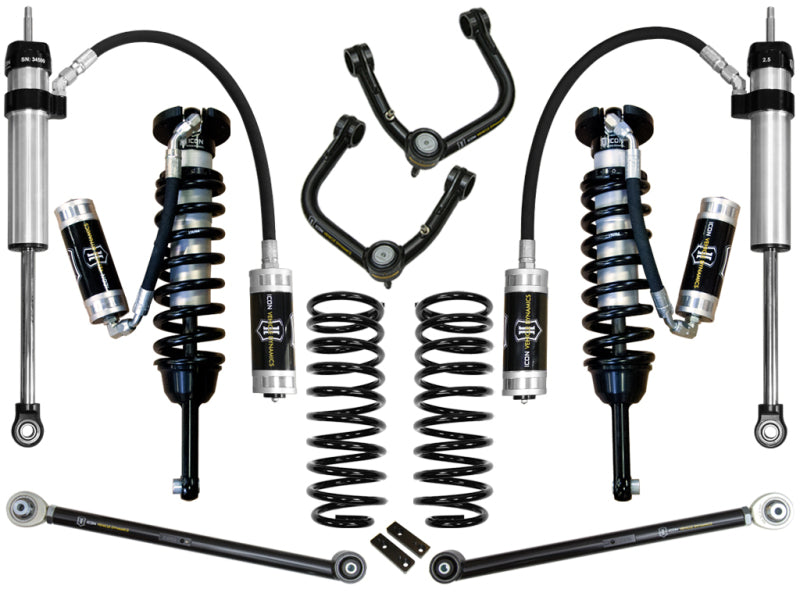

Fits select 2010-2024 Toyota 4Runner, FJ Cruiser, and Lexus GX460 models. This ICON Vehicle Dynamics Stage 5 suspension system is engineered for serious off-road performance and improved vehicle control. This comprehensive kit increases wheel travel and damping capability using vehicle-specific tuned components, including extended travel 2.5” remote reservoir front coilovers and matching 2.5 Aluminum Series remote reservoir rear shocks. The remote reservoirs provide superior cooling during sustained high-speed use, while the rear shocks feature an internal Bump Zone for an additional 20% of damping force to manage hard bottom-outs.

To support the increased lift height and travel, this system includes tubular Delta Joint upper control arms to correct alignment geometry and increase caster. The addition of ICON tubular steel rear lower links provides significantly more strength than factory units and allows for precise pinion angle adjustment. The entire system is a 100% bolt-on solution, requiring no cutting or welding for installation.

• Adjustable coilovers provide 0-3.5” of front lift; rear springs provide 2” of lift.
• Tubular Delta Joint UCAs for added strength and improved caster.
• Tubular rear lower links for improved geometry and pinion adjustment.
• Extended travel 2.5” front and rear shocks with remote reservoirs.
• Corrosion-resistant CAD plated coilover bodies with 7/8” shafts.
• 6061 aircraft-grade aluminum CNC machined components.
• FK Rod End bearings for maximum longevity and minimal deflection.
• Manufacturer Part Number: K53065T
