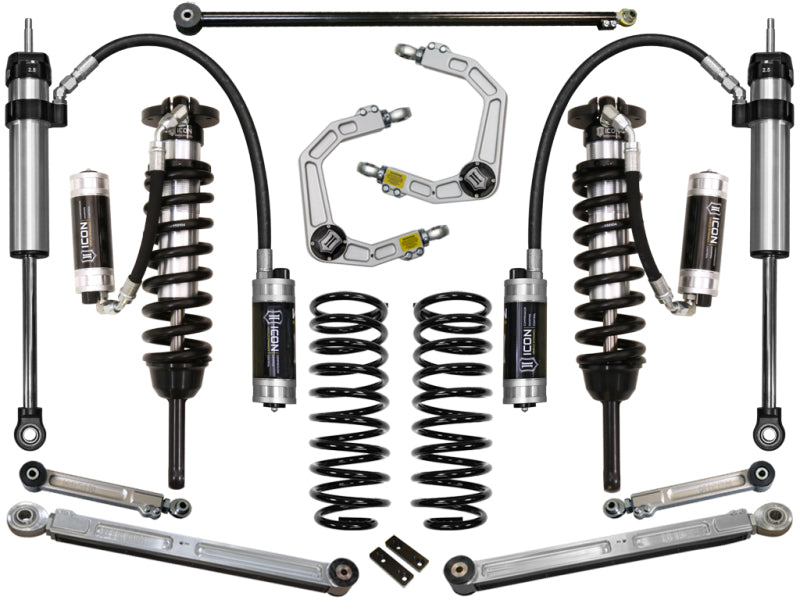

ICON 2010+ Toyota FJ/4Runner 0-3.5in Stage 7 Suspension System w/Billet Uca

ICON Vehicle Dynamics 2010-2024 Toyota 4Runner and 2010-2014 Toyota FJ Cruiser suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers’ primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. This Stage 7 system includes vehicle-specific tuned, extended travel 2.5” coilover shocks featuring CDCV equipped remote reservoirs for exceptional cooling properties and ICON-engineered coil springs for superior vehicle “feel” through the range of travel. These coilovers are also height adjustable for 0-3.5” of front lift over stock, allowing the use of larger, more aggressive wheel and tire combinations. The ICON CDC Valve is an externally adjustable valve that restricts oil flow into the reservoir which creates 10 levels of compression damping force ranges. Billet aluminum Delta Joint upper control arms not only add strength and durability but help retain factory alignment specs, offer on-vehicle caster/camber adjustment, and allow proper wheel alignment at the lift height this system provides. ICON billet aluminum adjustable rear upper and lower links are made from CNC machined 6061 aluminum and anodized for corrosion resistance. These link arm kits feature PTFE-lined FK rod ends and greaseable polyurethane bushings for increased suspension articulation, reduced deflection, and on-vehicle link arm length adjustability. ICON rear coil springs deliver on-road comfort and superior off-road performance with 2” of rear lift height over stock for a level stance front to rear. An adjustable rear track bar is included to provide proper rear axle alignment, improve articulation, and ensure fitment on KDSS equipped 4Runners. The 2.5 Aluminum Series CDCV remote reservoir rear shocks’ larger diameter offers outstanding performance off-road and a smooth ride on the street with adjustable compression damping.

• 2.5 Aluminum Series rear shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
• Billet aluminum upper control arms for added strength, durability, adjustability, and improved alignment geometry
• CDC Valve technology allows for quick and easy compression damping adjustment without the need for tools
• Extended Travel remote reservoir coilovers matched with ICON UCAs provide increased front droop travel
• Billet Aluminum rear upper and lower links offer on vehicle pinion angle adjustment
• Vehicle specific tuned front and rear shocks for superior shock damping and control
• Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
• Adjustable rear track bar proper rear axle placement under vehicle
• FK Rod End bearings for extended longevity and minimal deflection
• Bolt-on system means no cutting or welding necessary for install
• Adjustable coilovers provide 0-3.5" of front lift height
• 6061 aircraft grade aluminum CNC machined components
• Increased wheel travel and ride quality over stock

This Part Fits:
