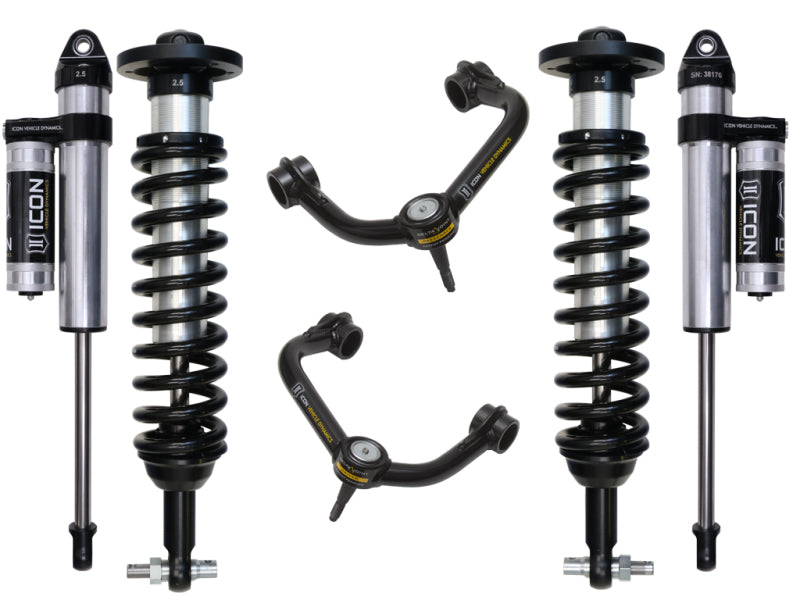

ICON Stage 3 0-2.63" Lift Suspension System for 2015-2020 Ford F-150 4WD with Tubular UCAs (K93083T)

Fits 2015-2020 Ford F-150 4WD models (XL, XLT, Lariat, King Ranch, Platinum, Limited, Raptor, SSV, and Police Responder).

The ICON Vehicle Dynamics Stage 3 suspension system is engineered to provide the serious driver with maximum performance, increased wheel travel, and enhanced damping capability for 2015-2020 Ford F-150 4WD trucks. This comprehensive system addresses front-end geometry and rear damping to deliver superior ride quality and vehicle control on the street or in technical terrain.

The front suspension features vehicle-specific tuned 2.5-inch coilover shocks with internal reservoirs and ICON-engineered Eibach coil springs. These coilovers offer adjustable lift heights from 0-2.63 inches, accommodating larger wheel and tire combinations. To complement the increased travel, the included tubular upper control arms (UCAs) add critical strength and help retain the factory alignment range by increasing caster over the stock configuration. For the rear, ICON 2.5 Aluminum Series piggyback reservoir shocks utilize application-specific valving to balance the truck's performance and ensure consistent cooling under heavy use.

• Part Number: K93083T
• Adjustable front coilovers provide 0-2.63 inches of lift height
• Tubular upper control arms increase strength and caster for improved alignment
• 2.5-inch front coilover bodies with CAD plating and 7/8-inch shafts
• 2.5 Aluminum Series rear shocks with one-piece impact extruded aluminum cylinders
• FK rod end bearings for maximum longevity and minimal deflection
• 6061 aircraft-grade aluminum CNC machined components
• High-strength alloy CNC machined lower bar pins
• 100% Bolt-on system; no cutting or welding required for installation
