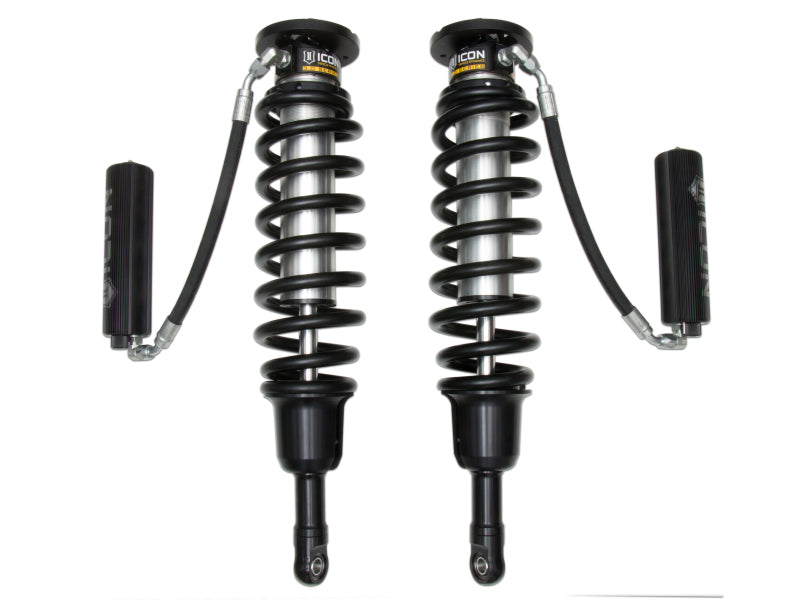

ICON VS 3.0 Series RR CDCV Front Coilover Kit for 2017-2021 Ford F-150 Raptor (1-3" Lift) - 95002

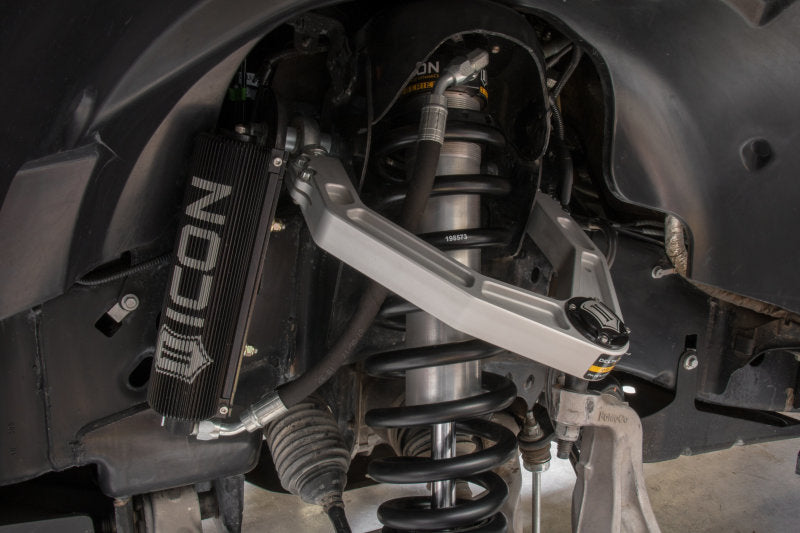

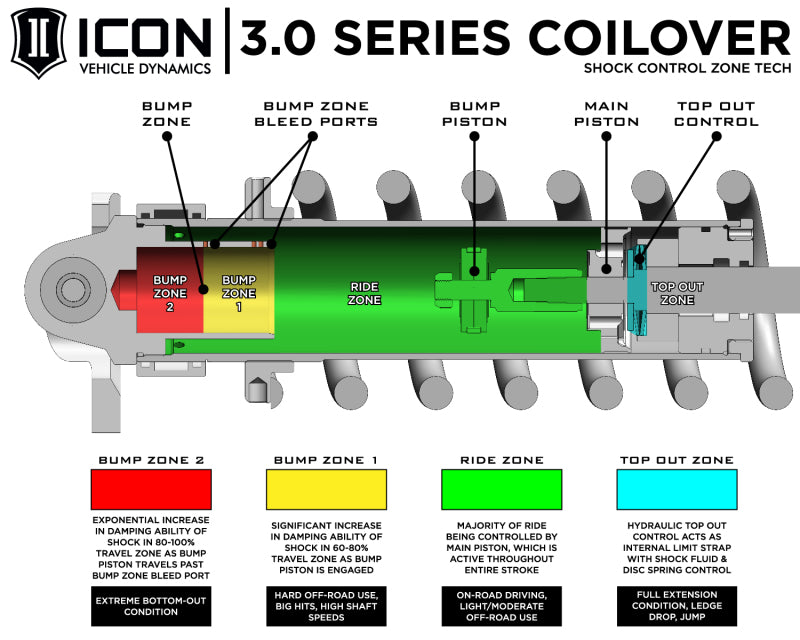

Fits 2017-2021 Ford F-150 Raptor. This ICON VS 3.0 Series RR CDCV Front Coilover Kit is engineered to replace factory shocks with a high-performance system capable of 1-3 inches of front lift. Designed specifically for the Gen 2 Raptor chassis, these coilovers utilize a barreled coil spring to maximize shaft travel and packaging efficiency. The internal multi-stage hydraulic "Bump Zone" provides an exponential increase in damping during the final 40% of compression travel, significantly improving bottom-out resistance during aggressive off-road use.

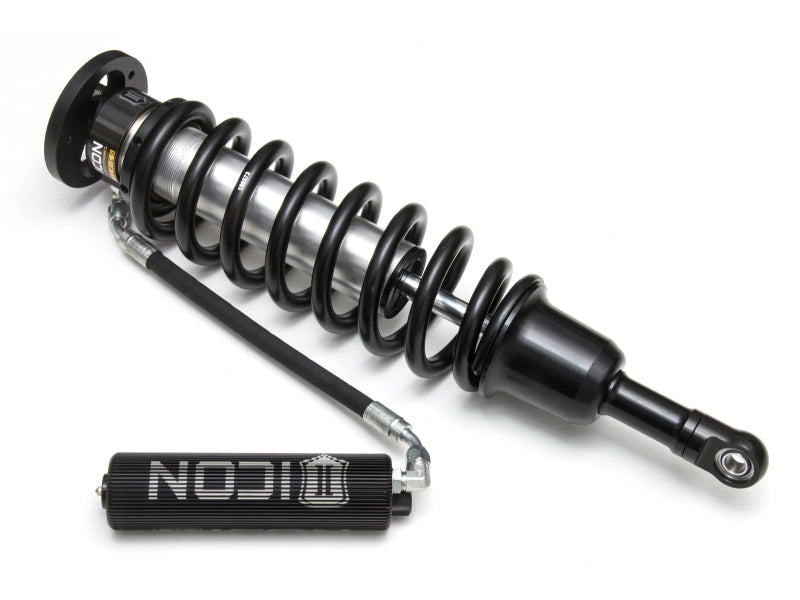

For thermal management, the system includes 10-inch finned aluminum remote reservoirs that increase oil volume and surface area for superior cooling. Integrated CDC Valve (Compression Damping Control) technology offers 10 distinct settings, allowing you to manually adjust the ride feel to accommodate various terrains and cargo loads. Built with a 1-inch CNC-machined shaft and FK Rod End COM12 spherical bearings, these coilovers are fully serviceable to ensure a long-term service life.

• Direct bolt-in replacement for 2017-2021 Ford F-150 Raptor
• Adjustable 1-3 inch front lift height
• 10-setting CDC Valve for external compression damping adjustment
• 10-inch finned aluminum reservoirs for maximum heat dissipation
• Hydraulic "Bump Zone" for superior bottom-out control
• 50% more damping area in the ride zone compared to OE shocks
• CAD plated shock bodies with hard anodized pistons and top caps
• 1-inch diameter CNC machined shock shafts
• Manufacturer Part Number: 95002
