ICON Stage 2 Suspension System 2-3" Lift for 2019-2023 Ram 1500 with Tubular Delta Joint UCAs - K213112T

Fits 2019-2023 Ram 1500 (Big Horn, HFE, Laramie, Limited, Lone Star, Rebel, and Tradesman trims).

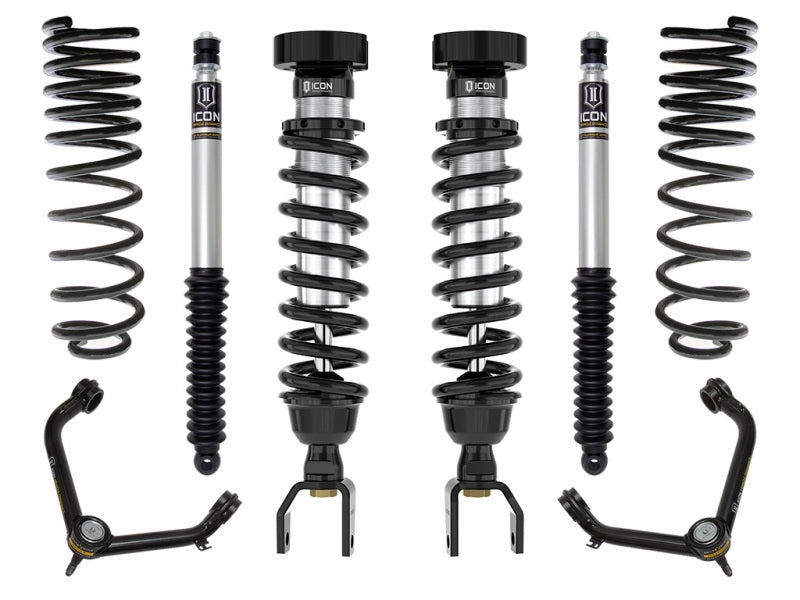

The ICON Vehicle Dynamics Stage 2 suspension system is engineered to provide the 2019-2023 Ram 1500 with increased wheel travel and superior damping control. This comprehensive kit addresses the front end with vehicle-specific tuned 2.5-inch diameter coilovers featuring internal reservoirs and CAD-plated shock bodies. These coilovers are height-adjustable from 2-3 inches of front lift over stock, allowing for larger wheel and tire combinations while improving off-road performance through increased travel and 7/8-inch shafts.

To maintain proper alignment and durability at increased lift heights, this system includes tubular Upper Control Arms (UCAs) equipped with ICON’s patented Delta Joint ball joints. These UCAs increase caster over stock and provide the range of motion necessary for high-performance use. The rear is supported by dual-rate coil springs providing 1.5 inches of lift, paired with 2.0 Aluminum Series internal reservoir shocks with 5/8-inch polished shafts for balanced valving and bottoming resistance.

• Front coilovers adjustable for 2-3" of lift; 2.5" CAD-plated bodies with 7/8" shafts
• Tubular Upper Control Arms with Delta Joint ball joints for added strength and alignment range
• Dual-rate rear coil springs provide 1.5" lift and improved ride quality
• 2.0 Aluminum Series rear shocks with 5/8" polished shafts and internal reservoirs
• 6061 aircraft-grade aluminum CNC machined components
• FK rod end bearings for maximum longevity and minimal deflection
• 100% bolt-on installation; no drilling, cutting, or welding required
• Manufacturer Part Number: K213112T
