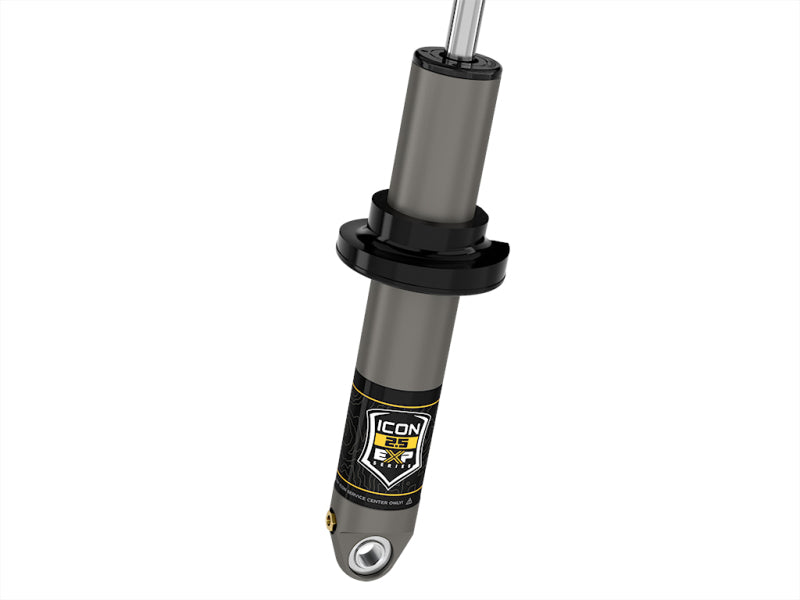

ICON 2.5 Series EXP Rear Coilover Shock for 2021-2023 Ford Bronco HOSS 1.0

Fits 2021-2023 Ford Bronco Base, Big Bend, Black Diamond, and Outer Banks models equipped with the HOSS 1.0 suspension package.

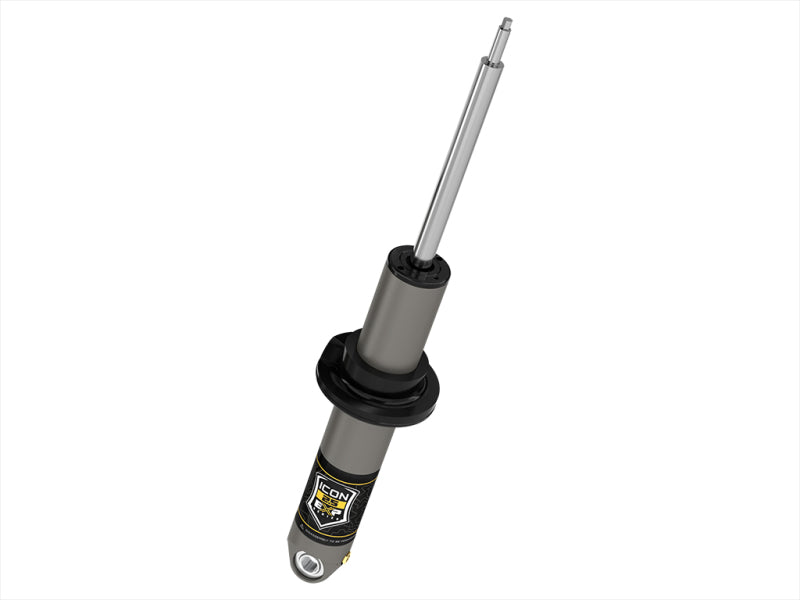

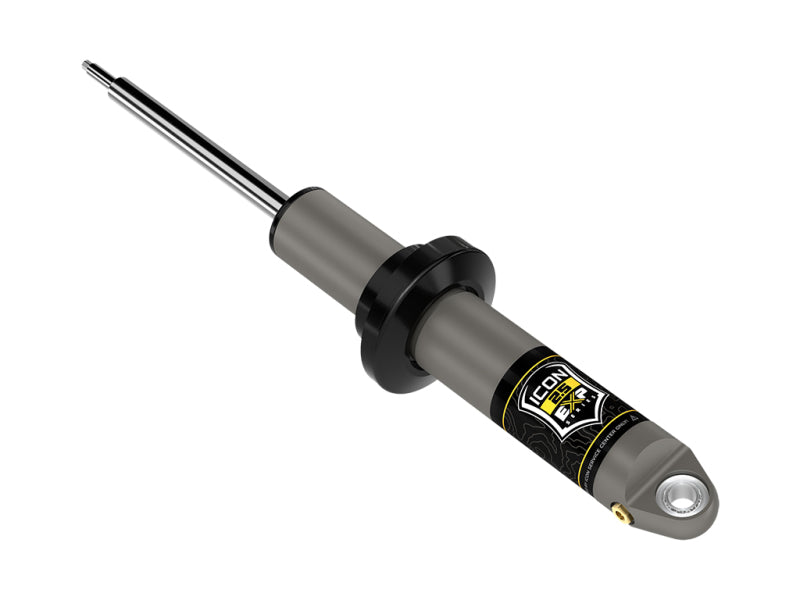

The ICON Vehicle Dynamics 2.5 Series EXP shock is a performance-engineered upgrade designed to bridge the gap between standard replacement shocks and premium coilover systems. These shocks utilize a one-piece digressive piston design, custom-tuned specifically for the Ford Bronco to work in harmony with factory coil springs. The 2.5-inch diameter impact-extruded aluminum body provides significantly more oil volume and surface area than the smaller OE steel shocks, ensuring superior heat dissipation and consistent damping performance during high-speed use and through rough terrain.

Featuring a 7/8-inch induction-hardened, chrome-plated shaft in an inverted orientation, the EXP series is built for durability and reduced unsprung weight. The adjustable snap-ring design allows for 1.5 to 2.25 inches of rear lift over stock, allowing you to level your vehicle or clear larger tire fitments. These units are 100% bolt-on, utilizing factory coil hardware, and are fully rebuildable and re-valvable by qualified technicians.

• 2.5-inch impact-extruded, hard-anodized aluminum cylinder for corrosion resistance
• Adjustable ride heights from 1.5-2.25 inches of rear lift via snap-ring
• Internal reservoir for increased oil capacity and cooling
• One-piece digressive piston custom tuned for Bronco-specific ride quality
• PTFE-lined spherical bearings for minimal deflection and maximum longevity
• CNC-machined 6061 black anodized aluminum components
• 7/8-inch diameter induction-hardened, chrome-plated shaft

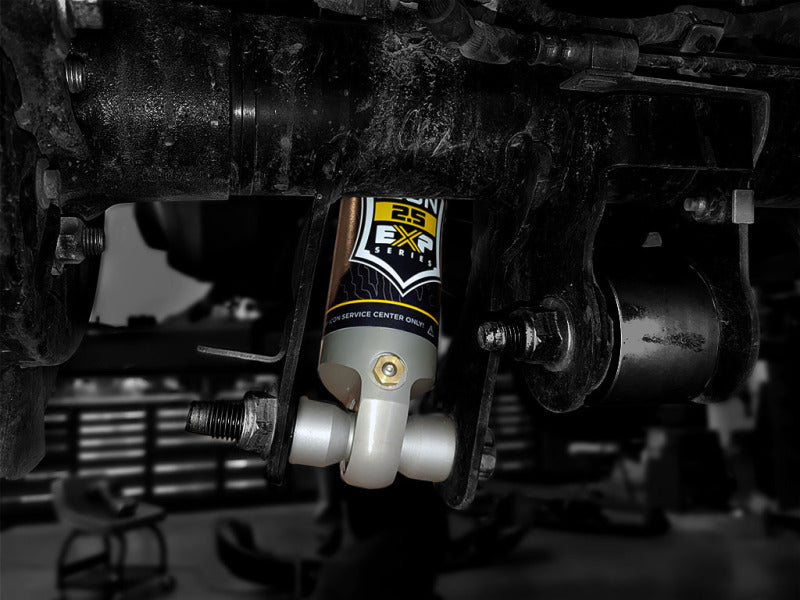

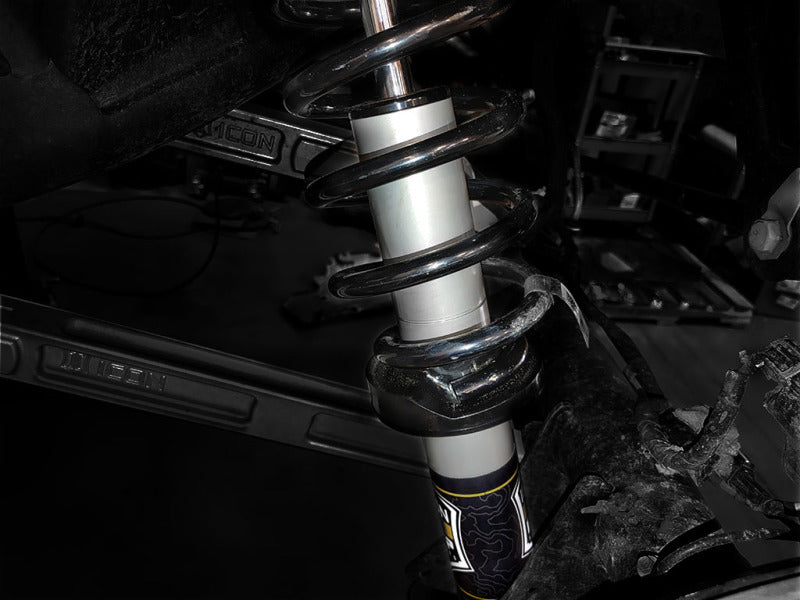

• Direct bolt-on installation; utilizes factory coil springs and hardware
• Manufacturer Part Number: 48611
