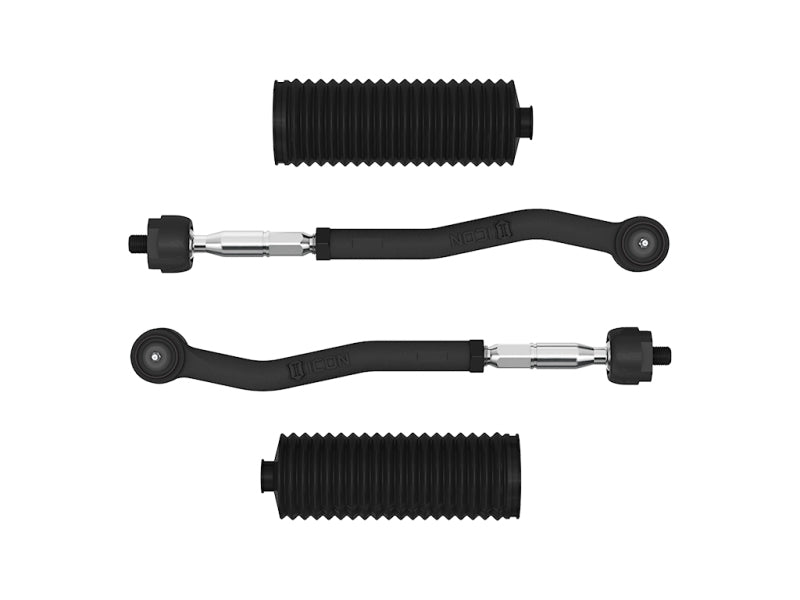

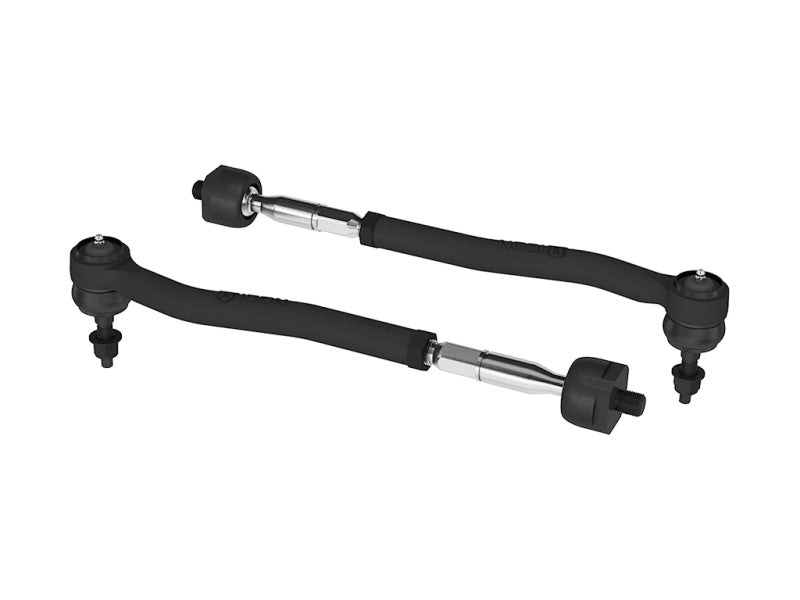

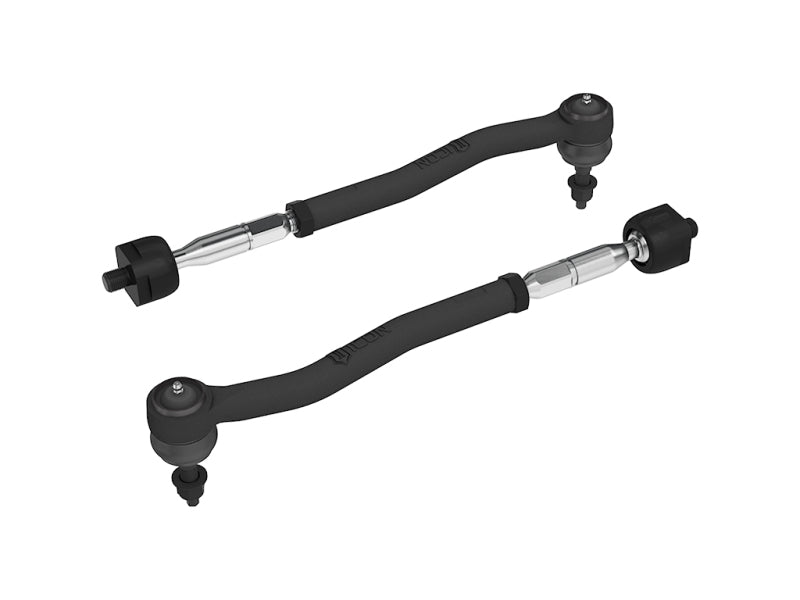

ICON XD Forged Tie Rod Kit for 2021-2023 Ford Bronco - 45212

Fits 2021-2023 Ford Bronco models (Base, Big Bend, Black Diamond, Outer Banks, Badlands, Wildtrak, Everglades, First Edition, and Heritage Edition).

The ICON XD Forged Tie Rod Kit addresses the documented strength limitations of factory Ford Bronco steering components, especially for vehicles equipped with larger tires and navigating technical terrain. This kit (MPN 45212) replaces vulnerable OE units with components engineered for superior durability and higher operating loads. The inner tie rod and ball stud are CNC-machined from high-strength 4140 chromoly, providing a 30% larger diameter than stock units.

A critical upgrade occurs at the adjustment threads, which ICON has increased to 18mm compared to the 14mm factory threads to prevent common failure points under stress. The forged steel outer tie rod ends are designed with the same bend as factory units to ensure compatibility with original equipment wheel offsets and diameters, as well as most aftermarket wheels. These tie rods feature a greaseable, metal-on-metal joint design to ensure a long service life and smooth articulation throughout the suspension travel.

• CNC-machined 4140 chromoly inner ball studs
• Forged steel outer tie rod ends with factory-matching clearance
• 18mm adjustment threads for maximum shear strength
• 30% larger diameter than factory tie rods
• Greaseable metal-on-metal ball joints with integrated zerks
• Protective inner tie rod boots included to seal out debris
• Manufacturer Part Number: 45212
• Limited lifetime warranty
