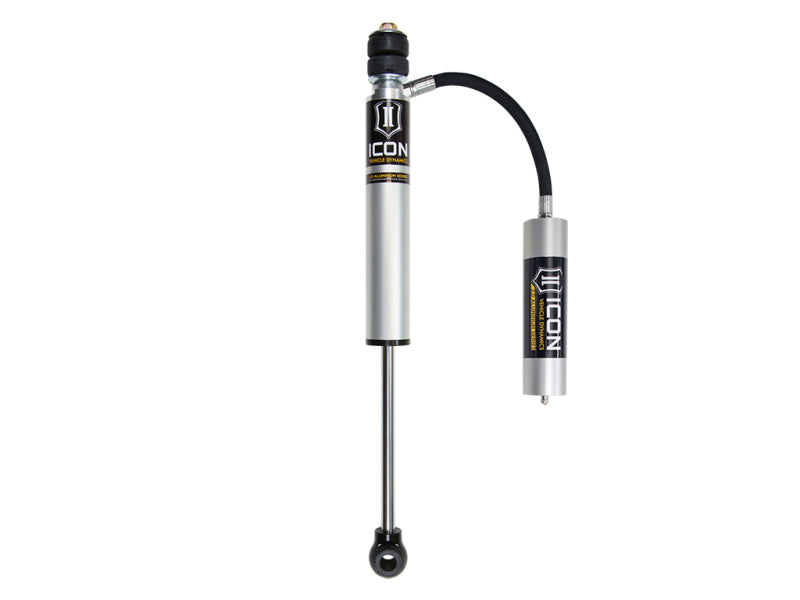

ICON 2022-2025 Toyota Tundra & Sequoia Rear V.S. 2.0 Aluminum Series Remote Reservoir Shocks (0-1" Lift)

Fits 2022-2025 Toyota Tundra and 2023-2025 Toyota Sequoia (all trims). These ICON V.S. 2.0 Aluminum Series remote reservoir rear shocks (MPN: 56516R) are engineered to improve both street manners and off-road capability for vehicles with 0-1 inch of rear lift. The nitrogen-charged monotube design features a remote reservoir to increase oil volume and surface area, significantly improving heat dissipation during aggressive use.

Constructed from 6063 anodized aluminum, these shocks are built for corrosion resistance and longevity. The linear/digressive piston is tuned specifically for the Tundra and Sequoia platform to provide a controlled ride that eliminates the wallow of factory damping. Like all ICON V.S. Series shocks, these units are fully rebuildable and re-tunable to ensure a long service life.

• 6063 anodized aluminum body and reservoir for superior heat dissipation
• Remote reservoir design increases cooling capacity and damping consistency
• 5/8-inch chrome plated hardened steel shaft resists pitting and corrosion
• One-piece linear/digressive piston with vehicle-specific valving
• Premium 5WT shock oil maintains consistent viscosity across temperature ranges
• Polyurethane bushings and zinc-plated sleeves for an OE-style fit
• Nitrogen charged monotube design with 6061 aluminum internals
• Fully rebuildable and re-tunable (MPN: 56516R)
