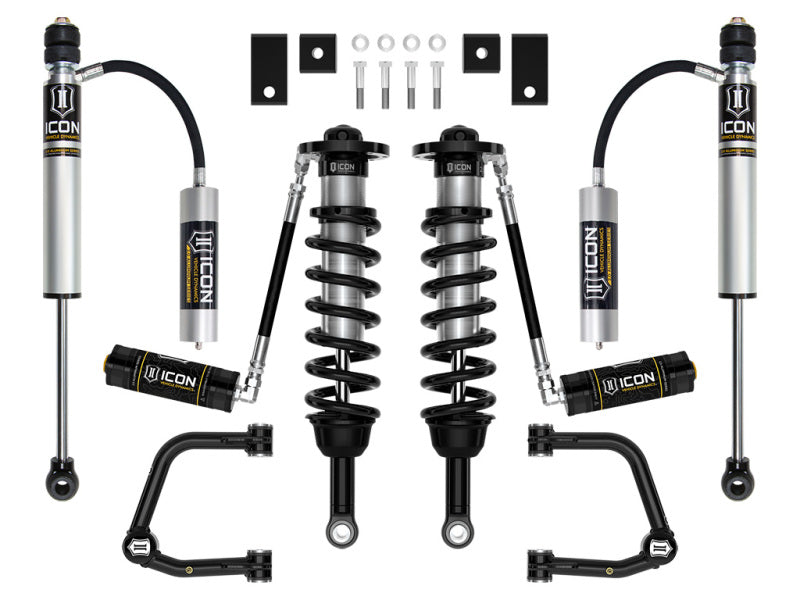

ICON Stage 6 Suspension System Tubular 1.25-3.5in Lift for 2022-2025 Toyota Tundra/Sequoia

Fits select 2022-2025 Toyota Tundra and Sequoia models. This ICON Stage 6 suspension system (MPN: K53196T) is engineered to provide a 40% increase in front wheel travel while offering adjustable lift heights from 1.25" to 3.5" over stock. At the core of this system are the VS 2.5 Series front coilovers and 2.0 Aluminum Series rear shocks, both featuring remote reservoirs for increased oil volume and superior heat dissipation during heavy off-road use.

To support the increased travel and ride height, this kit includes ICON tubular front upper control arms equipped with the patented Delta Joint Pro (U.S. Pat. 10,731,700), providing 90 degrees of total articulation and corrected alignment geometry. The 100% bolt-on design ensures a straightforward installation without the need for cutting or welding.

• VS 2.5 Series front coilovers with remote reservoirs for optimized damping and cooling
• 2.0 Aluminum Series rear remote reservoir shocks for balanced performance
• Adjustable front lift height of 1.25-3.5" for larger wheel and tire clearance
• Tubular UCAs with Delta Joint Pro for high-angle articulation and durability
• Sway bar drop brackets included to reduce bind in factory links
• All ICON shock absorbers are fully rebuildable and re-tunable
• Direct bolt-on fitment for 2022-2025 Tundra and Sequoia
• Manufacturer Part Number: K53196T
