ICON Stage 7 2-3.5" Tubular Suspension System for 2022-2025 Toyota Tundra & Sequoia

Fits select 2022-2025 Toyota Tundra and 2023-2025 Toyota Sequoia models, including TRD Pro, 1794 Edition, and Capstone trims.

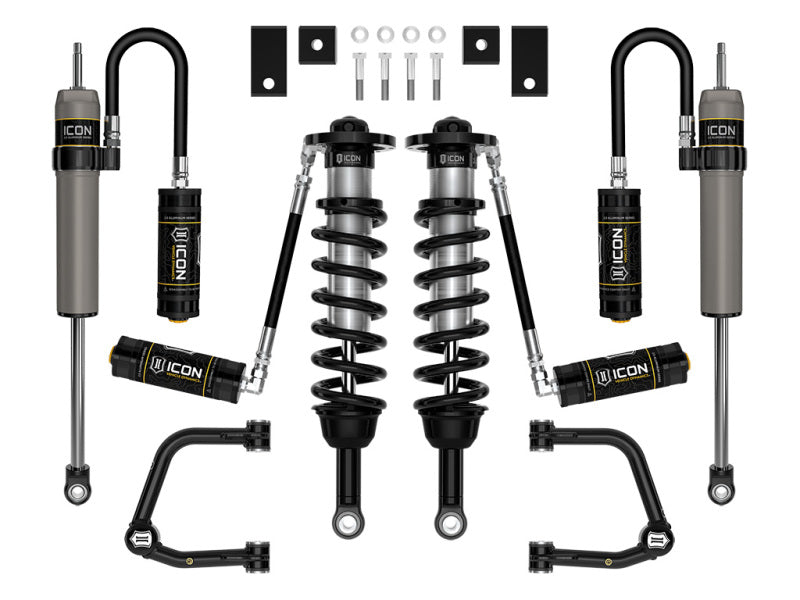

The ICON Vehicle Dynamics Stage 7 suspension system provides a comprehensive handling upgrade for the modern Tundra and Sequoia platforms. This system centers on V.S. 2.5 Series front coilovers and 2.5 Aluminum Series rear remote reservoir shocks, offering superior damping, improved cooling, and a balanced ride on both technical trails and the highway. The remote reservoirs increase fluid capacity to maintain consistent damping during heavy use, while the unique internal Bump Zone provides an additional 20% of damping force to control hard bottom-out events.

For improved geometry and durability, this kit includes ICON tubular upper control arms (UCAs) featuring the patented Delta Joint Pro. These UCAs provide up to 90 degrees of articulation and allow for a 40% increase in wheel travel over the factory setup. Included sway bar drop brackets reduce binding, ensuring the OE components operate within their intended range even at increased ride heights.

• Adjustable front ride height: 2-3.5 inches of lift
• ICON V.S. 2.5 Series front remote reservoir coilovers
• 2.5 Aluminum Series rear remote reservoir shocks with internal Bump Zone
• Tubular UCAs with Delta Joint Pro (90 degrees of articulation)
• Up to 40% increase in front wheel travel
• Sway bar drop brackets included for bind-free operation
• Fully rebuildable and re-tunable shock absorbers
• Manufacturer Part Number: K53197T
