ICON 2024-2025 Toyota Land Cruiser 250 Series 1.25-3" Stage 7 Tubular Suspension System - K53367T

Fits 2024-2025 Toyota Land Cruiser 250 Series models (1958, Base, and First Edition).

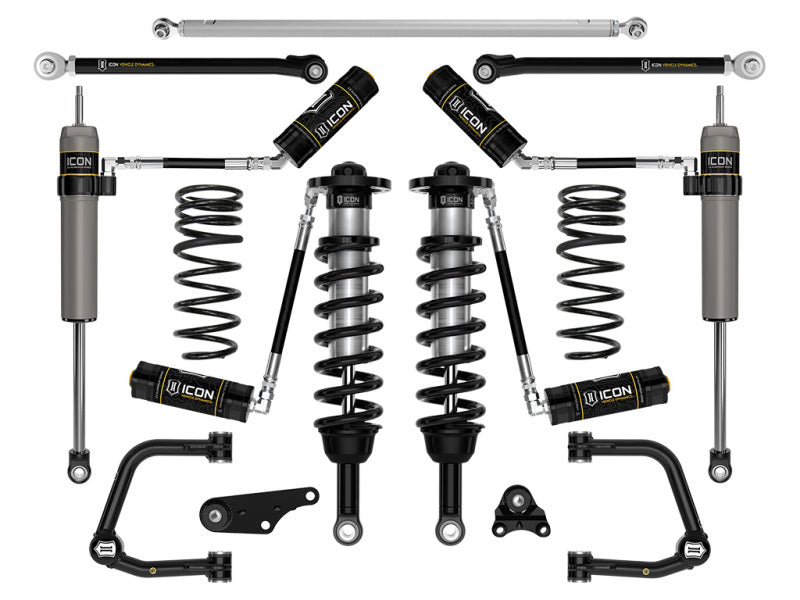

The ICON Vehicle Dynamics Stage 7 Suspension System is engineered to maximize the performance and handling of the Toyota Land Cruiser 250 Series. This comprehensive kit provides a 1.25-3" front lift and a 2" rear lift, accommodating larger tire fitments while improving off-road articulation and on-road stability. At the core of this system are 2.5 Series front coilovers and 2.5 Aluminum Series rear shocks, both featuring remote reservoirs for superior damping and heat dissipation during extended off-road use.

This Stage 7 system includes ICON’s tubular upper control arms (UCAs) equipped with the patented Delta Joint PRO, offering 90 degrees of total articulation and corrected front-end geometry. To maintain drivetrain integrity, a front differential drop is included to optimize CV joint angles. The rear suspension is overhauled with dual-rate coil springs, tubular lower links, and a billet adjustable track bar to ensure the axle remains centered and the pinion angle is correctly set.

• MPN: K53367T
• Front Lift Height: Adjustable 1.25-3" over stock
• Rear Lift Height: 2" over stock
• Shocks: 2.5 Series remote reservoir coilovers and rear shocks with 7/8" shafts
• Upper Control Arms: Tubular steel with Delta Joint PRO (U.S. Pat. 10,731,700)
• Rear Components: Billet adjustable track bar and tubular lower links with dual-durometer bushings
• Construction: 6061 aircraft-grade aluminum CNC-machined components and CAD-plated shock bodies
• Hardware: High-quality FK rod end bearings for minimal deflection
