ICON Stage 8 CDCV 1.25-3" Lift Kit for 2024-2025 Toyota Land Cruiser (K53368T)

Fits 2024-2025 Toyota Land Cruiser (1958, Base, and First Edition).

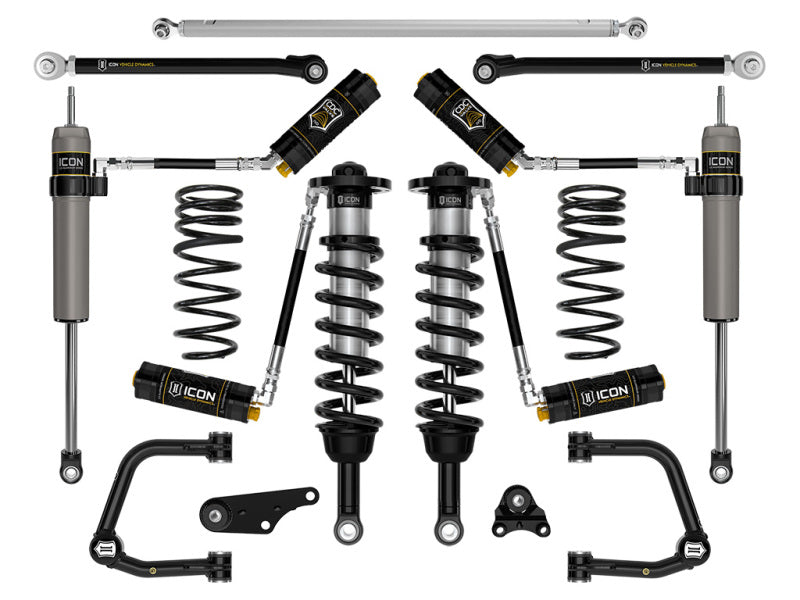

The ICON Vehicle Dynamics Stage 8 suspension system is the flagship performance upgrade for the 250 Series Land Cruiser. This comprehensive kit features 2.5 Series front coilovers and 2.5 Aluminum Series remote reservoir rear shocks equipped with Compression Damping Control Valve (CDCV) technology. These valves provide 10 precise settings of compression damping adjustment to fine-tune ride quality for any terrain or load. The system provides 1.25-3" of front lift and 2" of rear lift, leveling the stance while significantly increasing wheel travel.

To ensure proper front-end geometry, ICON includes tubular upper control arms featuring the patented Delta Joint Pro, which allows for up to 90 degrees of total articulation without binding. The rear suspension is overhauled with a billet aluminum adjustable track bar to re-center the axle and tubular rear lower links with dual-durometer greaseless bushings. These components provide superior articulation, pinion angle adjustment, and road noise isolation for a refined yet capable off-road experience.

• Manufacturer Part Number: K53368T
• Adjustable front lift height: 1.25-3"
• Rear lift height: 2" over stock for a level stance
• 2.5 Series coilovers and shocks with remote reservoirs and 7/8" shafts
• 10-setting CDCV (Compression Damping Control Valve) adjustment
• Delta Joint Pro UCAs (U.S. Pat. 10,731,700) with 90-degree articulation
• Billet 6061 aluminum adjustable rear track bar
• Tubular rear lower links with FK Rod End bearings and greaseless bushings
• Dual-rate rear coil springs for improved bottoming resistance
• Front differential drop kit included for optimal CV joint angles
• Corrosion-resistant CAD plated shock bodies
