ICON Stage 4 Suspension System 1.25-3" Lift with Billet UCAs for Select 2024-2025 Toyota Tacoma (K53294)

Fits select 2024-2025 Toyota Tacoma models (SR5, TRD Off-Road, TRD Sport, and Limited).

The ICON Vehicle Dynamics Stage 4 Suspension System is engineered to improve the off-road performance and ride quality of the 2024-2025 Toyota Tacoma. This system features vehicle-specific tuned 2.5 Series front coilovers and rear shocks, both equipped with remote reservoirs. These reservoirs significantly increase oil volume and surface area for heat dissipation, preventing shock fade and cavitation during aggressive use. The front coilovers are height-adjustable from 1.25 to 3 inches of lift, allowing for larger, more aggressive tire fitments.

To maximize suspension travel and durability, this Stage 4 kit includes ICON billet aluminum upper control arms (UCAs) featuring the patented Delta Joint Pro. These UCAs provide up to 90 degrees of total articulation and allow for on-vehicle caster and camber adjustment. The included front differential drop brackets, paired with polyurethane mounting bushings, correct CV axle angles and limit differential movement under load to prevent binding.

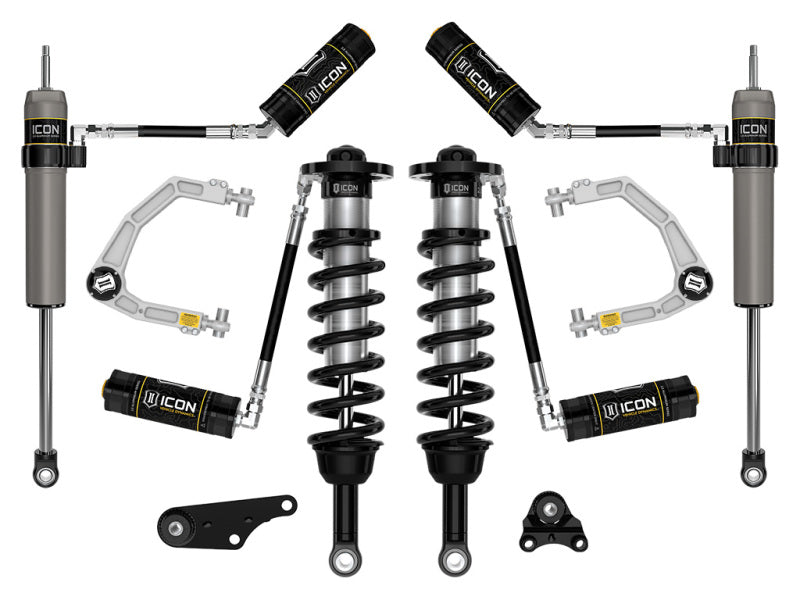

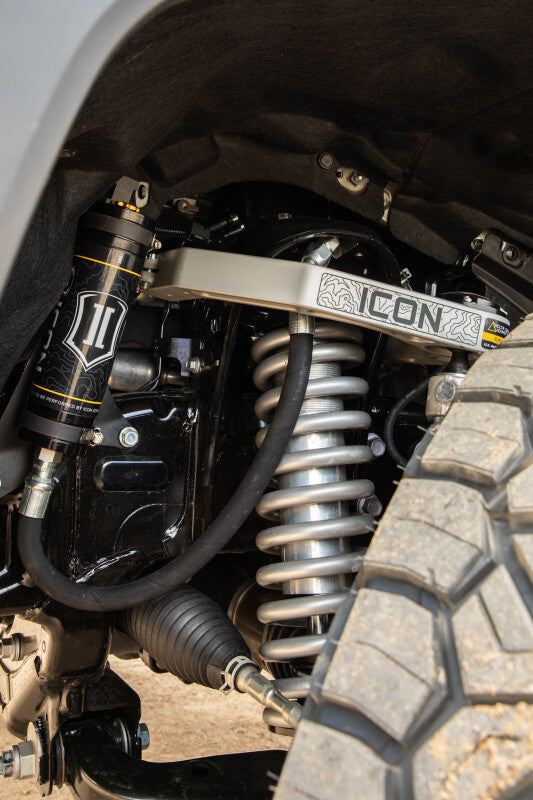

• 2.5 Series front coilovers and rear shocks with remote reservoirs and 7/8" shafts

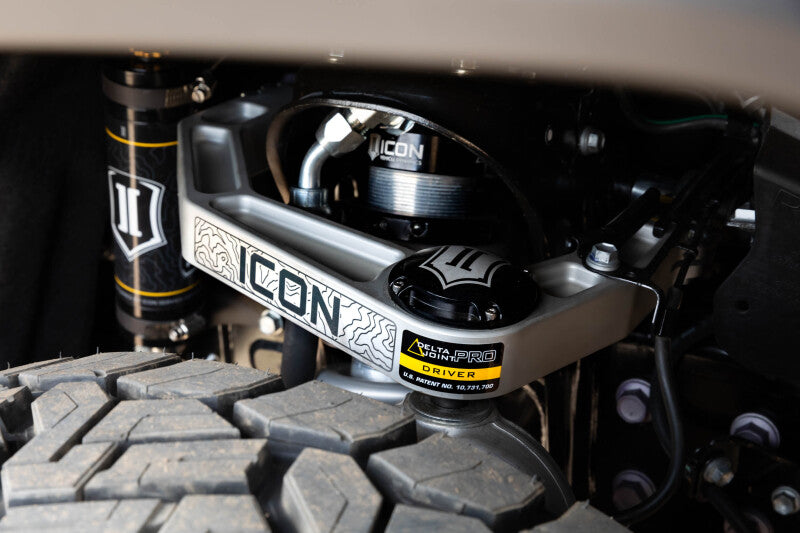

• 6061 aircraft-grade CNC-machined billet aluminum upper control arms
• Patented Delta Joint Pro (U.S. Pat. 10,731,700) for maximum articulation
• Corrosion-resistant CAD-plated coilover bodies and FK Rod End bearings
• Front differential drop kit to maintain optimal CV joint angles on 4WD models
• ICON-engineered coil springs for superior feel through the full range of travel
• Adjustable lift height from 1.25" to 3" over factory stock
• Manufacturer Part Number: K53294
