ICON Stage 5 Suspension System 1.25-3" Lift for 2024-2025 Toyota Tacoma - Billet (K53295)

Fits 2024-2025 Toyota Tacoma Limited, SR5, TRD Off-Road, and TRD Sport.

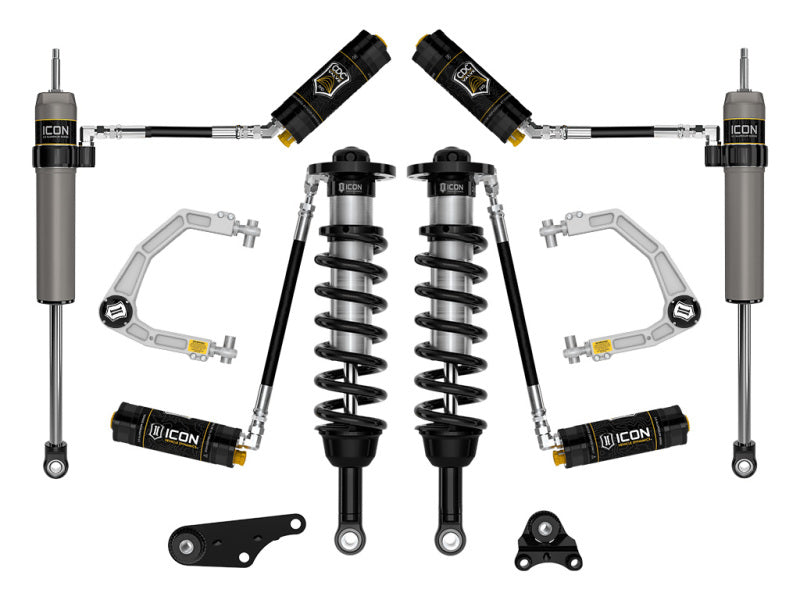

The ICON Stage 5 Suspension System is a comprehensive performance upgrade for the 2024-2025 Toyota Tacoma, providing 1.25 to 3 inches of adjustable front lift height. This system is designed to increase wheel travel and damping performance for high-speed off-road use while maintaining refined street manners. The kit features 2.5 Series remote reservoir coilovers and rear shocks, significantly increasing oil volume and heat dissipation to prevent shock fade during aggressive driving.

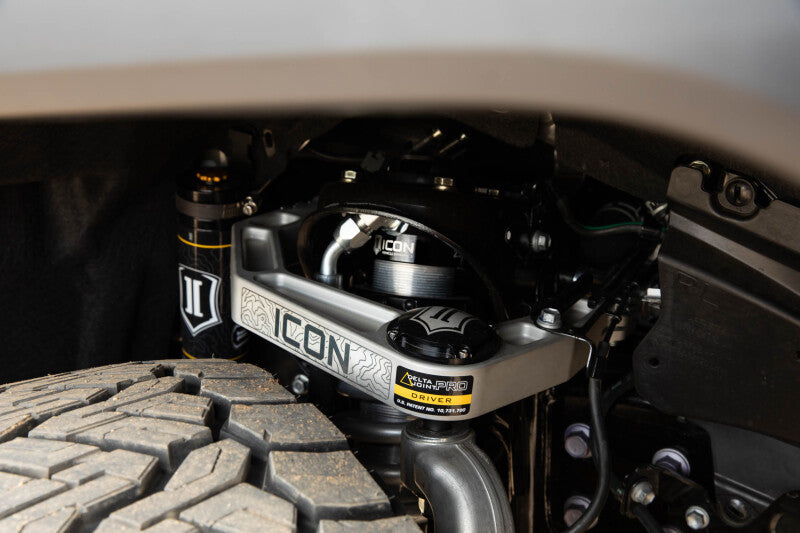

Equipped with ICON’s CDC (Compression Damping Control) Valves, this system allows for 10 levels of external adjustment to fine-tune the ride for various terrains and cargo loads. The included 6061 billet aluminum Upper Control Arms (UCAs) feature the patented Delta Joint Pro, providing 90 degrees of articulation and allowing for on-vehicle caster and camber adjustment. To ensure drivetrain longevity at increased lift heights, the system includes a front differential drop bracket and polyurethane bushings to optimize CV angles and reduce differential movement.

• 2.5 Series front and rear remote reservoir shocks with 7/8-inch shafts
• ICON CDC Valves for 10-position external compression damping adjustment
• Billet aluminum UCAs with patented Delta Joint Pro (U.S. Pat. 10,731,700)
• Adjustable front lift height of 1.25-3 inches over stock
• CAD-plated shock bodies for superior corrosion resistance
• Front differential drop kit to prevent CV bind and maximize travel
• FK Rod End bearings for reduced deflection and increased longevity
• CNC-machined 6061 aircraft-grade aluminum components
• Manufacturer Part Number: K53295
