ICON Stage 5 1.25-3in Suspension System with Billet UCAs for 2024-2025 Toyota Tacoma

Fits 2024-2025 Toyota Tacoma (SR5, TRD Off-Road, TRD Sport, and Limited).

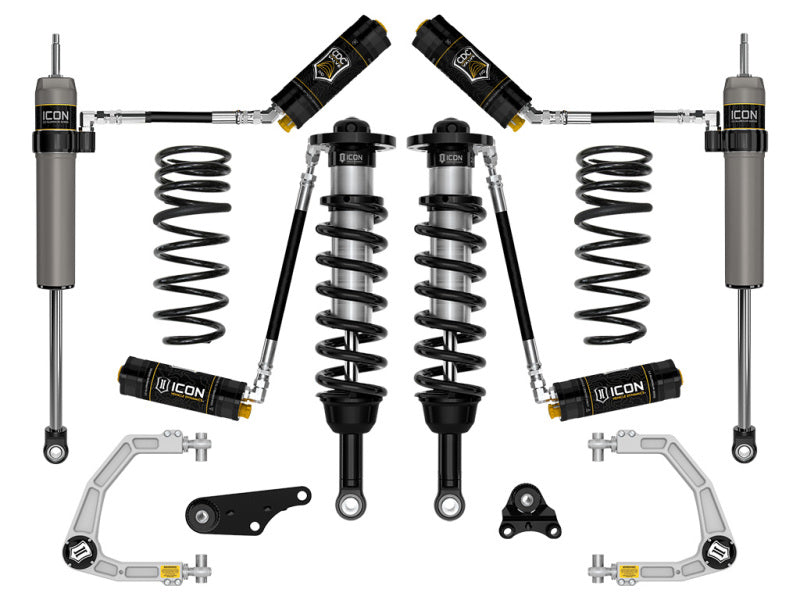

The ICON Vehicle Dynamics Stage 5 suspension system is engineered for the serious driver demanding maximum damping performance and wheel travel from their 2024-2025 Toyota Tacoma. This comprehensive system (MPN K53295S) centers around 2.5 Series front coilovers and 2.5 Aluminum Series rear shocks, both featuring remote reservoirs and ICON’s CDC (Compression Damping Control) Valves. These externally adjustable valves provide 10 levels of compression damping force, allowing you to fine-tune the suspension for everything from high-speed desert runs to heavy towing.

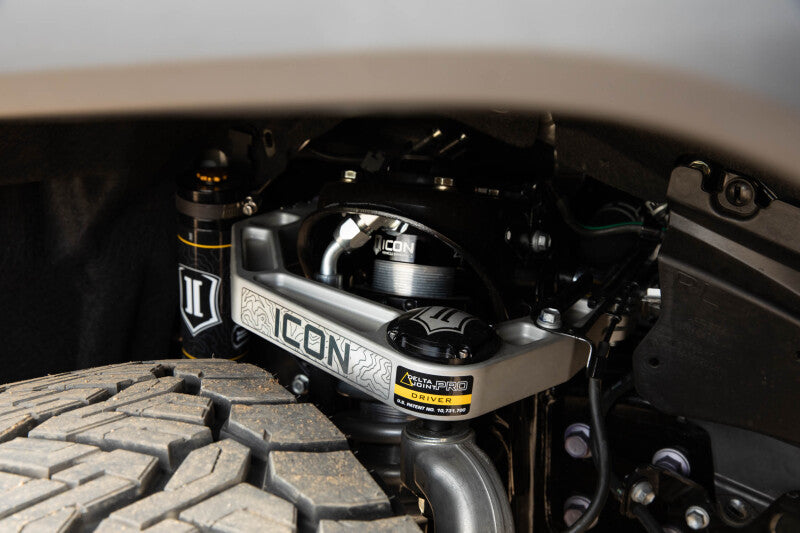

Front-end geometry is enhanced with billet 6061 aircraft-grade aluminum Upper Control Arms (UCAs). These arms feature the patented Delta Joint Pro, providing 90 degrees of total articulation and on-vehicle caster/camber adjustment for precise alignment. To accommodate the 1.25-3" lift height without compromising drivetrain longevity, the kit includes a front differential drop to maintain optimal CV joint angles, supported by durable polyurethane mounting bushings.

• Adjustable Lift: Front coilovers provide 1.25-3" of lift over stock for larger wheel and tire clearance.
• Remote Reservoirs: Increased oil volume and heat dissipation area to resist shock fade and cavitation.
• CDC Valves: 10-position compression adjustment from soft to hard via external dial.
• Billet UCAs: CNC-machined aluminum arms with Delta Joint Pro (U.S. Pat. 10,731,700).
• Triple Rate Springs: Rear coil springs provide 0.5" of lift and improved ride quality across all terrain.
• Premium Components: Corrosion-resistant CAD-plated shock bodies, 7/8" shafts, and FK Rod End bearings.
• Differential Drop: Includes drop brackets to maximize wheel travel and prevent CV bind on 4WD models.
