ICON Stage 8 Billet 1.25-3" Lift Suspension System for 2024-2025 Toyota Tacoma (K53298)

Fits 2024-2025 Toyota Tacoma SR5, TRD Off-Road, TRD Sport, and 2024 Limited models.

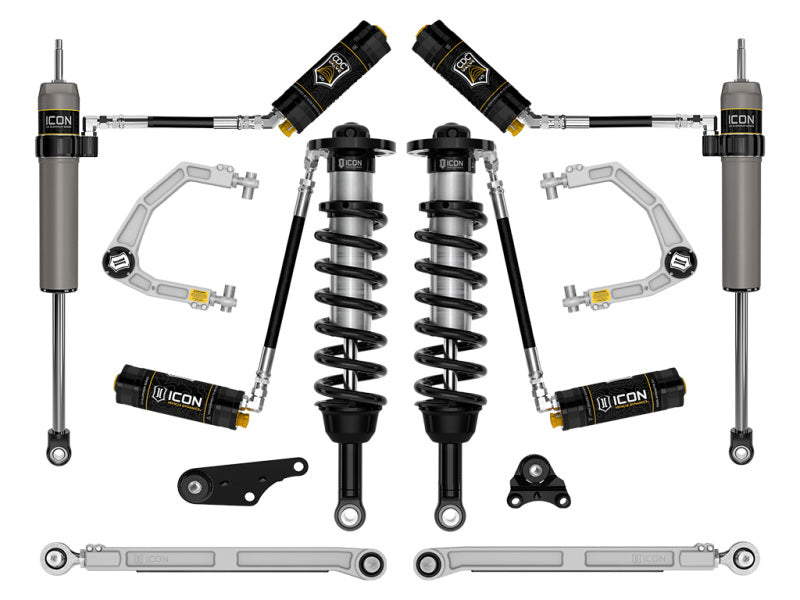

The ICON Vehicle Dynamics Stage 8 Suspension System provides a comprehensive performance upgrade for the 2024-2025 Toyota Tacoma, engineered to increase wheel travel and damping control. This system features vehicle-specific tuned 2.5 Series front coilovers and rear shocks equipped with remote reservoirs and ICON’s Compression Damping Control Valve (CDCV) technology. The CDCV system offers 10 levels of externally adjustable compression damping, allowing drivers to calibrate the ride for varying terrain and vehicle loads. The adjustable front coilovers provide 1.25" to 3" of lift height to accommodate larger wheel and tire combinations.

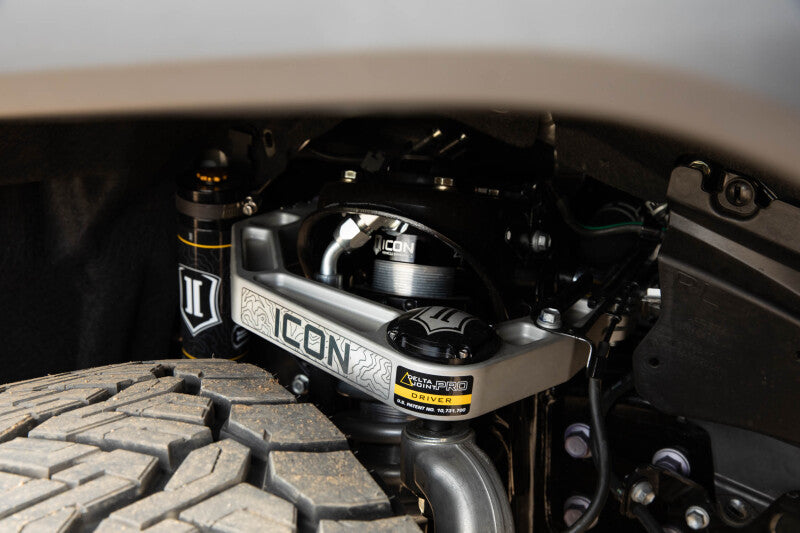

To ensure proper suspension geometry, this kit includes CNC-machined 6061 billet aluminum Upper Control Arms (UCAs) featuring the patented Delta Joint Pro, which allows for 90 degrees of total articulation. The rear suspension is enhanced with billet lower links that permit on-vehicle pinion angle adjustment. A front differential drop bracket and polyurethane mounting bushings are included to maintain optimal CV angles and limit differential movement under load.

• Manufacturer Part Number: K53298
• Front Lift Height: 1.25" to 3" (adjustable)
• Shock Technology: 2.5 Series with remote reservoirs and 10-position CDC Valves
• UCAs: Billet 6061 aluminum with Delta Joint Pro (U.S. Pat. 10,731,700)

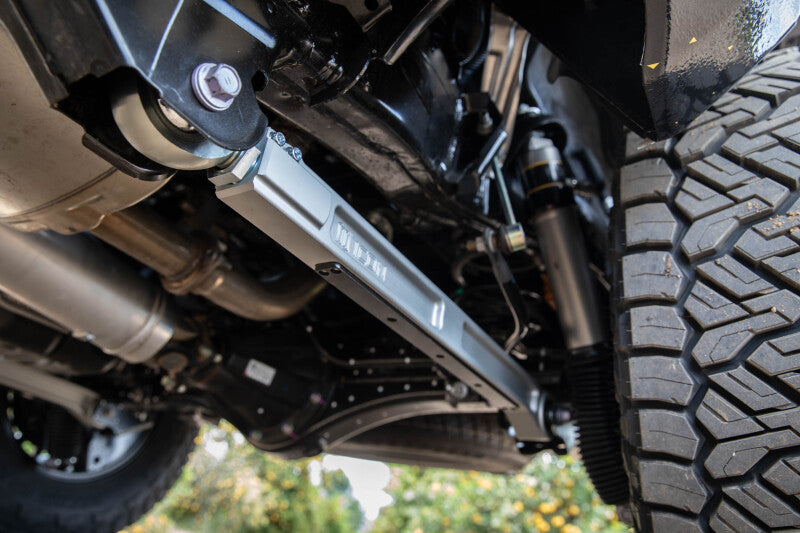

• Rear Links: Billet aluminum lower links for pinion adjustment
• Components: CAD plated shock bodies with 7/8" hardened chrome shafts
• Hardware: FK Rod End bearings and polyurethane differential mounting bushings
• Fitment: Corrects CV angles on 4WD models via included diff drop
