ICON 2024-2025 Toyota Tacoma 1.25-3" Stage 8 Suspension System Billet with Triple Rate Spring (K53298S)

Fits 2024-2025 Toyota Tacoma Limited, SR5, TRD Off-Road, and TRD Sport models. This ICON Vehicle Dynamics Stage 8 suspension system is engineered to maximize the performance and drivability of the new Tacoma platform, providing a front lift height of 1.25 to 3 inches and a 0.5-inch rear lift.

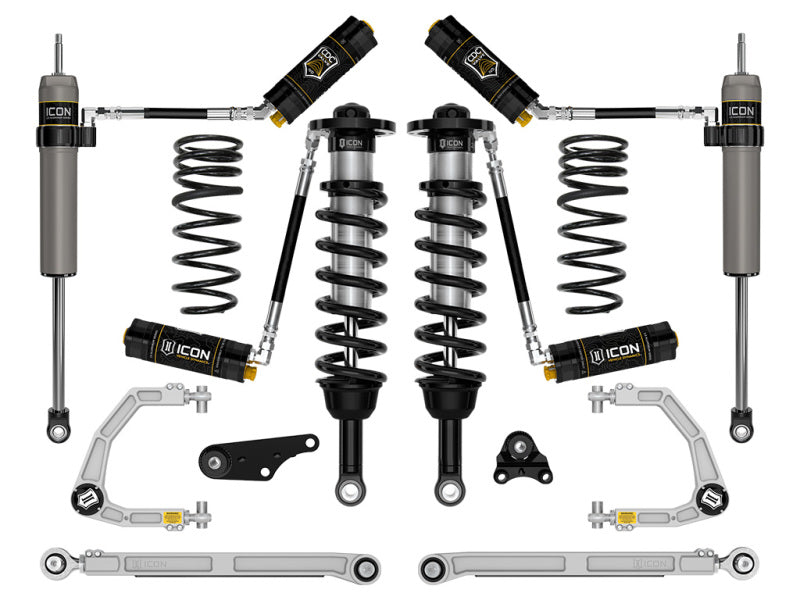

This comprehensive kit features 2.5 Aluminum Series remote reservoir front coilovers and rear shocks, both equipped with ICON’s Compression Damping Control Valve (CDCV). This external dial offers 10 distinct settings of compression damping adjustment to fine-tune your ride for varying loads or terrain. The front suspension is bolstered by CNC-machined 6061 billet aluminum upper control arms (UCAs), which correct geometry for proper alignment and use the patented Delta Joint PRO to provide 90 degrees of total articulation without binding. The rear setup includes billet aluminum lower links with double adjusters for on-vehicle pinion angle tuning and triple-rate coil springs that balance plush on-road comfort with firm bottoming resistance.

• ICON 2.5 Series front coilovers and rear shocks with CDC Valves and remote reservoirs

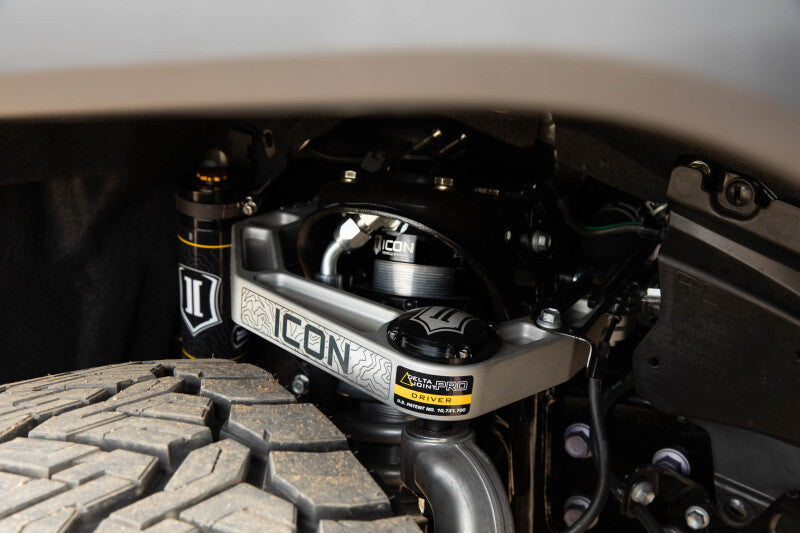

• Billet aluminum UCAs with Delta Joint PRO for increased wheel travel and durability
• Adjustable 1.25-3" front lift and 0.5" rear lift height

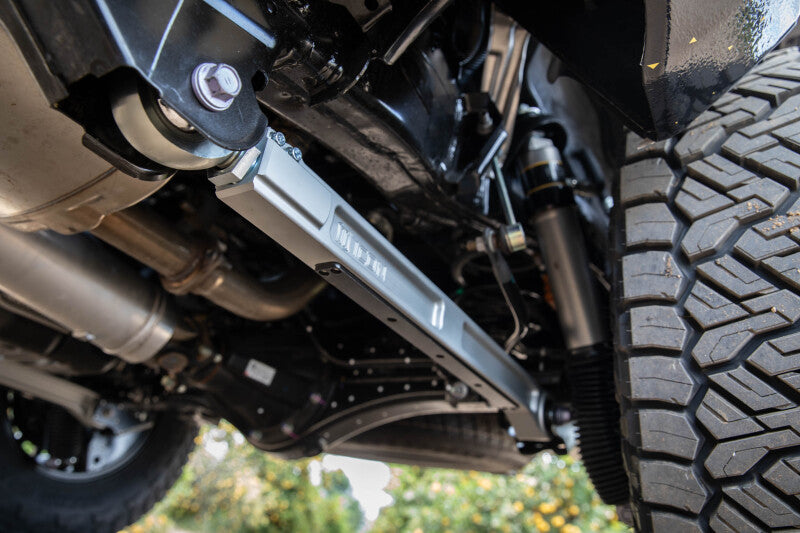

• Billet rear lower links with double adjusters and dual-durometer greaseless bushings
• Triple-rate rear coil springs for superior load handling and ride quality
• Front differential drop kit included to maintain optimal CV joint angles
• Corrosion-resistant CAD-plated shock bodies with heavy-duty 7/8" shafts
• FK Rod End bearings for minimal deflection and extended service life
• Manufacturer Part Number: K53298S
