ICON V.S. 2.5 Series RR CDEV Front Coilover Kit for 2021-2023 Ford Bronco (2-4in Lift) 48700E

Fits 2021-2023 Ford Bronco models, including Badlands, Base, Big Bend, Black Diamond, Everglades, First Edition, Heritage, Outer Banks, and Wildtrak.

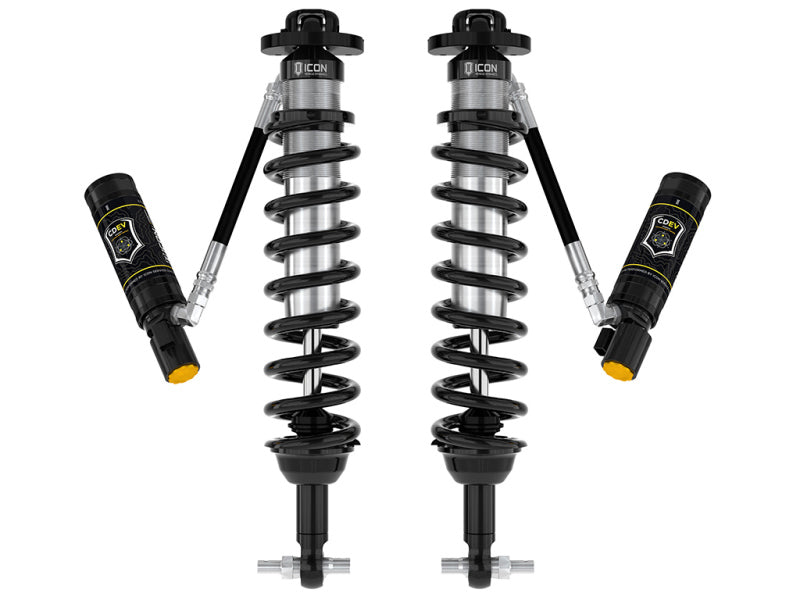

The ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir front coilover shocks with Compression Damping Electronic Valve (CDEV) provide a significant performance upgrade for the 2021-2023 Ford Bronco. Designed for versatility, these coilovers offer 3-4 inches of lift for non-Sasquatch models and 2-3 inches of lift for Sasquatch-equipped vehicles. The increased piston area and 2.5-inch shock bodies yield superior heat dissipation and damping control compared to factory components, facilitating larger wheel and tire combinations and up to 11.5 inches of wheel travel.

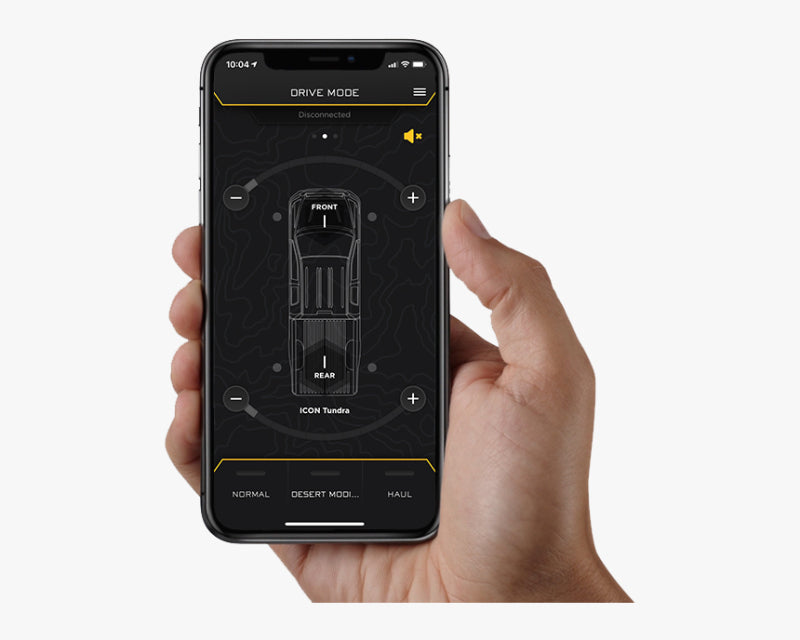

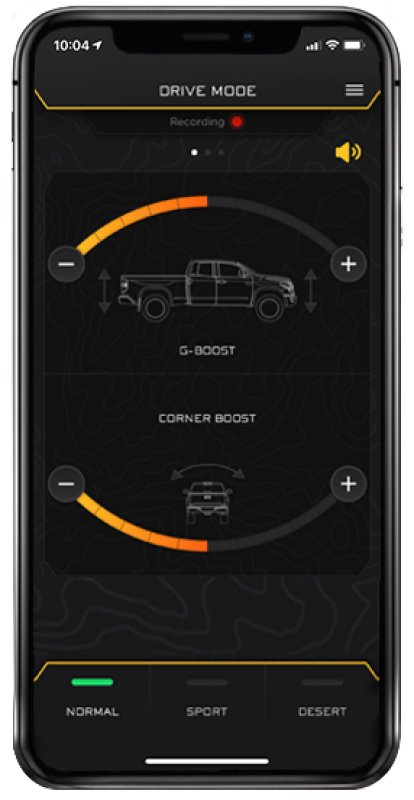

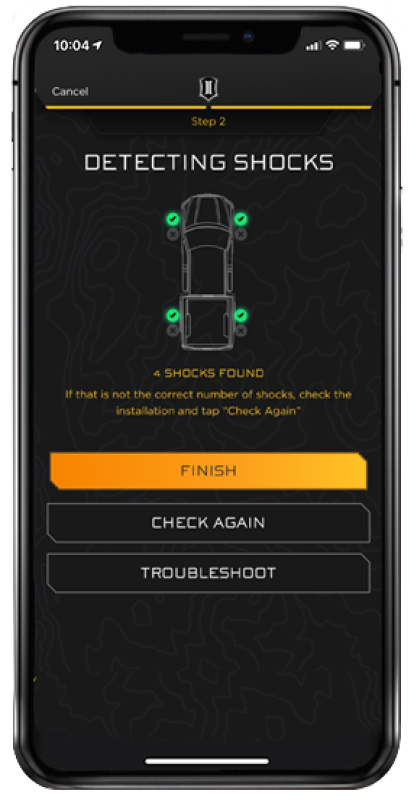

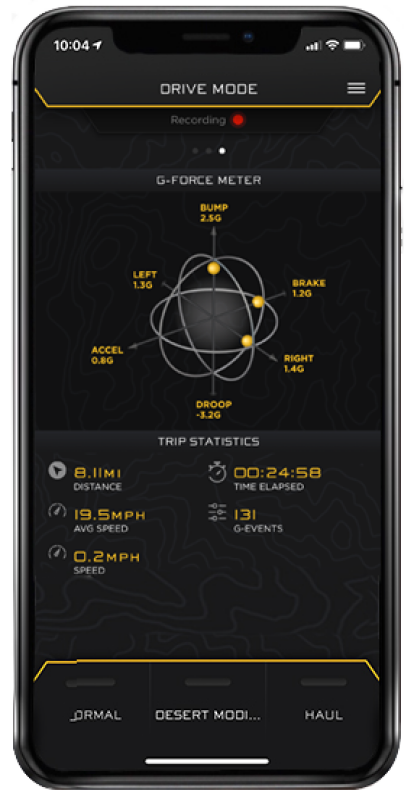

This kit features ICON’s proprietary CDEV technology, allowing for near-instantaneous electronic compression damping adjustments. When paired with the ICON Intelligent Control (IIC) module, the system monitors G-forces and chassis movement to automatically tune each shock to the terrain. Note: ICON 2.5 Series rear coilovers with CDEV and the IIC module are required to enable active vehicle control.

• Adjustable lift height: 3-4" (non-Sasquatch) or 2-3" (Sasquatch)
• ICON CDEV technology for on-the-fly electronic damping adjustment
• 2.5-inch CAD plated shock bodies with 7/8-inch diameter shafts
• Remote reservoirs for increased oil volume and thermal stability
• 6061 aircraft-grade aluminum CNC machined components
• FK rod end bearings for reduced deflection and maximum longevity
• 100% bolt-on installation; no cutting or welding required
• Fully rebuildable and re-tunable design
• Manufacturer Part Number: 48700E
