ICON Vehicle Dynamics 2.5 EXP Series Front Coilover Shock for 2022-2025 Toyota Tundra & Sequoia (58671)

Fits select 2022-2025 Toyota Tundra and 2023-2025 Toyota Sequoia.

The ICON Vehicle Dynamics EXP Series bridges the gap between basic spacer lifts and full threaded-body coilovers. By utilizing a 2.5-inch diameter premium shock body while retaining the vehicle’s factory coil spring and mounts, the EXP system provides a cost-effective suspension upgrade that significantly increases damping performance and wheel travel. The 6061-billet aluminum coil spring seat and heavy-duty urethane isolators are specifically engineered to interface perfectly with the OE Toyota spring.

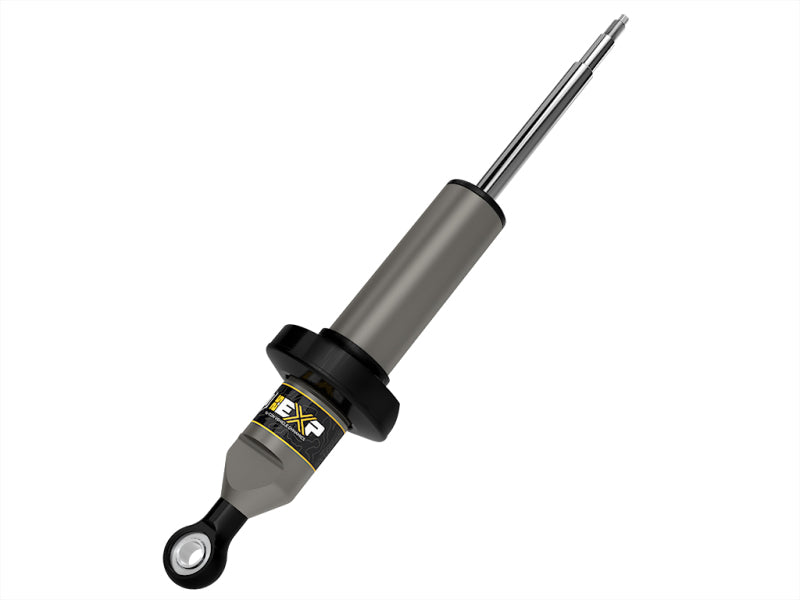

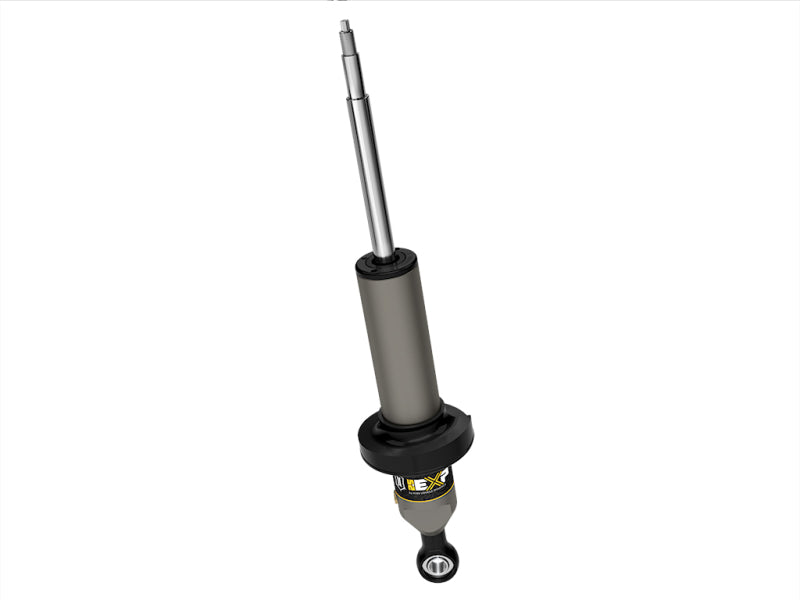

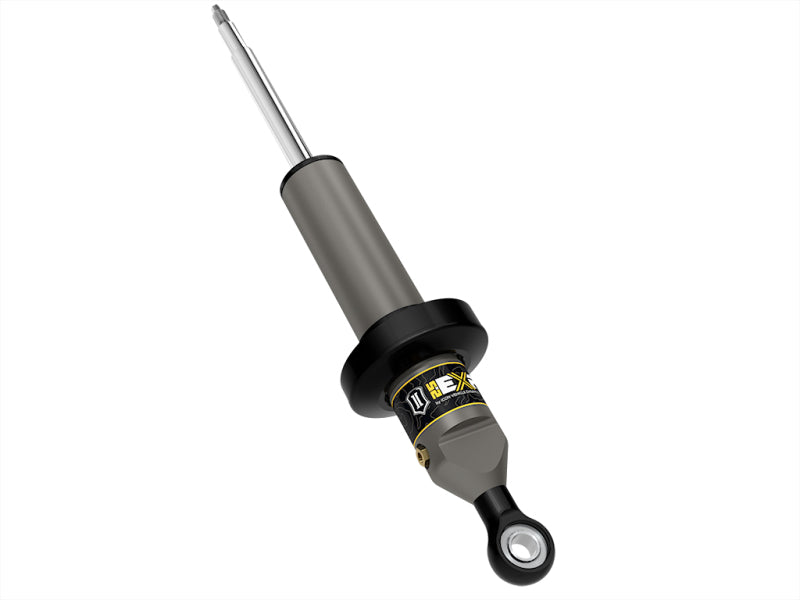

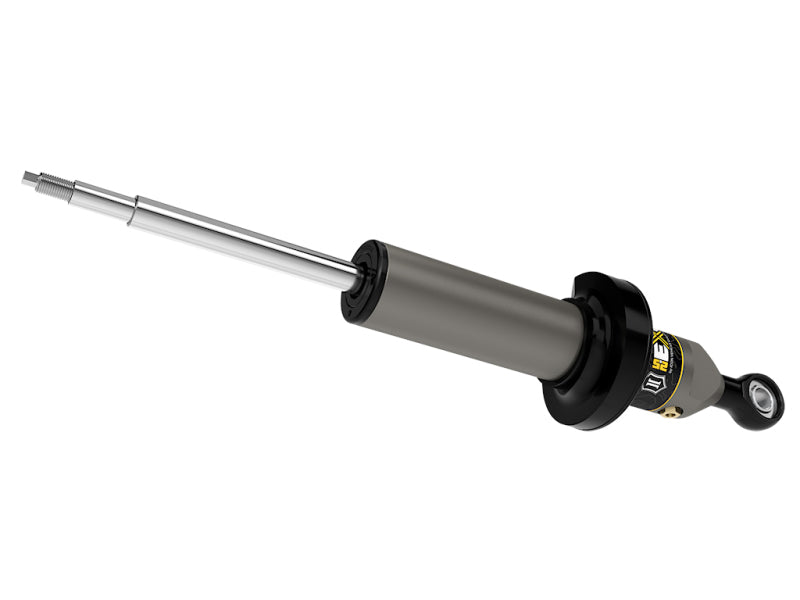

Construction features a one-piece impact-extruded aluminum shock body with a hard-anodized finish for superior corrosion resistance and heat dissipation. The massive 7/8-inch induction-hardened, chrome-plated shaft is paired with a one-piece digressive piston design, custom-tuned specifically for the Tundra and Sequoia platforms to provide stable handling and controlled ride quality both on and off-road. For long-term serviceability, these shocks are fully rebuildable and re-valvable.

• Adjustable front lift height from 0 to 3 inches via machined snap-ring grooves
• 2.5-inch impact-extruded 6061 aluminum body with hard-anodized finish
• 7/8-inch induction-hardened, chrome-plated shaft in an inverted shaft-up configuration
• PTFE-lined spherical bearings for maximum longevity and minimal deflection
• Vehicle-specific digressive valving for improved bottom-out resistance and body roll control

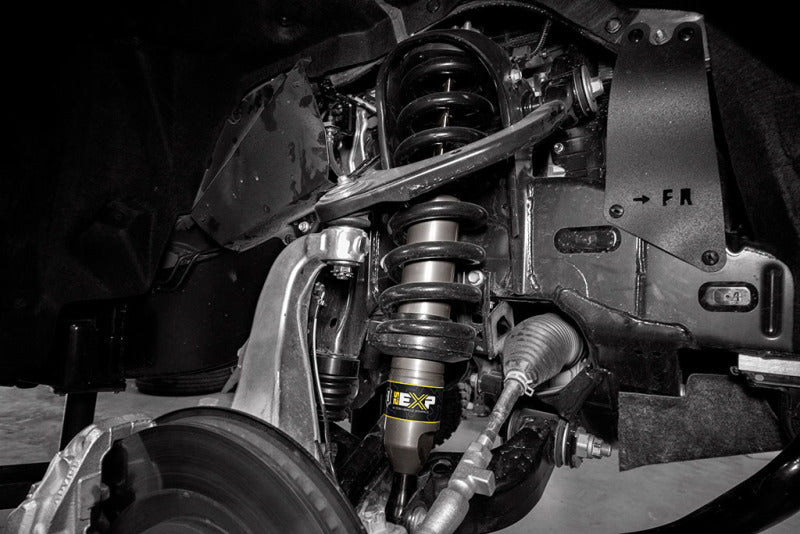

• Utilizes factory coil springs and upper mounting hardware
• Fully rebuildable and re-tunable by qualified technicians
• Manufacturer Part Number: 58671
