ICON 2023-2025 Toyota Sequoia 3-4.5" Lift Stage 10 Suspension System with Tubular UCAs & Links (K53240T)

Fits 2023-2025 Toyota Sequoia (SR5, Limited, Platinum, 1794 Edition, Capstone, and TRD Pro).

The ICON Stage 10 Suspension System is the ultimate performance upgrade for the 2023-2025 Toyota Sequoia, engineered to provide maximum suspension travel and superior ride quality. This system centers around VS 2.5 Series remote reservoir front coilovers and rear shocks, both equipped with ICON’s Compression Damping Control (CDC) Valves. These valves offer 10 externally adjustable settings, allowing you to fine-tune your ride for anything from soft street driving to firm off-road damping. The front coilovers are height-adjustable from 3 to 4.5 inches of lift over stock, enabling the fitment of larger wheel and tire combinations.

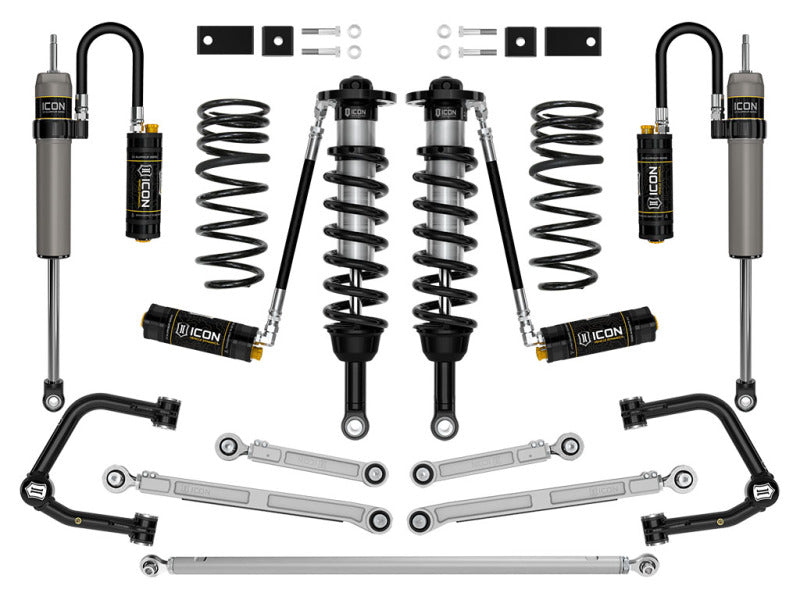

This comprehensive kit includes ICON tubular front upper control arms (UCAs) featuring the patented Delta Joint Pro, which provides up to 90 degrees of total articulation without the bind associated with factory joints. To further refine the rear geometry, the Stage 10 system adds tubular rear upper and lower links for pinion angle adjustment and an adjustable rear track bar to properly center the axle. The dual-rate rear coil springs provide 0 or 2 inches of lift depending on the factory trim, ensuring a balanced stance and improved load handling.

• Fits 2023-2025 Toyota Sequoia models (MPN: K53240T)
• Adjustable front lift height from 3-4.5" over stock
• VS 2.5 Series shocks with remote reservoirs for increased oil volume and cooling
• CDC Valves provide 10 levels of compression damping adjustment
• Tubular front UCAs with Delta Joint Pro for 90-degree articulation
• Tubular rear links and adjustable track bar for precise axle alignment
• Dual-rate rear coil springs for optimized ride quality
• Includes sway bar drop brackets to maintain proper OE link geometry
• Fully rebuildable and re-tunable shock absorbers
