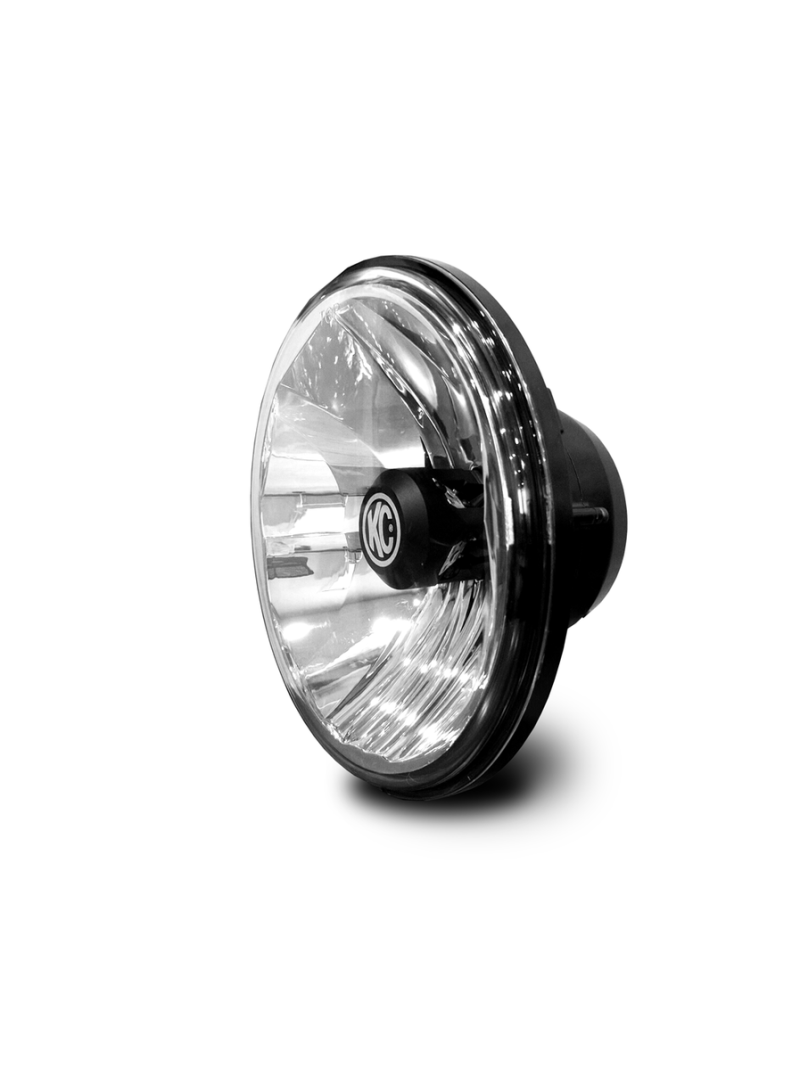

KC HiLiTES 4235 Gravity LED 7-Inch DOT Replacement Headlight for 2007-2018 Jeep Wrangler JK (Single)

Fits 2007-2018 Jeep Wrangler and Wrangler JK models including Rubicon, Sahara, Sport, and Unlimited editions. This single 7-inch Gravity LED replacement headlight provides a significant output upgrade over factory halogen units, integrating low beam, high beam, and daytime running light (DRL) functionality into one unit.

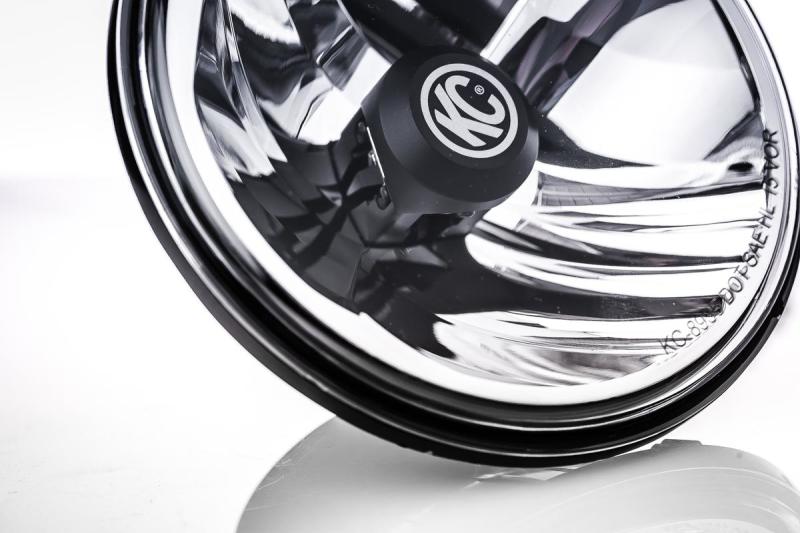

The KC HiLiTES Gravity LED system utilizes a patented Gravity Reflective Diode (GRD) technology, which aims the LEDs into precision-polished reflectors to capture and project light more efficiently than traditional forward-facing designs. This unit is housed in a durable die-cast aluminum chassis with a hard-coated polycarbonate lens, ensuring it withstands harsh trail conditions and debris while maintaining an IP68 waterproof rating.

Installation is a straightforward plug-and-play process for the Jeep JK, utilizing the included H13 connector to bridge directly into the factory wiring harness. This headlight is DOT compliant (SAE J851 and ECE-R112) for street-legal use.

• Manufacturer Part Number: 4235
• Light Performance: Raw Lumens: 1,260 lm (Low), 3,666 lm (High), 275 lm (DRL)
• Visibility Metrics: Lux @ 10m: 415 lx (Low), 775 lx (High); Candela: 41,500 cd (Low), 77,500 cd (High)
• Beam Distance: 407m (Low), 557m (High)
• LED Components: CREE XHP35 HI and Nichia LEDs
• Specifications: 5000K Color Temperature; 18W-22W Wattage; 9V-18V Voltage; 1.88A Draw
• Construction: Die-cast aluminum housing with IP68 rating
• Dimensions: 6.96" Width x 3.72" Depth
• Included: (1) 7-inch Headlight and (1) H13 Connector for Jeep JK
