RockJock Johnny Joint 2-1/2" Forged Rod End, 1"-14 RH Thread, 2.365" x .562" Ball (CE-9113N-14)
$72.00
This product will be available for sale in 2 weeks, but you can pre-order now to receive 10% discount!

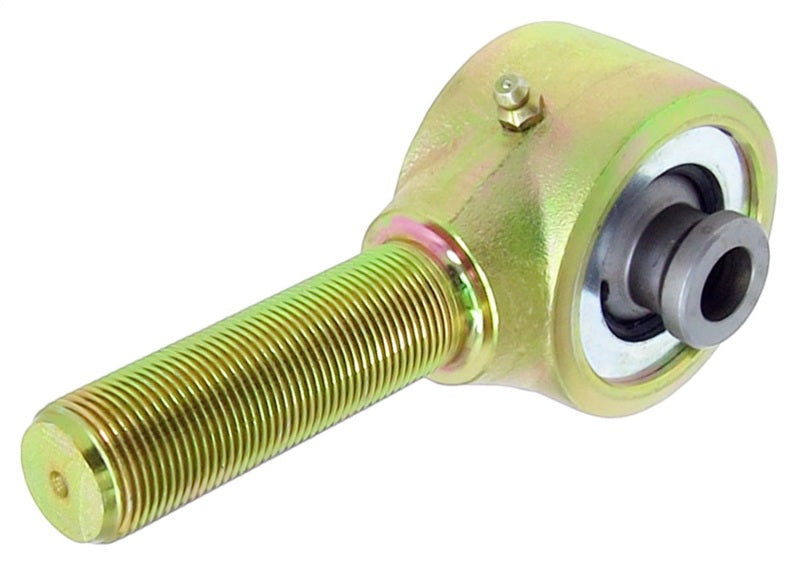

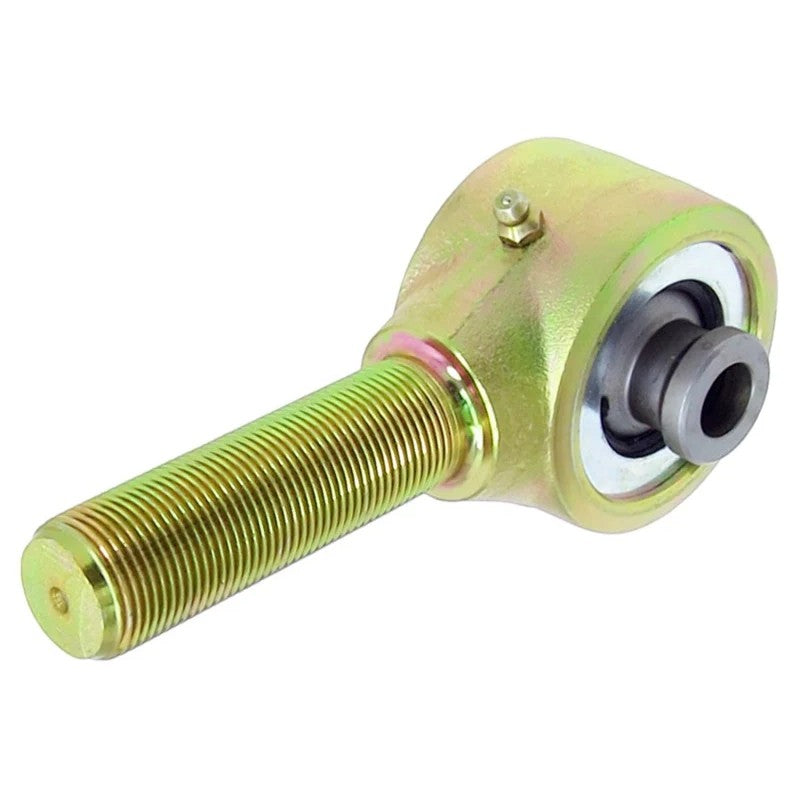

The RockJock Johnny Joint (CE-9113N-14) is a narrow forged rod end engineered for custom suspension fabricators and builders who require maximum articulation and vibration dampening. This 2-1/2 inch Johnny Joint provides 40 degrees of unrestricted movement in any direction—nearly double the 22 degrees offered by traditional heim joints. By utilizing high-density urethane bushings to encase the inner ball, this joint provides essential cushioning and noise isolation that standard metal-on-metal rod ends cannot deliver.
Constructed for heavy-duty applications, the joint features a forged body with a gold zinc plated finish for superior corrosion resistance. The heat-treated center ball is cross-drilled for through-bolt lubrication, ensuring the internals remain greased even under high-load cycles. All internal components are securely retained by two heat-treated side washers and a heavy-duty snap ring.
- Manufacturer Part Number: CE-9113N-14
- Joint Diameter: 2-1/2 inches
- Thread Pitch: 1 inch-14 Right Hand (RH) external threads
- Shank Thread Length: 2-1/4 inches
- Mounting Width: 2.365 inches (ball)
- Thru-Bolt Hole: 0.562 inches
- Articulation: 40 degrees of movement
- Lubrication: Integrated Zerk fitting with cross-drilled ball for grease
- Finish: Gold Zinc Plating
