RockJock

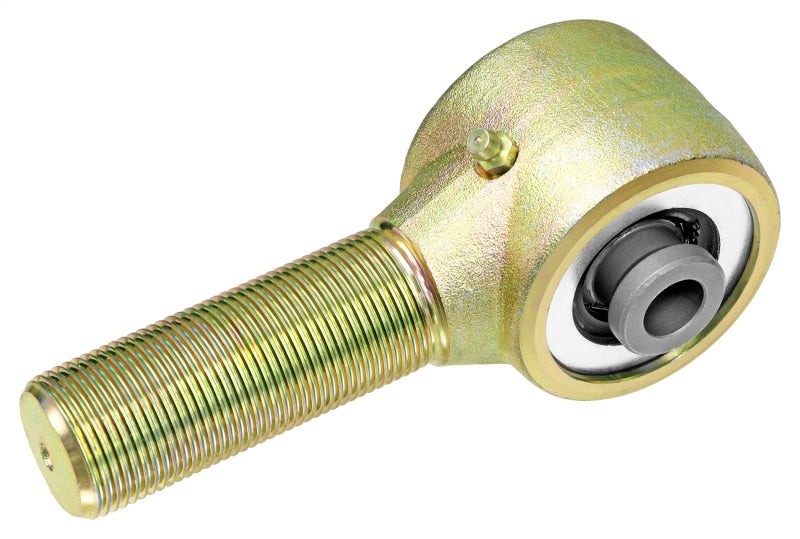

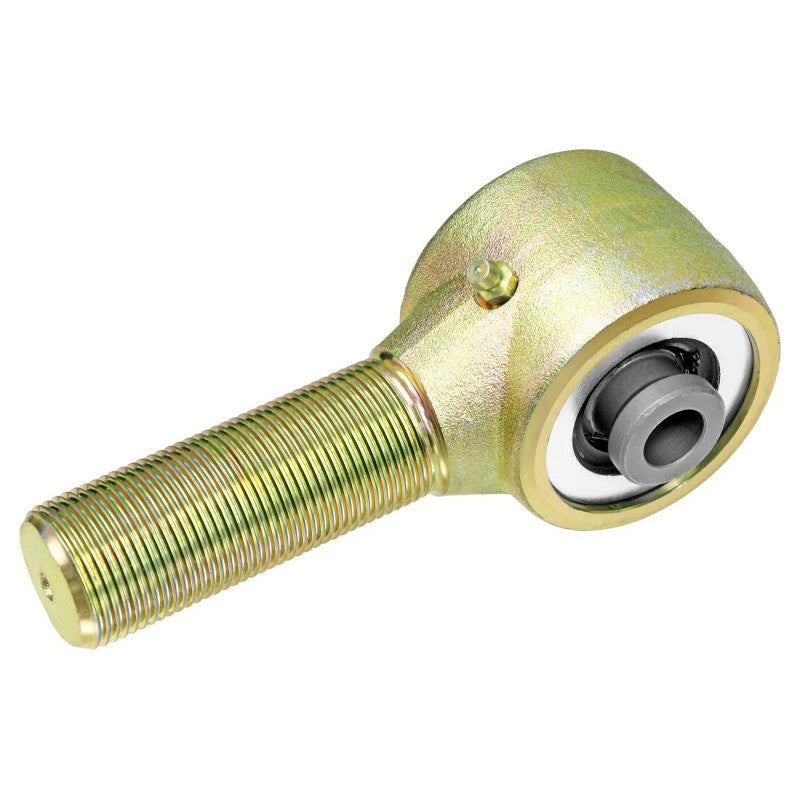

RockJock Johnny Joint 2.5in Forged Rod End 1-1/4in-12 LH Thread 2.625in x .562in Ball CE-9114L
$72.00
This product will be available for sale in 2 weeks, but you can pre-order now to receive 10% discount!
The RockJock Johnny Joint (CE-9114L) is the premier choice for fabricators and suspension builders requiring maximum articulation and long-term durability. This forged 2-1/2 inch diameter rod end offers 30 degrees of unrestricted movement, providing a significant advantage over the 22-degree limit typical of standard heim joints.
Unlike rigid heim joints, the Johnny Joint utilizes high-density urethane bushings to encase the inner ball, offering essential cushioning and vibration dampening for suspension components. The internal assembly is secured by two heat-treated side washers and a heavy-duty snap ring, while the gold zinc plating ensures superior corrosion resistance in harsh off-road environments.
- Body: Forged steel, 2-1/2 inch diameter.
- Articulation: 30 degrees of total movement.
- Shank: 1-1/4 inch-12 Left Hand (LH) thread with 2-1/4 inch length.
- Inner Ball: Heat-treated steel, 2.625 inch mounting width with .562 inch thru-bolt hole.
- Maintenance: Cross-drilled center ball with integrated zerk fitting for easy external lubrication.
- Finish: Gold zinc plating.
- Part Number: CE-9114L
Note: This unit does not include a mounting bolt.
Choose your Location
-
Atlus
1340 Cobb Dr, Unit 1, Eustis, FL 32736
352-234-4458
Mon – Fri: 8:30 am – 4:30 pm
Sat: 9:00 am – 2:00 pm
Sun: Closed
Product Comparison
How they are Different
|
__ __ |
|
|---|---|
| Description |
Description - __ |
| Rating |
Rating - __ |
| Vendor |
Vendor - __ |
| Color |
Color - __ |
|
|
Compare products ( / )
The Atlus Price Guarantee
If you can find the part for a lower price from an authorized dealer/shop, we'll match the price! Reach out to Hello@AtlusAuto.com, our live chat located at the bottom right of your screen, or request an Atlas Price Guarantee, or visit our dedicated APG page to submit a request.
RockJock Johnny Joint 2.5in Forged Rod End 1-1/4in-12 LH Thread 2.625in x .562in Ball CE-9114L
$72.00
This product will be available soon, but you can pre-order now to get on the list before others!
US Based Support - In Florida
30 Days Satisfaction Guarantee
Price Match
If you can find the part for a lower price from an authorized dealer/shop, we'll match the price! Reach out to Hello@AtlusAuto.com, our live chat located at the bottom of your screen, or request an Atlas Price Guarantee, or visit our dedicated APG page to submit a request.
Easy Financing
We've partnered up with Affirm/Shop!
Why use Affirm/Shop?
- Clear application process
- Friendly support team
- Spread a big payment interest-free
- Ability to buy what you want
How does it work?
- Add your purchase to cart
- Select Shop Payments at checkout
- Complete the application
- Compare any available finance options
Share:
$72.00
$72.00
$72.00
The RockJock Johnny Joint (CE-9114L) is the premier choice for fabricators and suspension builders requiring maximum articulation and long-term durability. This forged 2-1/2 inch diameter rod end offers 30 degrees of unrestricted movement, providing a significant advantage over the 22-degree limit typical of standard heim joints.
Unlike rigid heim joints, the Johnny Joint utilizes high-density urethane bushings to encase the inner ball, offering essential cushioning and vibration dampening for suspension components. The internal assembly is secured by two heat-treated side washers and a heavy-duty snap ring, while the gold zinc plating ensures superior corrosion resistance in harsh off-road environments.
- Body: Forged steel, 2-1/2 inch diameter.
- Articulation: 30 degrees of total movement.
- Shank: 1-1/4 inch-12 Left Hand (LH) thread with 2-1/4 inch length.
- Inner Ball: Heat-treated steel, 2.625 inch mounting width with .562 inch thru-bolt hole.
- Maintenance: Cross-drilled center ball with integrated zerk fitting for easy external lubrication.
- Finish: Gold zinc plating.
- Part Number: CE-9114L
Note: This unit does not include a mounting bolt.
