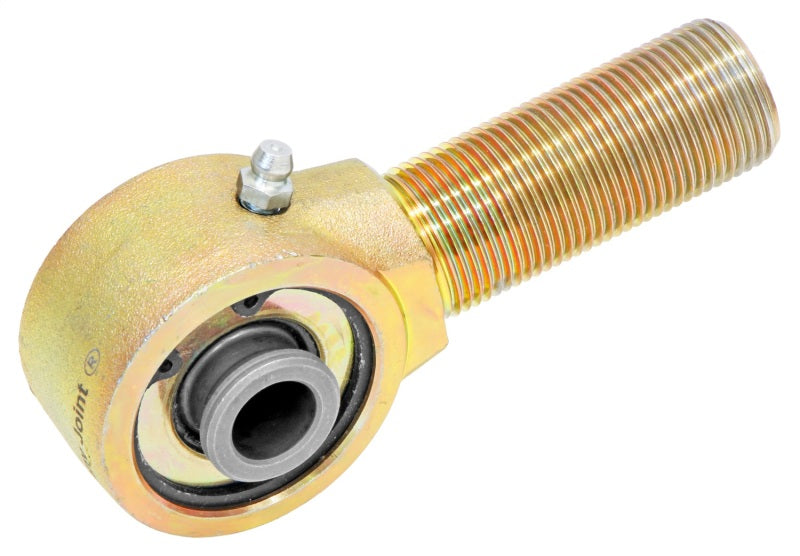

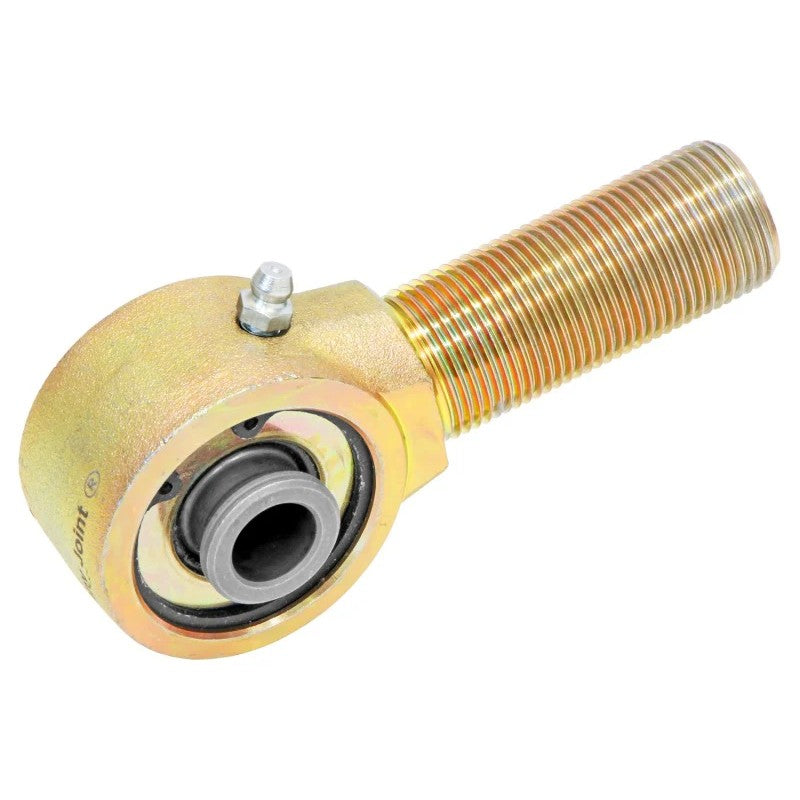

RockJock Johnny Joint 2in Narrow Forged Rod End, .500in Ball, 1in-14 RH Thread (CE-9112N-12)
$70.00
This product will be available for sale in 2 weeks, but you can pre-order now to receive 10% discount!
Designed for custom suspension fabrication and heavy-duty off-road builds, the RockJock narrow forged Johnny Joint (CE-9112N-12) offers 40 degrees of unrestricted articulation—significantly outperforming the 22-degree limit of standard heim joints. Unlike metal-on-metal rod ends, the Johnny Joint utilizes a high-density urethane bushing to encase the inner ball, providing essential cushioning and vibration dampening for improved ride quality without sacrificing durability.
This 2-inch diameter joint features a forged steel body finished in gold zinc plating for superior corrosion resistance. The heat-treated center ball is cross-drilled for efficient lubrication via the integrated zerk fitting. The internal assembly is secured by two heat-treated side washers and a heavy-duty snap ring, ensuring the joint remains reliable under extreme suspension cycling.
- Part Number: CE-9112N-12
- Joint Housing Diameter: 2 in.
- Mounting Width: 2 in.
- Thru-Bolt Hole: .500 in.
- Thread Size: 1 in.-14 RH
- Thread Shank Length: 2 1/4 in.
- Articulation: 40 Degrees of movement
- Finish: Gold Zinc Plating
