RockJock

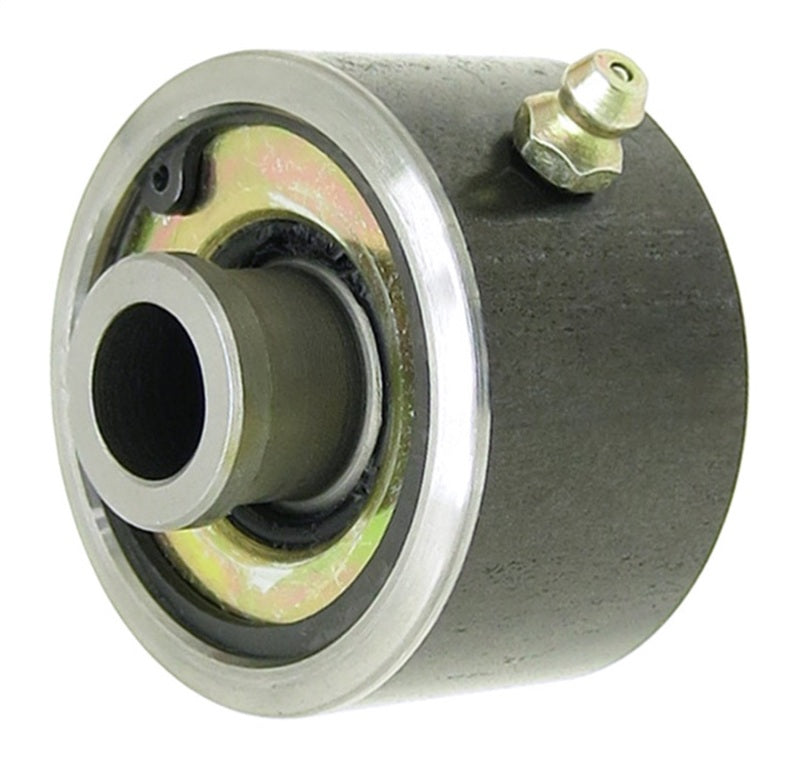

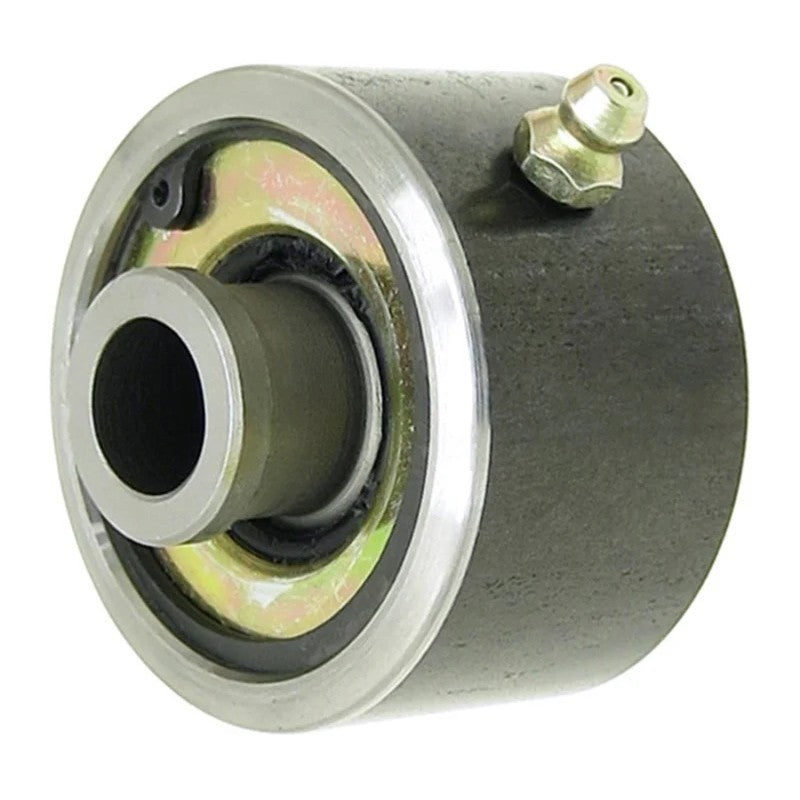

RockJock Johnny Joint 2in Narrow Weld-On Rod End, 1.600in x .480in Ball - CE-9112NP
$61.00
This product will be available for sale in 2 weeks, but you can pre-order now to receive 10% discount!
The RockJock Johnny Joint 2-inch narrow weld-on rod end is engineered for fabricators and suspension builders who require high articulation and durability. Designed to outperform standard heim joints, the Johnny Joint provides 40 degrees of unrestricted movement, compared to the 22-degree limit of most common alternatives. The internal high-density urethane bushing encases a heat-treated center ball, providing the vibration dampening and cushioning that metal-on-metal heim joints lack.
Built to withstand the rigors of off-road use, the outer shell is machined from .180-inch wall DOM tubing and is fully weldable. The internals are secured by two heat-treated side washers and a heavy-duty snap ring. For long-term serviceability, the center ball is cross-drilled for through-bolt lubrication and the shell is equipped with an integrated zerk fitting.
- Outer Diameter: 2.000 in.
- Mounting Width: 1.600 in.
- Thru-Bolt Hole: .480 in.
- Housing Material: .180 in. wall machined DOM tubing
- Movement: 40 degrees of total articulation
- Lubrication: Greasable via integrated zerk fitting
- Manufacturer Part Number: CE-9112NP
