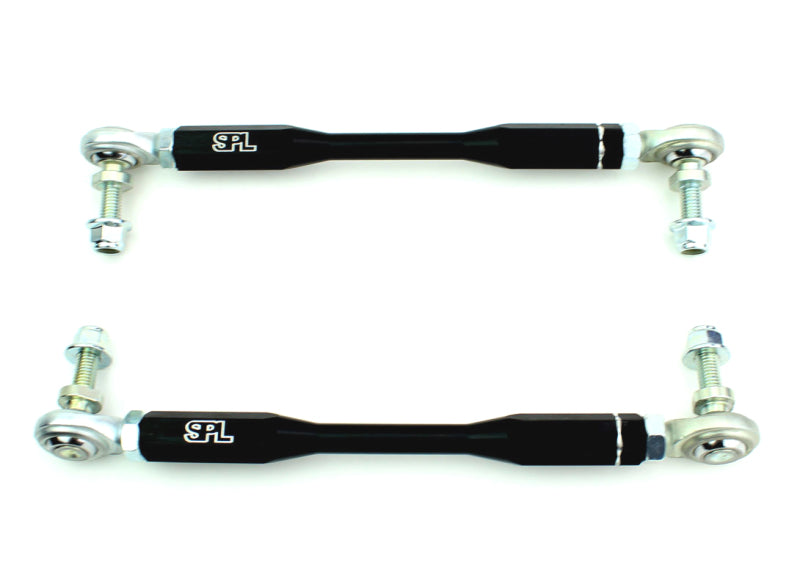

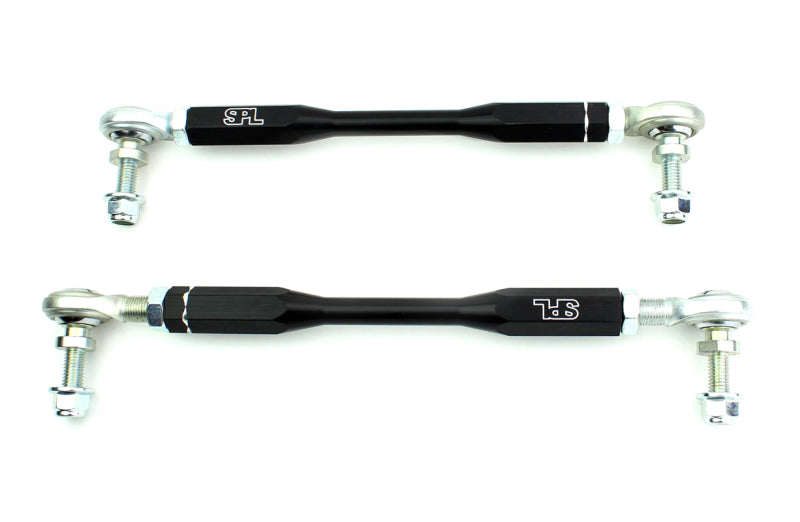

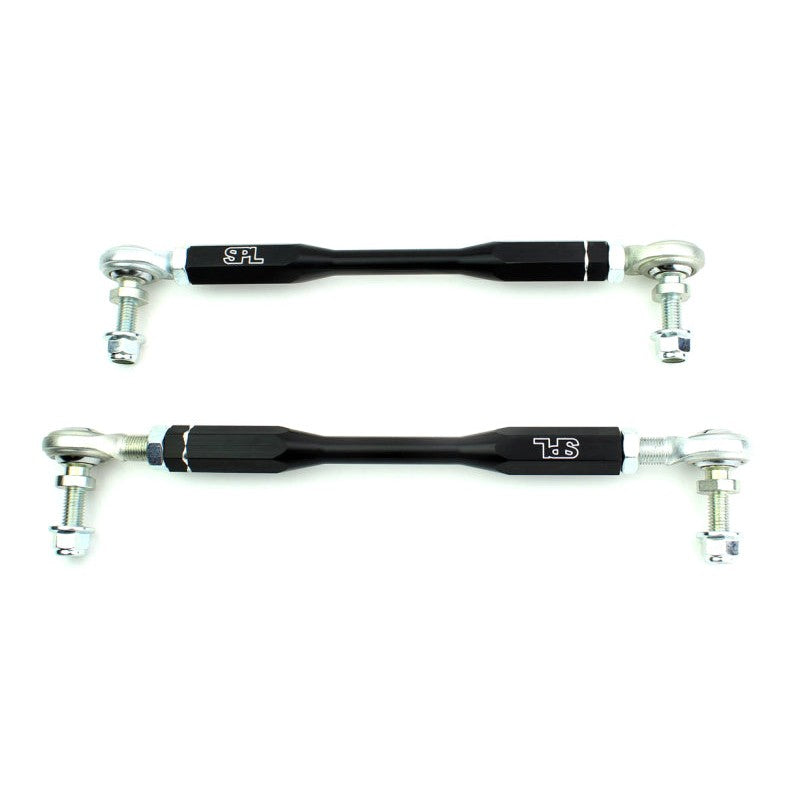

SPL Parts Front Swaybar Endlinks for Select 2012-2021 BMW 2/3/4 Series (SPL FE F3X)

Fits select 2012-2021 BMW 2 Series, 3 Series, 4 Series, and ActiveHybrid 3 (F2X and F3X chassis).

SPL Front Endlinks are engineered to eliminate sway bar preload and prevent binding, especially on vehicles equipped with aftermarket sway bars or lowered suspension. These adjustable links allow for precise corner weighting by compensating for uneven spring settling or ride heights. The massive 1/2-inch Teflon-lined FK bearings provide significantly higher load capacity than factory units, while the heat-treated Chromoly high-misalignment studs offer up to 65 degrees of articulation. This extreme range of motion ensures the endlinks do not bind when using various adjustment holes on performance sway bars.

The center turnbuckles are CNC machined from 6061-T6 aluminum and finished in black anodizing. Featuring both left- and right-hand threads, these links allow for easy length adjustment while still mounted on the vehicle. Before ordering, verify that your distance between the sway bar and shock mount is within the 11.4-inch to 12.9-inch range, as some aftermarket coilovers may move the mounting point.

• Manufacturer Part Number: SPL FE F3X
• Adjustable Length Range: 11.4" – 12.9"
• FK 1/2" Teflon-lined spherical bearings
• Heat-treated Chromoly high-misalignment studs (65° articulation)
• Black anodized 6061-T6 aluminum turnbuckles
• Sold as a pair
• Proudly engineered and made in the USA
