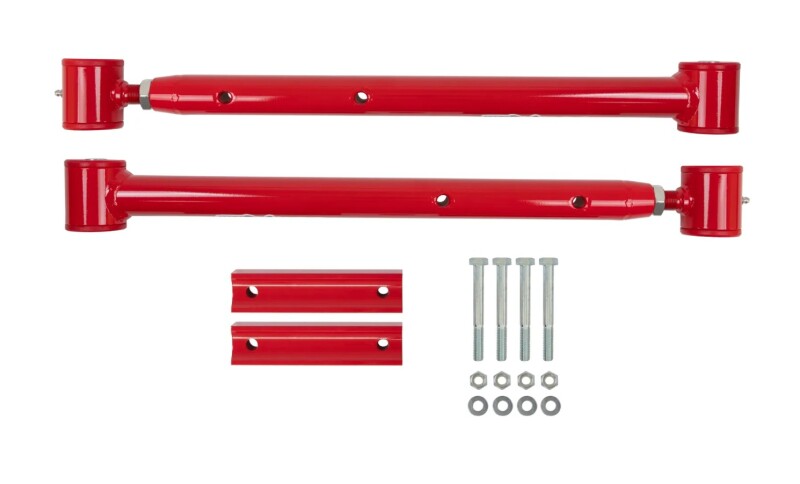

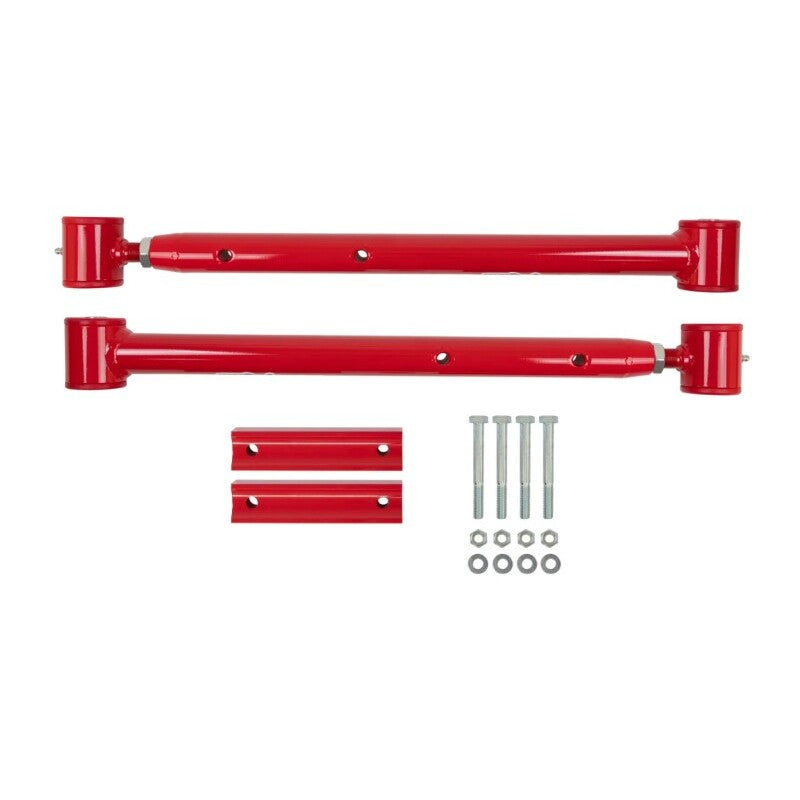

UMI Performance Adjustable Extended Length Lower Control Arms for 1991-1996 Chevrolet Caprice/Impala SS (3612-R)

Fits 1991-1996 Chevrolet Caprice and Impala SS (Base, Classic, LS, LTZ, and SS submodels).

These UMI Performance adjustable extended length lower control arms are engineered to correctly center the rear wheels within the wheel well of your 1991-1996 GM B-Body. Featuring a base 5/8" extension with an additional 1/4" of adjustment, these arms provide the precision needed for perfect rear-end centering. Built for heavy-duty performance, they are constructed from 1.500" diameter, 0.120" wall thickness DOM steel tubing and are fully TIG welded for maximum structural integrity.

Each arm includes reinforced sway bar mounting holes using TIG-welded 0.120" steel sleeves and billet aluminum spacers for secure, factory-location attachment of stock or aftermarket sway bars. For vehicles equipped with UMI weld-in relocation brackets (part #3610), the sway bar spacers can be rotated to maintain compatibility. Please note that due to the extended length, a longer driveshaft may be required depending on your specific ride height. The assembly features high-strength 4140 Chrome moly threaded tube adapters and greaseable bushings to ensure smooth operation and long-term durability.

• Fixed 5/8" extension with 1/4" additional adjustment range
• 1.500" x 0.120" wall DOM steel tubing construction
• Fully TIG welded for superior strength
• 4140 Chrome moly threaded tube adapters and bushing threads
• Greaseable bushings for reduced friction and noise
• Reinforced sway bar holes with 0.120" steel sleeves
• Includes billet aluminum sway bar spacers and 10.9 grade hardware
• Compatible with UMI relocation brackets (Part #3610)
• Durable glossy powder coat finish
• Manufacturer Part Number: 3612-R
