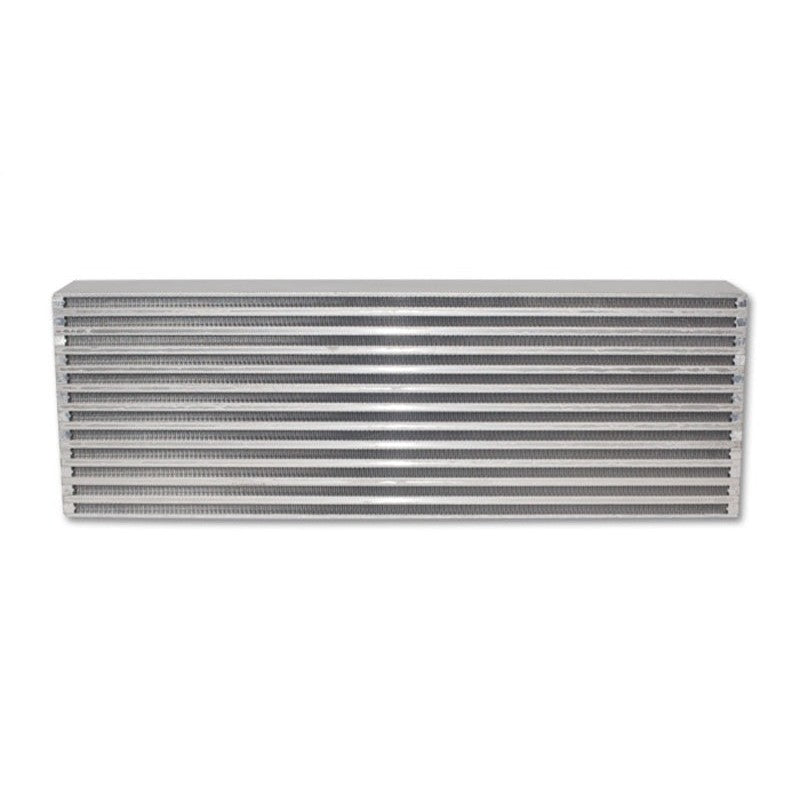

Vibrant Performance Horizontal Flow Bar and Plate Intercooler Core - 24in x 8in x 3.5in (12839)

This Vibrant Performance horizontal flow air-to-air intercooler core is engineered for custom forced induction applications requiring high thermal efficiency and durability. Built with robust bar and plate construction, this core is designed to withstand high boost pressures while providing consistent intake air temperature reduction.

The unit features a specialized louvered fin design on the ambient path to maximize available surface area for heat rejection. On the charge path, an offset fin design is utilized to facilitate high flow rates with minimal pressure loss. With a 25% increase in fin density compared to standard cores, this component offers superior heat soak resistance for performance-oriented builds.

• Core Dimensions: 24in (L) x 8in (H) x 3.5in (W)
• Construction: Bar and Plate
• Flow Configuration: Horizontal Flow
• Ambient Path: Louvered fin design for maximum surface area
• Charge Path: Offset fin design for minimal pressure drop
• Density: 25% increased fin density
• Manufacturer Part Number: 12839
