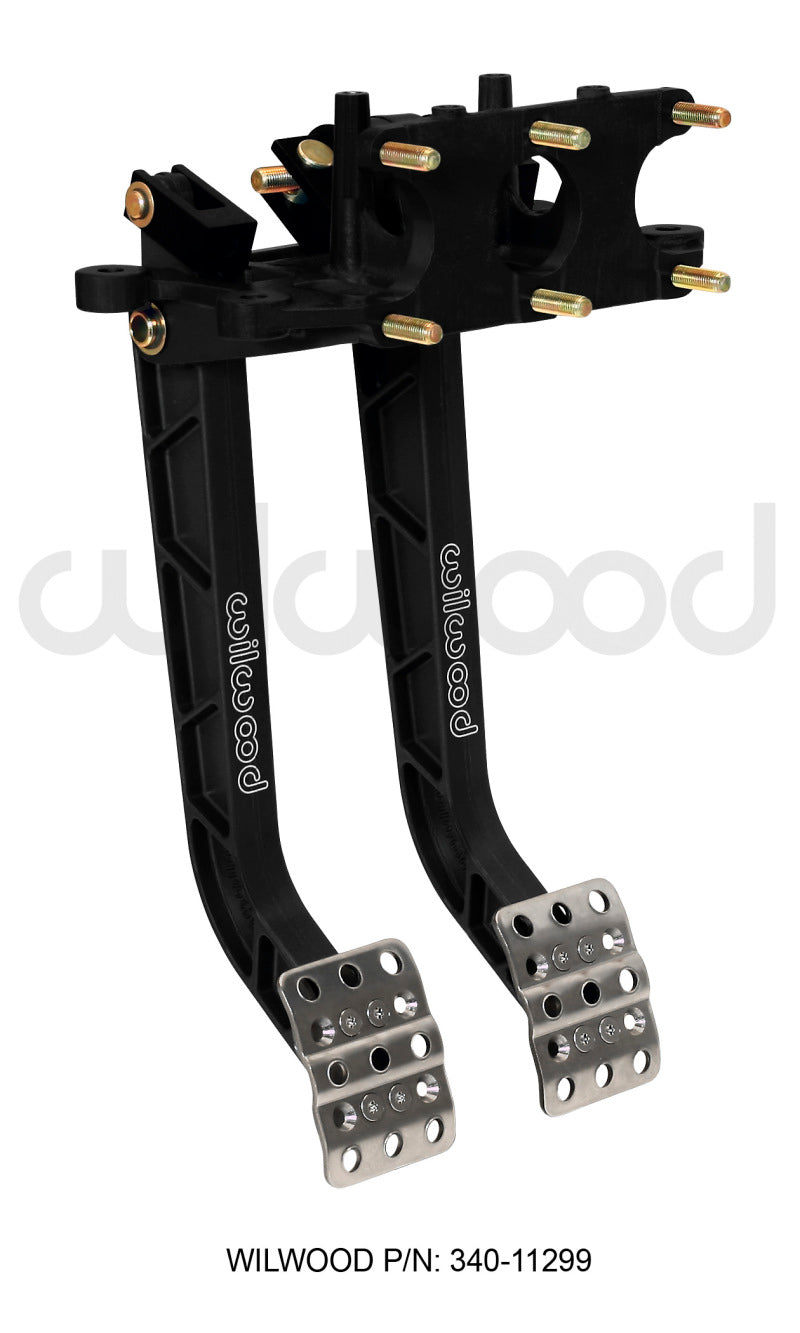

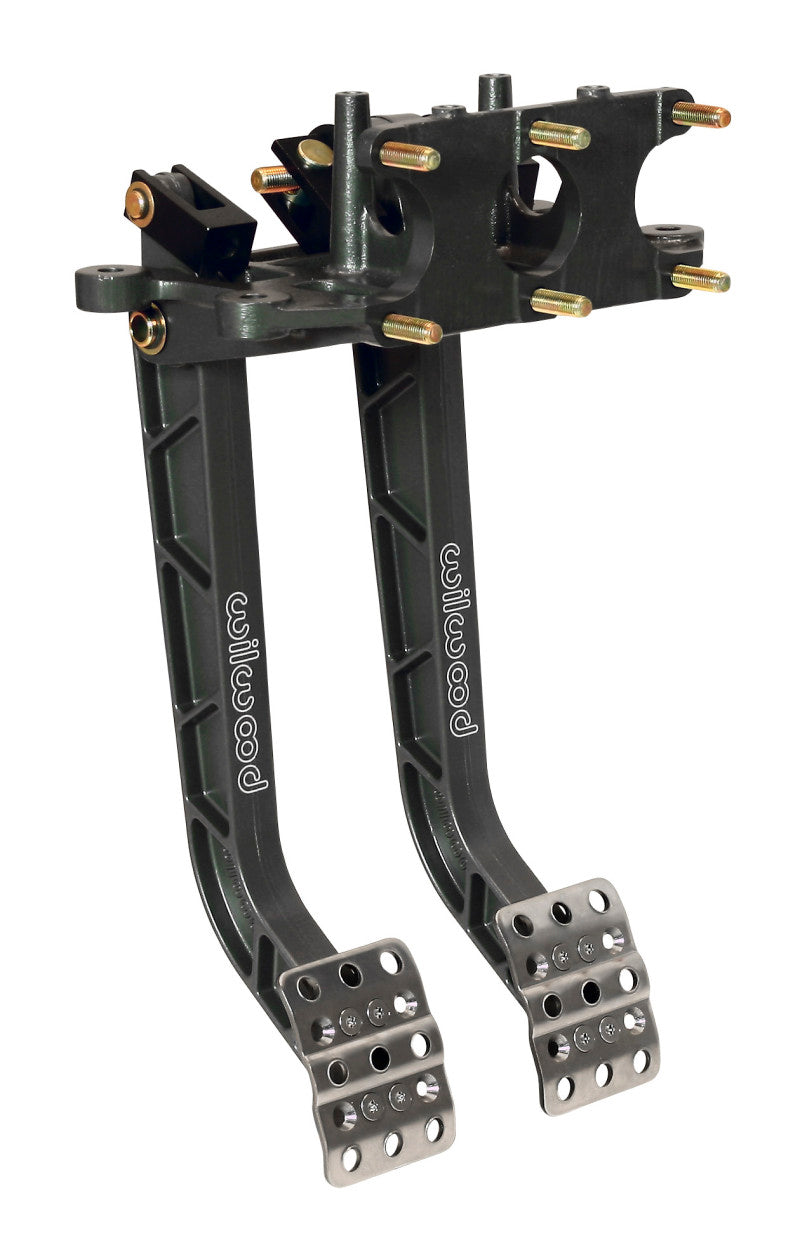

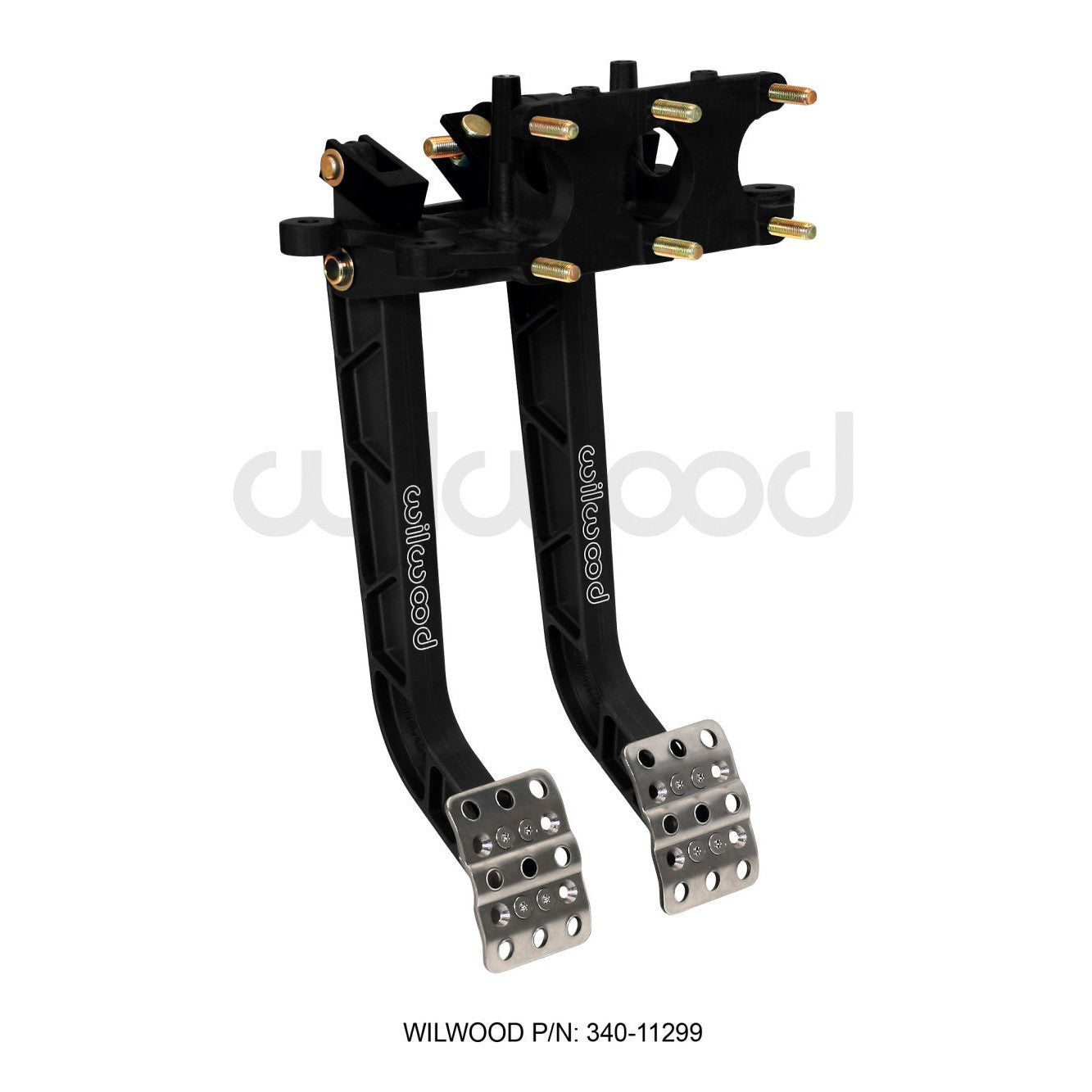

Wilwood 340-11299 Reverse Swing Mount Adjustable Dual Brake & Clutch Pedal Assembly, 6.25:1 Ratio

The Wilwood 340-11299 Reverse Swing Mount Adjustable Dual Pedal Assembly combines brake and clutch controls into a single, high-strength unit. Designed to maximize engine bay clearance, this assembly positions the master cylinders in a reverse orientation inside the firewall. The unit features a lightweight aluminum frame with reinforced I-beam style forged aluminum arms, providing a 6.25:1 pedal ratio for consistent, high-leverage modulation.

• Forged I-Beam Arms: High-strength 6.25:1 ratio arms provide maximum rigidity and reduced flex under heavy pedal loads.
• Adjustable Pedal Pads: Non-skid waffled pads can be adjusted laterally to suit driver ergonomics or specific cabin clearance requirements.
• Precision Balance Bar: Includes a positive detent stop every full turn to maintain bias settings and provide tactile feedback during adjustment.
• Bind-Free Travel: A pin and clevis pushrod attachment system allows for a high degree of misalignment for smooth operation throughout the full range of travel.

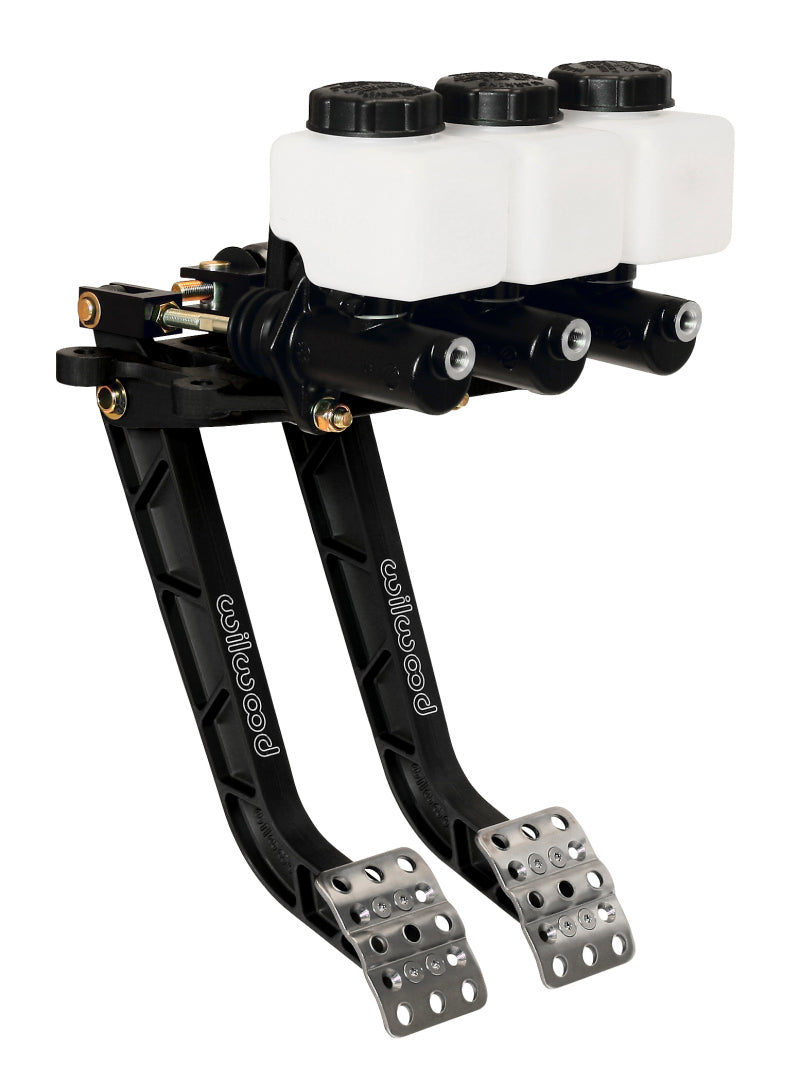

• Master Cylinder Compatibility: Designed for use with Wilwood vertical mount flange single outlet master cylinders (available separately).

The integrated balance bar can be locked with the included jam nut or paired with an optional remote cable for on-track adjustments. Manufacturer Part Number: 340-11299.
