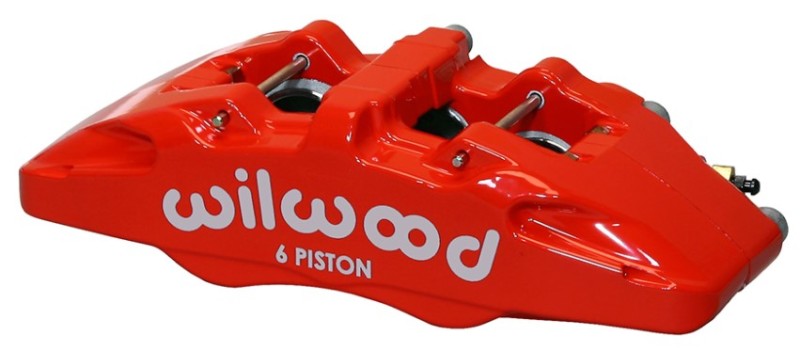

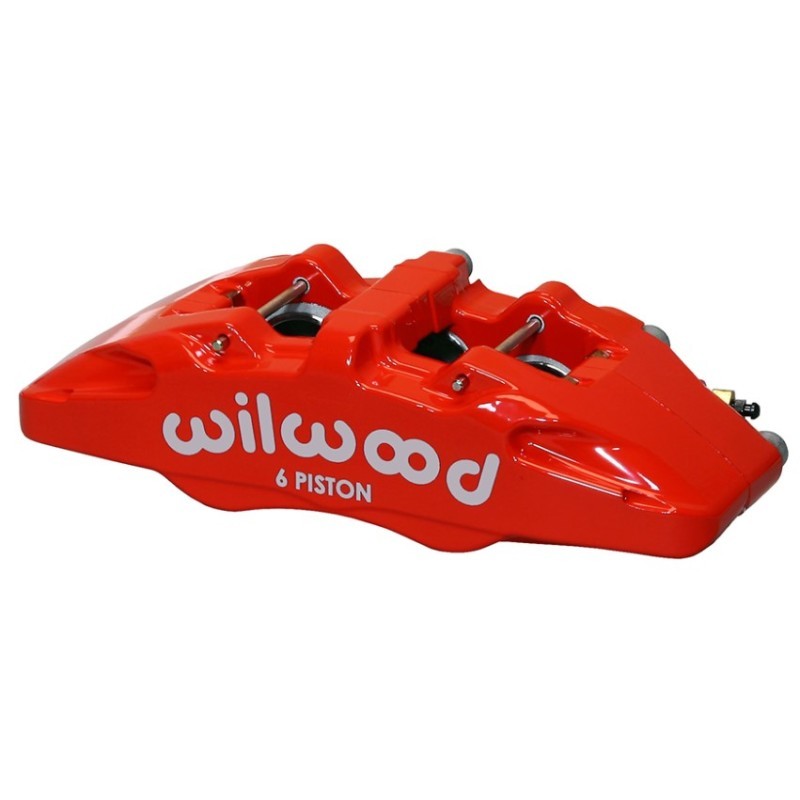

Wilwood DynaPro DP6A Forged 6-Piston Caliper - Red R/H (1.62/1.12/1.12in Pistons, 5.25in Mount, 0.81in Disc)

The Wilwood DynaPro DP6A series (MPN 120-13434-RD) integrates professional racing technology with high-strength construction for custom, show, and competition vehicles. This model features a reinforced triple bridge design secured by five high-strength steel bridge bolts, making it the stiffest DP6 caliper available. It offers a direct interchange for applications currently using 5.25-inch lug mount DynaPro or Dynalite calipers.

Constructed from forged aluminum, this right-hand (R/H) caliper uses a six-piston differential bore configuration with sizes of 1.62, 1.12, and 1.12 inches to ensure even pad loading and consistent wear. The internal components include stainless steel pistons paired with high-temperature seals to manage the thermal demands of aggressive braking cycles.

• Forged aluminum body with a durable Red powder coat finish
• Differential bore six-piston design for optimized pad pressure
• Reinforced triple bridge construction with five bridge bolts
• Mounting: 5.25-inch lug mount pattern
• Rotor Compatibility: 0.81-inch width; up to 13.00-inch diameter
• Piston Sizes: 1.62-inch / 1.12-inch / 1.12-inch
• Stainless steel pistons with high-temperature seals
• Manufacturer Part Number: 120-13434-RD
