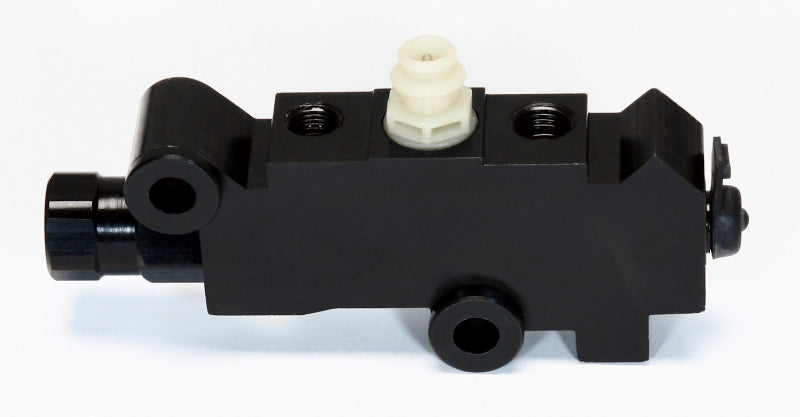

Wilwood 260-11322 GM Style Fixed Proportioning Valve with Delay for Select 1978-Up GM (Disc/Drum)
This product will be available for sale in 2 weeks, but you can pre-order now to receive 10% discount!
Fits select 1978-up General Motors vehicles equipped with front disc and rear drum brake systems.
The Wilwood 260-11322 GM Style Fixed Proportioning Valve is a precision-engineered replacement designed for OE-style mounting. This non-adjustable valve provides essential brake balance by regulating fluid pressure to prevent premature rear-wheel lockup. It includes an integrated anti-dive metering delay valve, which enables rear brake pressure to build momentarily before the front circuit engages, enhancing vehicle stability and improving braking transitions.
- Construction: Manufactured from lightweight aluminum with a durable black anodized finish for corrosion resistance.
- Pressure Regulation: Delivers a 63% pressure reduction to the rear circuit after reaching a 350 PSI knee point.
- Metering Delay: Features a 30 PSI rear-to-front delay circuit to optimize pad-to-rotor and shoe-to-drum engagement.
- Safety Monitoring: Includes a circuit failure sender that activates at 50 ± 10 PSI to notify the driver of hydraulic pressure loss.
- Specifications: Maximum recommended operating pressure of 2000 PSI.
- Installation: Designed to allow direct connection of original brake lines when mounted in the factory location.
