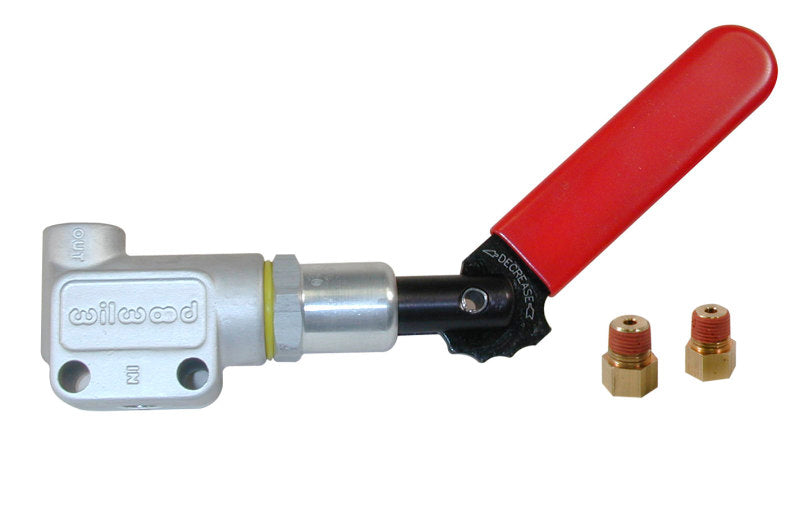

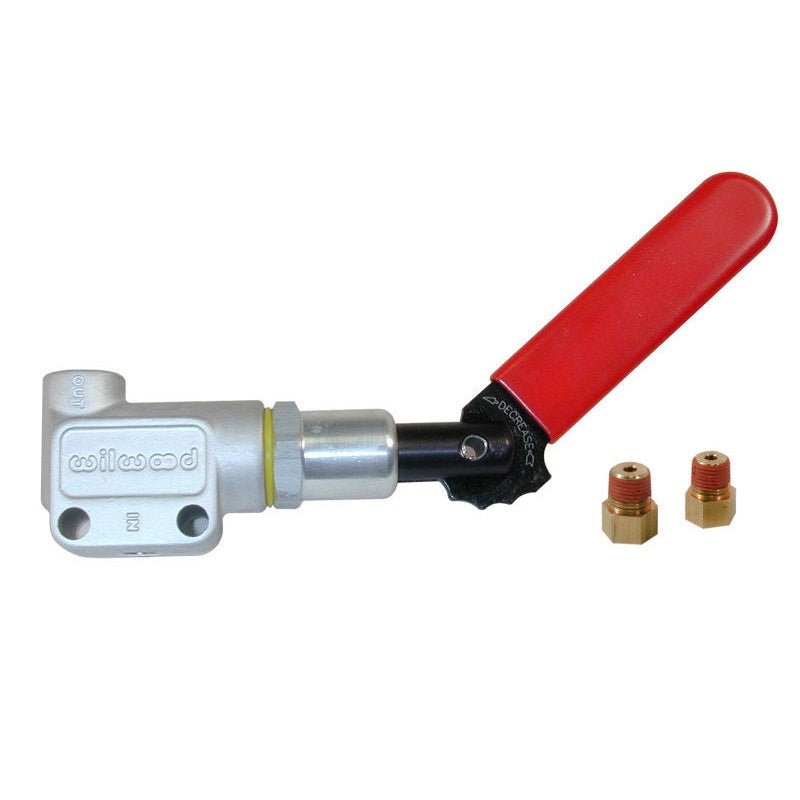

Wilwood 260-8420 Lever-Style Adjustable Brake Proportioning Valve
This product will be available for sale in 2 weeks, but you can pre-order now to receive 10% discount!
The Wilwood 260-8420 Lever-Style Adjustable Proportioning Valve provides racers and performance drivers with precise, repeatable control over rear brake bias. This compact forged billet valve is engineered for strength and reliable pressure metering, replacing vague dial-type adjustments with a positive-engagement lever mechanism.
Designed for quick on-the-fly tuning, the lever "clicks" into six preset positions for immediate feedback. With an adjustment range of 100 to 1,000 PSI, this valve offers a maximum line pressure reduction of 57%, the highest reduction available in a single unit. It is an essential component for balancing braking performance across varying track conditions or load distributions.
- Manufacturer Part Number: 260-8420
- Adjustment Range: 100 - 1,000 PSI
- Pressure Reduction: Up to 57% maximum decrease
- Adjustment Type: 6-position lever with tactile detents
- Construction: Forged billet aluminum
- Weight: 6.1 oz
- Mounting: Side-mount via two 0.25" holes on 1.00" centers
- Inlet/Outlet: 1/8-27 NPT ports
- Included Hardware: Two 1/8-27 NPT to 3/8-24 inverted flare female fittings (compatible with standard 3/16" hard lines)
