Wilwood

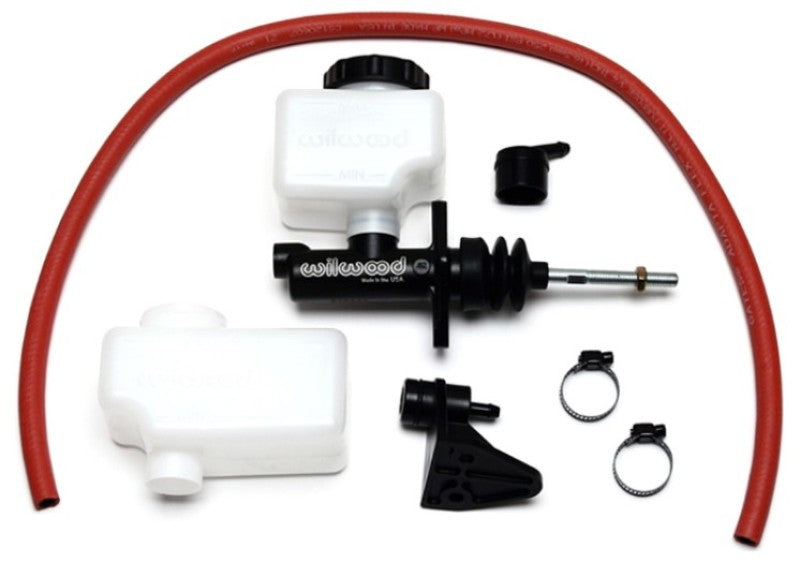

Wilwood Compact Combination Master Cylinder Kit - 13/16in Bore - 3/8in-24 Banjo Outlet - 260-13620
This product will be available for sale in 2 weeks, but you can pre-order now to receive 10% discount!
The Wilwood Compact Combination Master Cylinder Kit (260-13620) is engineered for performance braking applications where engine bay or pedal box space is at a premium. This short-body master cylinder features a 13/16-inch bore and an ultra-compact 3.37-inch body length, providing an additional 2.16 inches of clearance between the mounting flange and fluid outlet compared to standard units. Despite its reduced footprint, it delivers a full 1.12-inch piston stroke to meet or exceed the volume requirements of most performance brake systems.
- Air Management: The 3/8-24 fluid outlet port is strategically located at the top radius of the cylinder bore to prevent air entrapment and simplify the bleeding process.
- Premium Construction: The aluminum body is finished with a black E-coat for long-lasting corrosion resistance and durability.
- Inlet Versatility: The enhanced fluid inlet port accommodates the included standard reservoir or custom arrangements via 11/16-20 internal threads.
- Part Number: 260-13620
- Bore Size: 13/16 in
- Piston Stroke: 1.12 in
- Body Length: 3.37 in
- Outlet Thread: 3/8-24 Banjo
- Inlet Thread: 11/16-20
- Finish: Black E-Coat
Choose your Location
-
Atlus
1340 Cobb Dr, Unit 1, Eustis, FL 32736
352-234-4458
Mon – Fri: 8:30 am – 4:30 pm
Sat: 9:00 am – 2:00 pm
Sun: Closed
Product Comparison
How they are Different
|
__ __ |
|
|---|---|
| Description |
Description - __ |
| Rating |
Rating - __ |
| Vendor |
Vendor - __ |
| Color |
Color - __ |
|
|
Compare products ( / )
The Atlus Price Guarantee
If you can find the part for a lower price from an authorized dealer/shop, we'll match the price! Reach out to Hello@AtlusAuto.com, our live chat located at the bottom right of your screen, or request an Atlas Price Guarantee, or visit our dedicated APG page to submit a request.

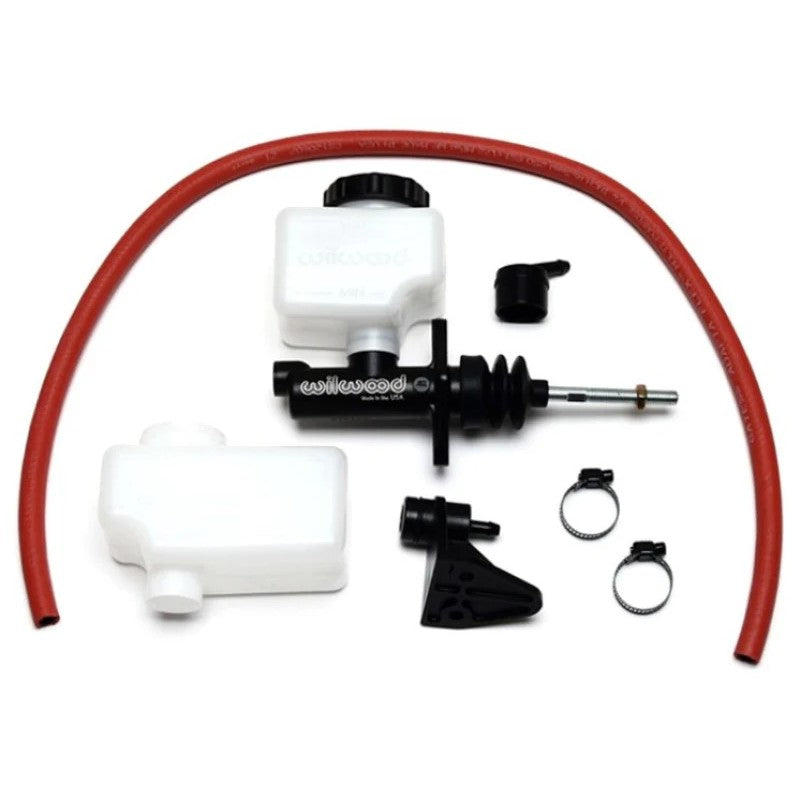

Wilwood Compact Combination Master Cylinder Kit - 13/16in Bore - 3/8in-24 Banjo Outlet - 260-13620
Note: Images are for illustrative purposes only. The actual product may vary in appearance or contents. Please read the full description and verify the item you're receiving.
This product will be available soon, but you can pre-order now to get on the list before others!
US Based Support - In Florida
30 Days Satisfaction Guarantee
Price Match
If you can find the part for a lower price from an authorized dealer/shop, we'll match the price! Reach out to Hello@AtlusAuto.com, our live chat located at the bottom of your screen, or request an Atlas Price Guarantee, or visit our dedicated APG page to submit a request.
Easy Financing
We've partnered up with Affirm/Shop!
Why use Affirm/Shop?
- Clear application process
- Friendly support team
- Spread a big payment interest-free
- Ability to buy what you want
How does it work?
- Add your purchase to cart
- Select Shop Payments at checkout
- Complete the application
- Compare any available finance options
Share:
The Wilwood Compact Combination Master Cylinder Kit (260-13620) is engineered for performance braking applications where engine bay or pedal box space is at a premium. This short-body master cylinder features a 13/16-inch bore and an ultra-compact 3.37-inch body length, providing an additional 2.16 inches of clearance between the mounting flange and fluid outlet compared to standard units. Despite its reduced footprint, it delivers a full 1.12-inch piston stroke to meet or exceed the volume requirements of most performance brake systems.
- Air Management: The 3/8-24 fluid outlet port is strategically located at the top radius of the cylinder bore to prevent air entrapment and simplify the bleeding process.
- Premium Construction: The aluminum body is finished with a black E-coat for long-lasting corrosion resistance and durability.
- Inlet Versatility: The enhanced fluid inlet port accommodates the included standard reservoir or custom arrangements via 11/16-20 internal threads.
- Part Number: 260-13620
- Bore Size: 13/16 in
- Piston Stroke: 1.12 in
- Body Length: 3.37 in
- Outlet Thread: 3/8-24 Banjo
- Inlet Thread: 11/16-20
- Finish: Black E-Coat
